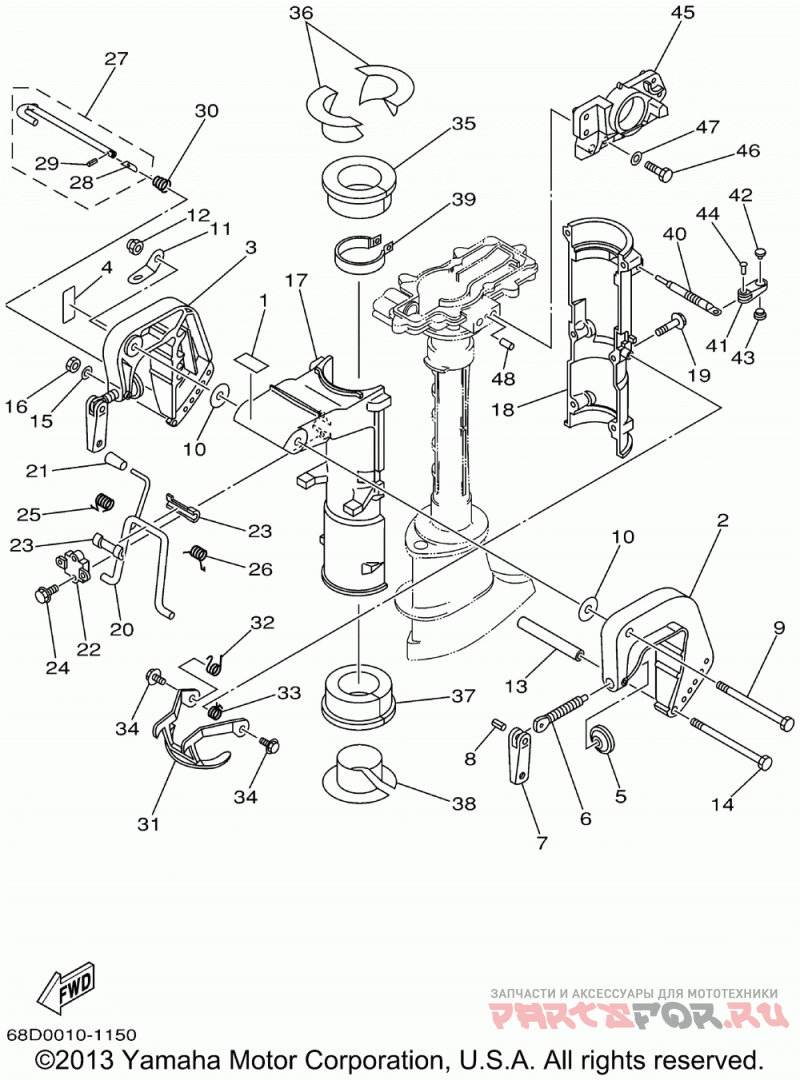

Кронштейн крепления к транцу

Yamaha F4MSHA/F4MLHA

Yamaha
#oem кодцена
1
67D-24591-01-00
Emblem, Fuel Cock (f4)
2
6E0-43111-02-4D
Bracket, Clamp (f4)
2
6E0-43111-02-4D
Bracket, Clamp (f4)
3
6E0-43112-01-4D
Bracket, Clamp (f4)
3
6E0-43112-01-4D
Bracket, Clamp (f4)
4
6M0-G3318-00-00
Cover (f4)
4
6M0-G3318-00-00
Cover (f4)
5
648-43114-01-00
Pad, Transom Clamp (f4)
5
648-43114-01-00
Pad, Transom Clamp (f4)
6
6E0-43116-01-00
Screw, Transom Clam (f4)
6
6E0-43116-01-00
Screw, Transom Clam (f4)
7
6L8-G3118-01-00
Handle, Transom Clp (f4)
7
6L8-G3118-01-00
Handle, Transom Clp (f4)
8
90243-04M01-00
Pin (f4)
8
90243-04M01-00
Pin (f4)
9
90101-08M07-00
Bolt (f4)
9
90101-08M07-00
Bolt (f4)
10
90202-08M58-00
Washer, Plate (f4)
10
90202-08M58-00
Washer, Plate (f4)
11
6A1-43113-01-00
Plate, Clamp Brk (f4)
11
6A1-43113-01-00
Plate, Clamp Brk (f4)
12
95780-08300-00
Nut Self-locking (f4)
12
95780-08300-00
Nut Self-locking (f4)
13
90387-06M11-00
Collar (f4)
13
90387-06M11-00
Collar (f4)
14
90101-06335-00
Bolt (f4)
14
90101-06335-00
Bolt (f4)
15
92990-06600-00
Washer (f4) (5 Per Pack)
15
92990-06600-00
Washer (f4) (5 Per Pack)
16
95380-06600-00
Nut (f4) (5 Per Pack)
16
95380-06600-00
Nut (f4) (5 Per Pack)
17
68D-G3311-01-4D
Bracket, Swivel 1 (f4)
17
68D-G3311-01-4D
Bracket, Swivel 1 (f4)
18
68D-G3312-01-4D
Bracket, Swivel 2 (f4)
18
68D-G3312-01-4D
Bracket, Swivel 2 (f4)
19
95895-06035-00
Bolt (f4)
19
95895-06035-00
Bolt (f4)
20
6E0-43181-00-00
Lever, Tilt Stop (f4)
20
6E0-43181-00-00
Lever, Tilt Stop (f4)
21
6E0-43632-00-00
Knob, Tilt (f4)
21
6E0-43632-00-00
Knob, Tilt (f4)
22
6E0-43313-00-94
Bracket, Swivel 3 (f4)
22
6E0-43313-00-94
Bracket, Swivel 3 (f4)
23
620-43189-00-00
Bushing (f4)
23
620-43189-00-00
Bushing (f4)
24
95895-06020-00
Bolt (f4)
24
95895-06020-00
Bolt (f4)
25
90508-16020-00
Spring, Torsion (f4)
25
90508-16020-00
Spring, Torsion (f4)
26
90508-16021-00
Spring, Torsion (f4)
26
90508-16021-00
Spring, Torsion (f4)
27
6E0-43160-01-00
Tilt Rod Assy (f4)
27
6E0-43160-01-00
Tilt Rod Assy (f4)
28
6N0-G3165-00-00
Plate, Tilt Lock (f4)
28
6N0-G3165-00-00
Plate, Tilt Lock (f4)
29
91690-30008-00
Pin, Spring (f4)
29
91690-30008-00
Pin, Spring (f4)
30
90502-08M05-00
Spring, Conical (f4)
30
90502-08M05-00
Spring, Conical (f4)
31
6E0-43614-00-CA
Plate, Tilt Lock (f4)
31
6E0-43614-00-CA
Plate, Tilt Lock (f4)
32
90508-14M10-00
Spring, Torsion (f4)
32
90508-14M10-00
Spring, Torsion (f4)
33
90508-14M11-00
Spring, Torsion (f4)
33
90508-14M11-00
Spring, Torsion (f4)
34
95895-06010-00
Bolt (f4)
34
95895-06010-00
Bolt (f4)
35
68D-G2537-00-00
Bushing, Pivot Sha (f4)
35
68D-G2537-00-00
Bushing, Pivot Sha (f4)
36
68D-G2539-00-00
Bushing, Pivot Sha (f4)
36
68D-G2539-00-00
Bushing, Pivot Sha (f4)
37
68D-G2538-00-00
Bushing, Pivot Sha (f4)
37
68D-G2538-00-00
Bushing, Pivot Sha (f4)
38
68D-G2549-00-00
Bushing, Pivot Sha (f4)
38
68D-G2549-00-00
Bushing, Pivot Sha (f4)
39
6E0-42528-03-00
Piece, Friction (f4)
39
6E0-42528-03-00
Piece, Friction (f4)
40
6L5-42529-01-00
Screw, Friction Pi (f4)
40
6L5-42529-01-00
Screw, Friction Pi (f4)
41
6L5-42561-00-00
Knob, Steering Lock (f4)
41
6L5-42561-00-00
Knob, Steering Lock (f4)
42
6L5-44196-00-00
Индикатор
42
6L5-44196-00-00
Индикатор
43
6L5-44197-00-00
Индикатор
43
6L5-44197-00-00
Индикатор
44
90266-04M05-00
Rivet (6l5) (f4)
44
90266-04M05-00
Rivet (6l5) (f4)
45
68D-G2511-00-4D
Bracket, Steering (f4)
45
68D-G2511-00-4D
Bracket, Steering (f4)
46
97080-08030-00
Bolt (f4)
47
92990-08600-00
Washer (f4) (5 Per Pack)
47
92990-08600-00
Washer (f4) (5 Per Pack)
48
93604-10M03-00
Pin, Dowel (f4) (5 Per Pack)
48
93604-10M03-00
Pin, Dowel (f4) (5 Per Pack)
