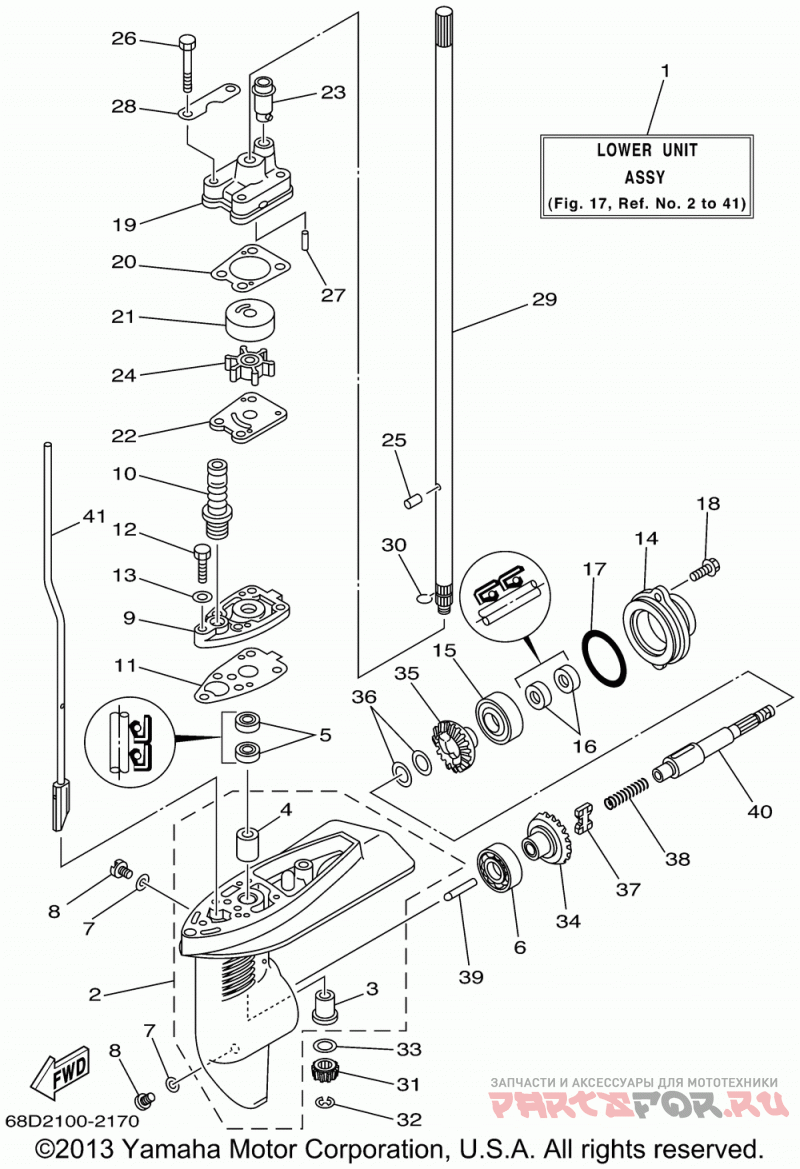

Корпус редуктора 1

Yamaha F4MSHA/F4MLHA

Yamaha
#oem кодцена
1
68D-G5300-01-4D
Lower Unit Assy S(f4)
1
68D-G5300-11-4D
Lower Unit Assy L(f4)
2
6E0-45311-02-4D
Casing, Lower (f4)
3
6E0-45317-09-00
Bush, Drive Shaft (f4)
4
6E0-45316-09-00
Bushing, Dr. Shaft (f4)
5
93101-10M14-00
Oil Seal, S-type (f4)
6
93306-00423-00
Bearing (f4)
7
90430-08020-00
Gasket (f4) (10 Per Pack)
8
90340-08002-00
Plug, Straight Screw (f4)
9
6E0-45321-01-CA
Plate (f4)
10
6L2-44147-00-00
Boot, Shift Rod (f4)
11
68D-G5315-A0-00
Packing, Lower Casin (f4)
12
90101-06M27-00
Bolt (f4)
13
92990-06600-00
Washer (f4) (5 Per Pack)
14
6E0-45361-01-4D
Cap, Lower Casing (f4)
15
93306-00423-00
Bearing (f4)
16
93101-13M12-00
Oil Seal, S-type (f4)
17
93210-48214-00
O-ring (f4)
18
95895-06016-00
Bolt (f4)
19
68D-G4311-01-00
Housing, Water Pump (f4)
20
6BX-G4315-01-00
Gasket, Water Pump (f4)
21
6E0-44322-02-00
Insert Cartridge (f4)
22
6E0-44323-00-00
Outer Plate, Cart. (f4)
23
67D-44366-00-00
Damper, Water Seal (f4)
24
6E0-44352-00-00
Impeller (f4)
25
93604-09066-00
Pin, Dowel (f4)
26
97080-06045-00
Bolt (6g8) (f4)
27
93604-18080-00
Pin, Dowel (f4)
29
6E0-45511-01-00
Shaft, Drive S(f4)
29
6E0-45511-11-00
Shaft, Drive L(f4)
30
90467-08M01-00
Clip, Scissor (f4)
31
6E0-45551-00-00
Pinion (13t) (f4)
32
99001-06600-00
Circlip (f4) (5 Per Pack)
33
90201-11M49-00
Washer, Plate (f4)
34
67D-45560-00-00
Gear (27t) (f4)
35
67D-45570-00-00
Gear 2 (27t) (27t) (f4)
36
67D-45576-00-00
Washer, Thrust (f4)
37
67D-45631-01-00
Clutch, Dog (f4)
38
90501-10064-00
Spring, Compression (f4)
39
67D-45635-00-00
Plunger, Shift (f4)
40
68D-G5611-10-00
Shaft, Propeller (f4)
41
68D-G4150-00-00
Shift Cam Assy S(f4)
41
68D-G4150-10-00
Shift Cam Assy L(f4)
