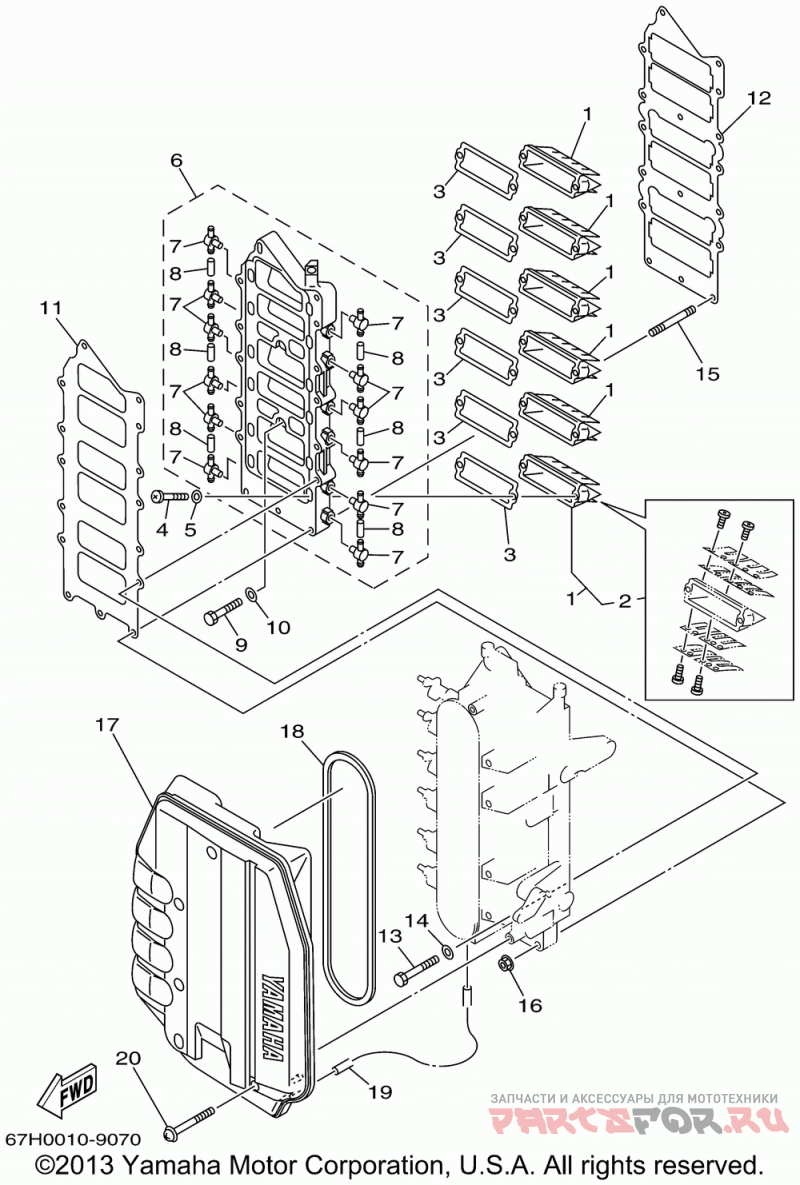

Впускная система

Yamaha DX150TLRA

Yamaha
#oem кодцена
1
65L-13610-01-00
Reed Valve Asy (67n1)
2
65J-W0004-01-00
Reed Set (67n1)
3
61A-13621-A0-00
Gasket, Valve Seat (67n1)
4
97885-05016-00
Screw, Pan Head (67n1)
4
97885-05016-00
Screw, Pan Head (67n1)
5
92990-05600-00
Washer (67n1) (5 Per Pack)
5
92990-05600-00
Washer (67n1) (5 Per Pack)
6
65L-13624-01-1S
Plate, Reed Valve (67n1)
6
65L-13624-01-1S
Plate, Reed Valve (67n1)
7
6F6-11372-01-00
Nipple, Hose (67n1)
7
6F6-11372-01-00
Nipple, Hose (67n1)
8
90445-07MA3-00
Hose (l200) (l34) (67n1)
8
90445-07MA3-00
Hose (l200) (l34) (67n1)
9
97013-06030-00
Bolt (67n1)
9
97013-06030-00
Bolt (67n1)
10
92990-06600-00
Washer (67n1) (5 Per Pack)
10
92990-06600-00
Washer (67n1) (5 Per Pack)
11
65L-13646-00-00
Gasket, Manifold 2 (67n1)
11
65L-13646-00-00
Gasket, Manifold 2 (67n1)
12
65L-13645-00-00
Gasket, Manifold 1 (67n1)
12
65L-13645-00-00
Gasket, Manifold 1 (67n1)
13
97013-06060-00
Bolt, Hex (67n1)
13
97013-06060-00
Bolt, Hex (67n1)
14
92990-06600-00
Washer (67n1) (5 Per Pack)
14
92990-06600-00
Washer (67n1) (5 Per Pack)
15
95670-06655-00
Bolt, Stud (67n1)
15
95670-06655-00
Bolt, Stud (67n1)
16
90179-06M24-00
Nut, Spec'l Shape (67n1) (5 Per Pack)
16
90179-06M24-00
Nut, Spec'l Shape (67n1) (5 Per Pack)
17
67H-14440-00-00
Silencer Assy, Int (67n1)
17
67H-14440-00-00
Silencer Assy, Int (67n1)
18
65L-14483-00-00
Gasket (67n1)
18
65L-14483-00-00
Gasket (67n1)
19
90445-07M90-00
Hose (l250) (67n1)
19
90445-07M90-00
Hose (l250) (67n1)
20
90159-06M16-00
Screw, W/washer (67n1) (5 Per Pack)
20
90159-06M16-00
Screw, W/washer (67n1) (5 Per Pack)
