Управление

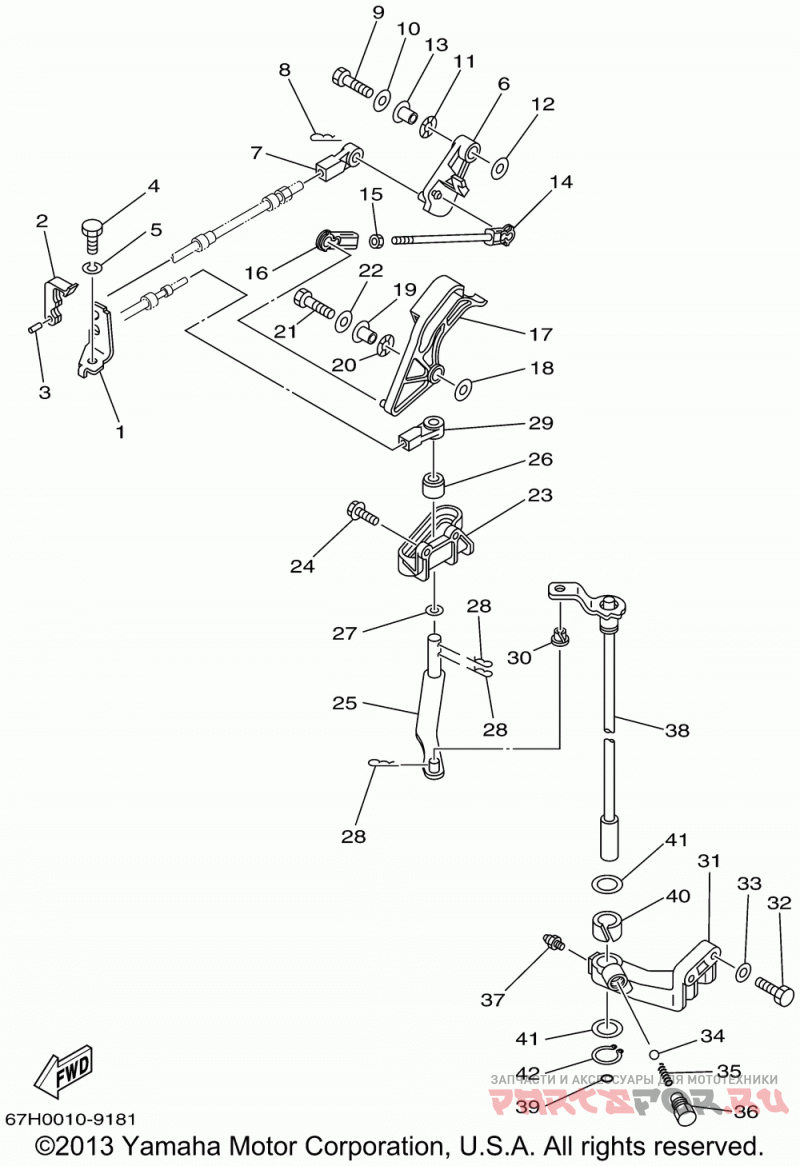

Yamaha DX150TLRA

Yamaha
#oem кодцена
1
67H-48531-00-00
Bracket, Remote Con (67n1)
2
663-48538-00-00
Clamp, Cable (67n1)
3
91690-30010-00
Pin, Spring (67n1)
4
97095-08016-00
Bolt (67n1)
5
92990-08100-00
Washer, Spring (67n1)
6
67H-41632-00-00
Lever, Magneto Con (67n1)
7
6E5-48344-00-00
Cable End, Rem.cntl (67n1)
8
90468-18008-00
Clip (67n1)
9
97013-06030-00
Bolt (67n1)
10
92990-06600-00
Washer (67n1) (5 Per Pack)
11
90206-10M04-00
Washer, Wave (67n1)
12
90201-06M31-00
Washer, Plate (67n1)
13
90387-06M29-00
Collar (67n1)
14
61A-41237-00-00
Joint, Link 2 (67n1)
15
95380-05600-00
Nut (67n1) (5 Per Pack)
16
682-41237-00-00
Joint, Link 2 (67n1)
17
67H-41213-01-00
Cam, Accel. (67n1)
18
90201-06M31-00
Washer, Plate (67n1)
19
90387-06M29-00
Collar (67n1)
20
90206-10M04-00
Washer, Wave (67n1)
21
97013-06030-00
Bolt (67n1)
22
92990-06600-00
Washer (67n1) (5 Per Pack)
23
6E5-44117-00-94
Bracket 1 (67n1)
24
90119-06MA2-00
Bolt, With Washer (67n1)
25
68F-44121-00-00
Lever, Shift Rod (67n1)
26
6E5-44122-00-00
Bushing, Shft.rod (67n1)
27
90202-08M20-00
Washer, Plate (67n1)
28
90468-18008-00
Clip (67n1)
29
6E5-48344-00-00
Cable End, Rem.cntl (67n1)
30
90386-06M12-00
Bush, Spec'l Nylon (67n1)
31
6E5-44118-01-94
Bracket 2 (67n1)
32
97013-08030-00
Bolt (661) (67n1)
33
92990-08600-00
Washer (67n1) (5 Per Pack)
34
93501-04M02-00
Ball 1/4 (67n1) (5 Per Pack)
35
90501-12082-00
Spring, Compression (67n1)
36
648-42715-00-00
Bushing 2 (67n1)
37
93700-06M03-00
Nipple, Grease (67n1)
38
6E5-44120-03-00
Hdl.gear Shft L(67n1)
39
93210-09350-00
O-ring (67n1)
40
90386-16M66-00
Bush(6e5) (67n1) (5 Per Pack)
41
90202-16061-00
Washer, Plate (67n1)
42
99009-16400-00
Circlip, S-type (67n1)
