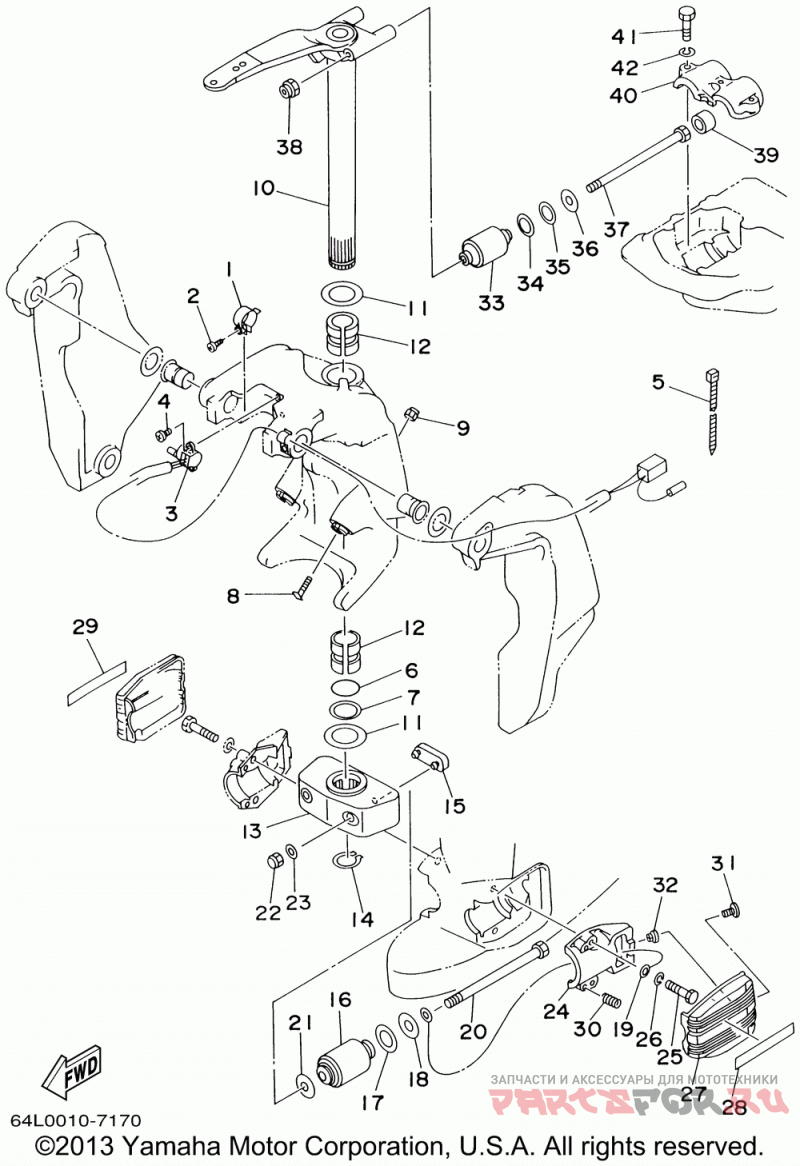

Крепление 2

Yamaha DX150TLRA

Yamaha
#oem кодцена
1
99999-03830-00
Cam, Trim Sender (wi (67n1)
2
97780-60625-00
Screw, Tapping (67n1) (5 Per Pack)
3
64E-83672-03-00
Trim Sender (67n1)
4
98580-06016-00
Screw, Pan Head (67n1)
5
90465-10098-00
Clamp (67n1)
6
93210-37MH7-00
O-ring (67n1)
7
90202-40M47-00
Washer, Plate (67n1)
8
61A-43376-00-00
Bolt, Thrust Recvr. (67n1)
9
95780-10300-00
Nut, Self-locking (67n1)
10
6E5-42510-C0-8D
Steering Bracket Ass L(67n1)
11
90201-38M60-00
Washer, Plate (67n1)
12
90386-38M89-00
Bush (67n1)
13
6G5-44551-01-8D
Housing, Lwr, Mount (67n1)
14
93410-37M04-00
Circlip, S-type (67n1)
15
6E5-44575-00-00
Damper, Lwr.mt.rubb (67n1)
16
6J9-44555-00-00
Mount Damper, Lower (67n1)
17
90202-32M19-00
Washer, Plate (67n1)
18
90201-16M55-00
Washer, Plate (67n1)
19
6E5-82149-00-00
Wire, Lead 3 (67n1)
20
90109-14M34-00
Bolt (67n1)
21
90201-15M58-00
Washer, Plate (67n1)
22
95380-14800-00
Nut(crown) (67n1)
23
92990-14600-00
Washer (67n1)
24
6E5-44552-01-CA
Housing, Lower Mount (67n1)
25
97095-10045-00
Bolt (67n1)
26
92990-10100-00
Washer, Spring (67n1) (5 Per Pack)
27
6J9-44553-01-NA
Cover, Lwr.mount (67n1)
28
65N-43155-N0-00
Mark 1 (67n1)
29
65N-43156-N0-00
Mark 2 (67n1)
30
90501-16M28-00
Spring, Compression (67n1)
31
90157-06M05-00
Screw, Pan Head (67n1)
32
90179-06066-00
Nut, Spec'l Shape (67n1)
33
6J9-44514-00-00
Mount Damper, Upper (67n1)
34
90201-26M57-00
Washer, Plate (67n1)
35
90202-26M18-00
Washer, Plate (67n1)
36
90201-14M56-00
Washer, Plate (67n1)
37
90109-12007-00
Bolt (67n1)
38
90185-12M12-00
Nut, Self-locking (67n1)
39
663-44575-00-00
Damper, Lwr.mt.rubb (67n1)
40
6E5-44511-00-94
Cover, Upper Mount (67n1)
41
97095-10045-00
Bolt (67n1)
42
92990-10100-00
Washer, Spring (67n1) (5 Per Pack)
