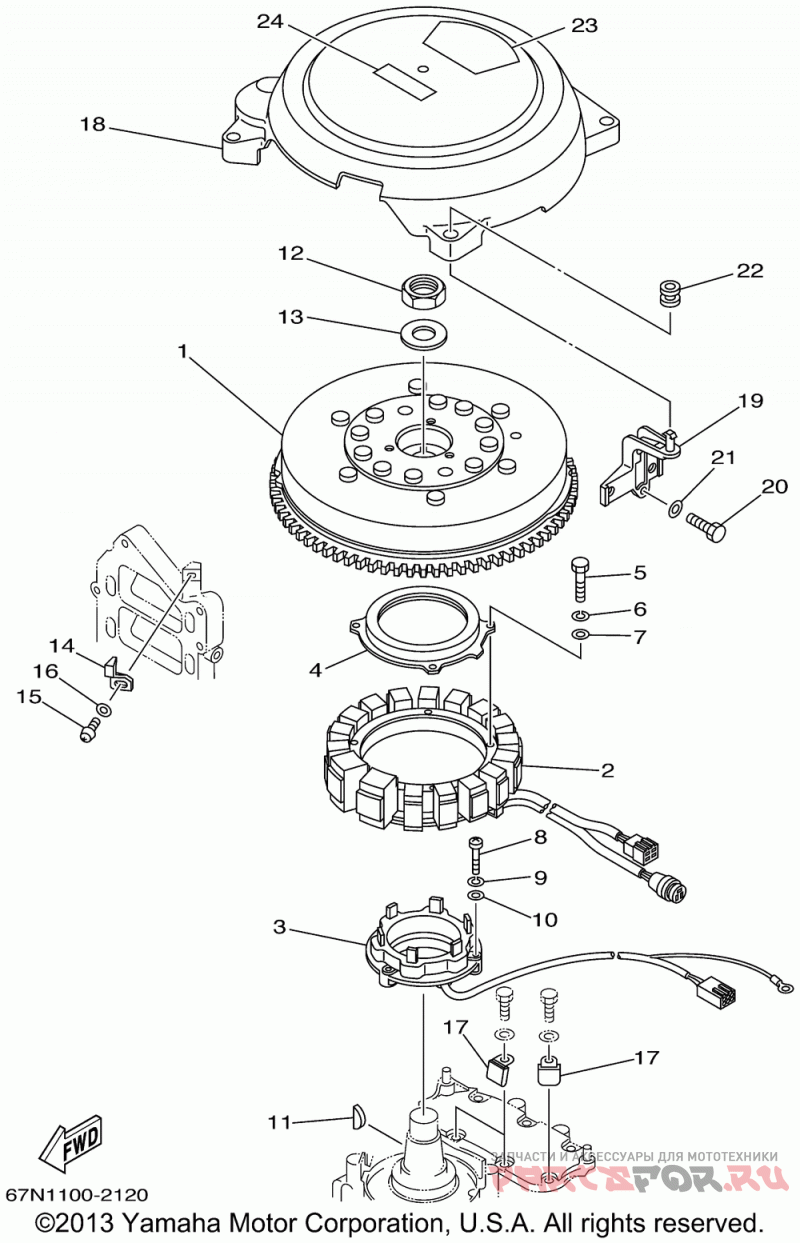

Генератор

Yamaha DX150TLRA

Yamaha
#oem кодцена
1
67H-85550-00-00
Rotor Assy (67n1)
2
65L-85510-10-00
Stator Assy (67n1)
2
65L-85510-10-00
Stator Assy (67n1)
3
61A-85580-01-00
Coil, Pulser (67n1)
3
61A-85580-01-00
Coil, Pulser (67n1)
4
61A-83721-00-00
Cover (67n1)
4
61A-83721-00-00
Cover (67n1)
5
97014-06035-00
Bolt(3rv) (67n1)
6
92995-06100-00
Washer (67n1) (5 Per Pack)
6
92995-06100-00
Washer (67n1) (5 Per Pack)
7
92990-06600-00
Washer (67n1) (5 Per Pack)
7
92990-06600-00
Washer (67n1) (5 Per Pack)
8
98580-05530-00
Screw, Pan Head (67n1)
8
98580-05530-00
Screw, Pan Head (67n1)
9
92990-05100-00
Washer, Spring (67n1) (5 Per Pack)
9
92990-05100-00
Washer, Spring (67n1) (5 Per Pack)
10
92990-05600-00
Washer (67n1) (5 Per Pack)
10
92990-05600-00
Washer (67n1) (5 Per Pack)
11
90280-05049-00
Key, Woodruff (67n1)
11
90280-05049-00
Key, Woodruff (67n1)
12
90170-24M22-00
Nut, Hexagon (67n1)
12
90170-24M22-00
Nut, Hexagon (67n1)
13
90201-25M02-00
Washer, Plate (67n1)
13
90201-25M02-00
Washer, Plate (67n1)
14
6E5-81332-00-00
Plate, Timing (67n1)
14
6E5-81332-00-00
Plate, Timing (67n1)
15
97985-06210-00
Screw, Pan Head W/w (67n1) (5 Per Pack)
15
97985-06210-00
Screw, Pan Head W/w (67n1) (5 Per Pack)
16
92990-06600-00
Washer (67n1) (5 Per Pack)
16
92990-06600-00
Washer (67n1) (5 Per Pack)
17
90465-06M84-00
Clamp (67n1)
17
90465-06M84-00
Clamp (67n1)
18
67H-81337-00-00
Cover, Flywheel (67n1)
18
67H-81337-00-00
Cover, Flywheel (67n1)
19
65L-81338-00-1S
Clamp, Lead (67n1)
19
65L-81338-00-1S
Clamp, Lead (67n1)
20
97013-06025-00
Bolt (661) (67n1)
20
97013-06025-00
Bolt (661) (67n1)
21
92990-06600-00
Washer (67n1) (5 Per Pack)
21
92990-06600-00
Washer (67n1) (5 Per Pack)
22
663-82317-01-00
Damper, Ign Coil (67n1)
22
663-82317-01-00
Damper, Ign Coil (67n1)
23
67H-14488-00-00
Label, Caution (67n1)
23
67H-14488-00-00
Label, Caution (67n1)
24
6A1-83625-41-00
Mark 5 (67n1)
24
6A1-83625-41-00
Mark 5 (67n1)
