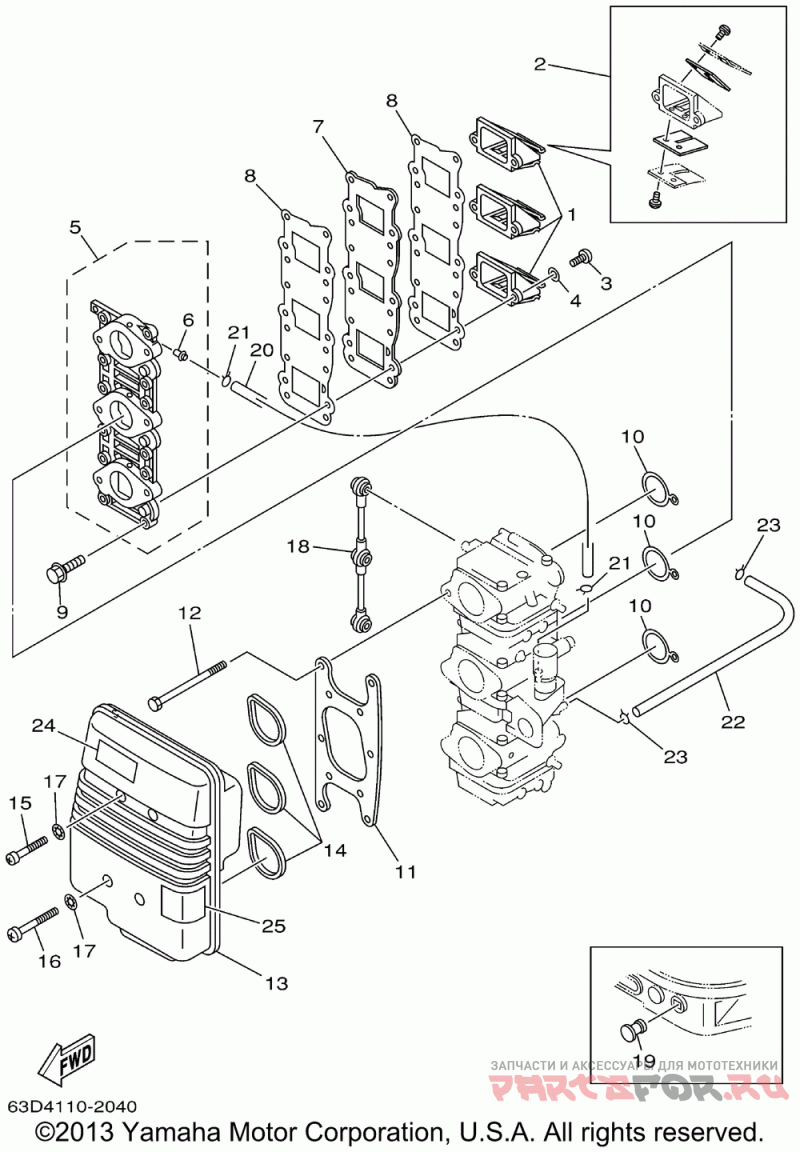

Впускная система

Yamaha C40TLRA

Yamaha
#oem кодцена
1
6H5-13610-00-00
Reed Valve Asy (c40)
2
6H4-W0004-00-00
Reed Set (c40)
3
98580-05014-00
Screw, Pan Head (c40) (5 Per Pack)
4
92990-05600-00
Washer (c40) (5 Per Pack)
5
6H4-13641-02-00
Manifold 1 (c40)
6
6H1-14485-00-00
Pipe, Joint (c40)
6
6H1-14485-00-00
Pipe, Joint (c40)
7
6H4-13624-01-00
Plate, Reed Valve (c40)
7
6H4-13624-01-00
Plate, Reed Valve (c40)
8
6H4-13621-A1-00
Gasket, Valve Seat (c40)
8
6H4-13621-A1-00
Gasket, Valve Seat (c40)
9
90119-06MA2-00
Bolt, With Washer (c40)
9
90119-06MA2-00
Bolt, With Washer (c40)
10
6H4-14198-01-00
Gasket (c40)
10
6H4-14198-01-00
Gasket (c40)
11
6H4-14406-00-00
Hinge (c40)
12
97095-06095-00
Bolt (6g8) (c40)
12
97095-06095-00
Bolt (6g8) (c40)
13
6H4-14431-02-00
Silencer, Intake 1 (c40)
13
6H4-14431-02-00
Silencer, Intake 1 (c40)
14
6H3-14457-01-00
Seal (c40)
14
6H3-14457-01-00
Seal (c40)
15
97885-06040-00
Screw, Pan Head (c40)
15
97885-06040-00
Screw, Pan Head (c40)
16
98580-06555-00
Screw, Panhead (c40)
16
98580-06555-00
Screw, Panhead (c40)
17
90209-06M05-00
Washer, Spec'l Shap (c40)
17
90209-06M05-00
Washer, Spec'l Shap (c40)
18
6H4-41217-01-00
Rod, Accel.lever (c40)
18
6H4-41217-01-00
Rod, Accel.lever (c40)
19
6G1-42748-00-00
Grommet (c40)
19
6G1-42748-00-00
Grommet (c40)
20
90445-07MA3-00
Hose (l200) (l150) (c40)
20
90445-07MA3-00
Hose (l200) (l150) (c40)
21
90467-06016-00
Clip, Scissor (c40)
21
90467-06016-00
Clip, Scissor (c40)
22
6H3-14349-00-00
Pipe (c40)
22
6H3-14349-00-00
Pipe (c40)
23
90467-08004-00
Clip, Scissor (c40)
23
90467-08004-00
Clip, Scissor (c40)
24
6A1-83625-41-00
Mark 5 (c40)
24
6A1-83625-41-00
Mark 5 (c40)
25
6H1-85711-60-00
Mark, Caution (c40)
25
6H1-85711-60-00
Mark, Caution (c40)
