Ремонтные комплекты 2

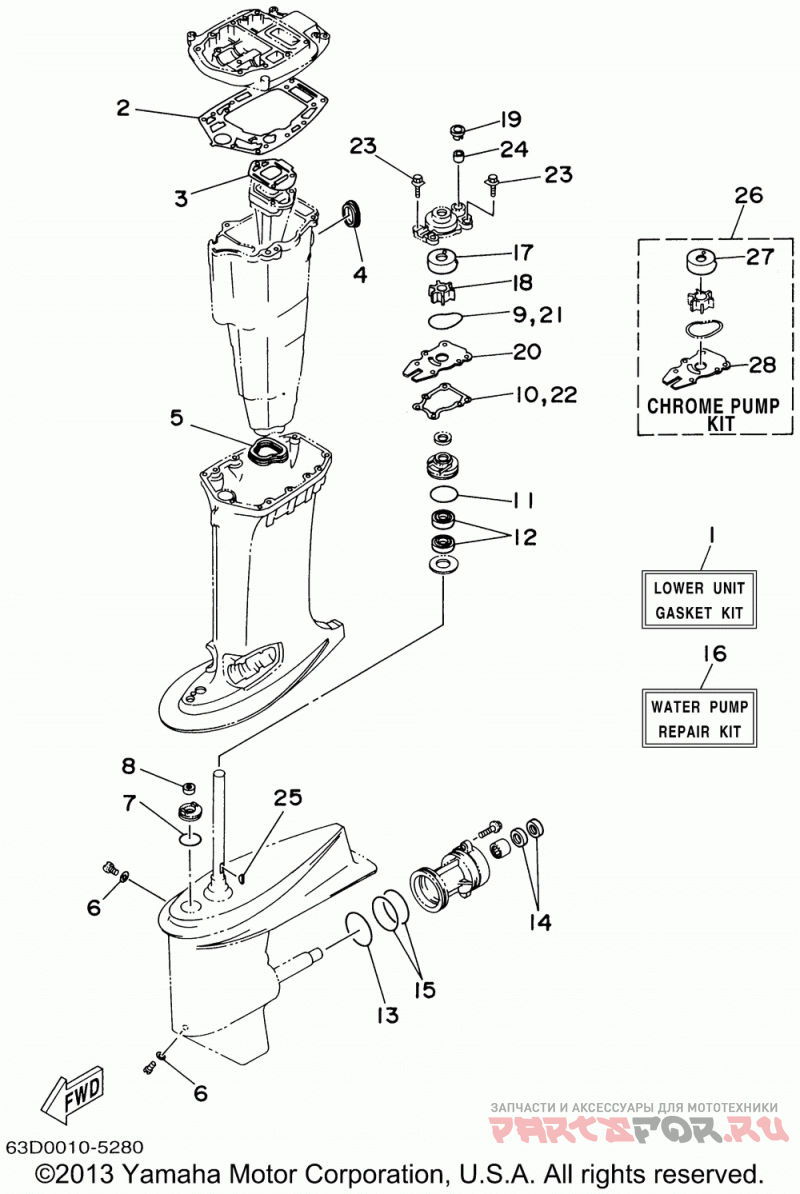

Yamaha C40TLRA

Yamaha
#oem кодцена
1
63D-W0001-20-00
Lower Unit Gskt.kt (c40)
1
63D-W0001-20-00
Lower Unit Gskt.kt (c40)
2
63D-45114-A0-00
Gasket, Upper Casng (c40)
2
63D-45114-A0-00
Gasket, Upper Casng (c40)
3
6H4-41134-A0-00
Gasket, Exh.mani.2 (c40)
3
6H4-41134-A0-00
Gasket, Exh.mani.2 (c40)
4
6H3-45127-00-00
Seal (c40)
4
6H3-45127-00-00
Seal (c40)
5
63D-45123-00-00
Gasket, Muffler (c40)
5
63D-45123-00-00
Gasket, Muffler (c40)
6
90430-08020-00
Gasket (c40) (10 Per Pack)
6
90430-08020-00
Gasket (c40) (10 Per Pack)
7
93210-33MG4-00
O-ring (c40)
7
93210-33MG4-00
O-ring (c40)
8
93106-09014-00
Oil Seal, Dd-type (c40)
8
93106-09014-00
Oil Seal, Dd-type (c40)
9
93210-59MG7-00
O-ring (c40)
9
93210-59MG7-00
O-ring (c40)
10
63D-44316-00-00
Gasket, Water Pump (c40)
10
63D-44316-00-00
Gasket, Water Pump (c40)
11
93210-48MG8-00
O-ring (c40)
11
93210-48MG8-00
O-ring (c40)
12
93101-25M57-00
Oil Seal, S-type (c40)
12
93101-25M57-00
Oil Seal, S-type (c40)
13
93210-69MG6-00
O-ring (c40)
13
93210-69MG6-00
O-ring (c40)
14
93101-22067-00
Oil Seal, S-type (c40)
14
93101-22067-00
Oil Seal, S-type (c40)
15
93210-74775-00
O-ring (c40)
15
93210-74775-00
O-ring (c40)
16
63D-W0078-01-00
Water Pump Rep.kit (c40)
16
63D-W0078-01-00
Water Pump Rep.kit (c40)
17
63D-44322-00-00
Insert Cartridge (c40)
17
63D-44322-00-00
Insert Cartridge (c40)
18
6H3-44352-00-00
Impeller (c40)
18
6H3-44352-00-00
Impeller (c40)
19
63D-44312-00-00
Cover, Wtr.pump Hsg (c40)
19
63D-44312-00-00
Cover, Wtr.pump Hsg (c40)
20
63D-44323-00-00
Outer Plate, Cart. (c40)
20
63D-44323-00-00
Outer Plate, Cart. (c40)
21
93210-59MG7-00
O-ring (c40)
21
93210-59MG7-00
O-ring (c40)
22
63D-44316-00-00
Gasket, Water Pump (c40)
22
63D-44316-00-00
Gasket, Water Pump (c40)
23
90119-08M15-00
Bolt, W/washer (c40)
23
90119-08M15-00
Bolt, W/washer (c40)
24
663-44366-00-00
Water Seal (c40)
24
663-44366-00-00
Water Seal (c40)
25
90280-03024-00
Key, Woodruff (c40)
25
90280-03024-00
Key, Woodruff (c40)
26
63D-W0078-0A-00
Chrome Pump Kit (c40)
26
63D-W0078-0A-00
Chrome Pump Kit (c40)
27
63D-44322-40-00
Insert, Cartridge (c40)
27
63D-44322-40-00
Insert, Cartridge (c40)
28
63D-44323-40-00
Outer Plate, Cartr. (c40)
28
63D-44323-40-00
Outer Plate, Cartr. (c40)
