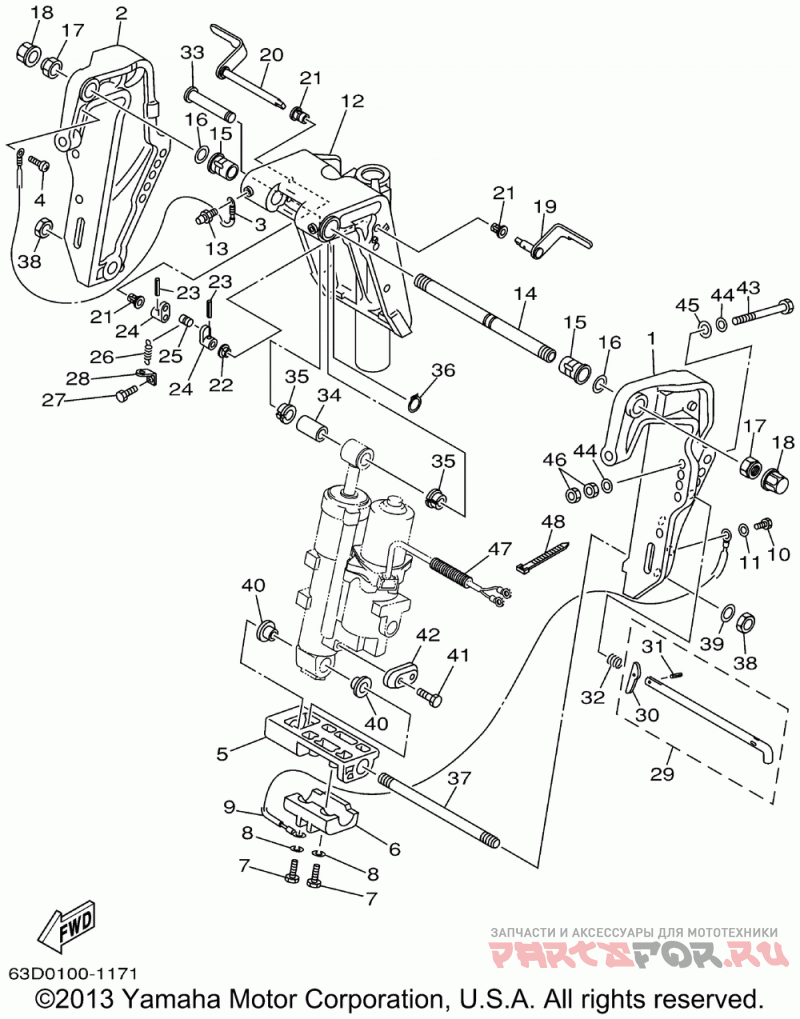

Кронштейн 1

Yamaha C40TLRA

Yamaha
#oem кодцена
1
63D-43111-01-4D
Bracket, Clamp (c40)
2
63D-43112-01-4D
Bracket, Clamp (c40)
3
6E5-82148-00-00
Wire, Lead 4 (c40)
4
97885-06008-00
Screw, Pan Head (c40)
5
63D-43128-01-4D
Spacer, Clamp Brack (c40)
6
63D-45251-01-00
Anode (c40)
7
90101-06M27-00
Bolt (c40)
8
92995-06100-00
Washer (c40) (5 Per Pack)
9
6T4-82117-00-00
Wire, Lead (c40)
10
97085-06010-00
Bolt (c40)
11
92990-06600-00
Washer (c40) (5 Per Pack)
12
63D-43311-13-8D
Bracket, Swivel 1 (c40)
13
93700-06M03-00
Nipple, Grease (c40)
14
63D-43131-01-00
Bolt, Clamp Bracket (c40)
15
90386-22M15-00
Bush, Spec'l Nylon (c40)
16
90201-22M03-00
Washer, Plate (c40)
17
90185-22007-00
Nut, Self-locking (c40)
18
6G5-43145-01-00
Cap, Clamp Bracket (c40)
19
6H5-43181-03-00
Lever, Tilt Stop (c40)
20
6H5-43185-03-00
Lever, Tilt Stop 2 (c40)
21
90386-10M16-00
Bush, Spec'l Nylon (c40) (5 Per Pack)
22
90386-10025-00
Bush, Spec'l Nylon (c40)
23
91690-30020-00
Pin, Spring (c40)
24
6G5-43148-00-00
Collar, Distance (c40)
25
90249-06M19-00
Pin, Spec'l Shape (c40)
26
90506-14M24-00
Spring, Tension (c40)
27
97085-06010-00
Bolt (c40)
28
6G5-43144-00-00
Hook, Spring (c40)
29
688-43160-01-00
Tilt Rod Assy (c40)
30
688-43165-00-00
Stopper, Tilt Lock (c40)
31
91690-30012-00
Pin, Spring (c40)
32
90502-16M02-00
Spring, Conical (c40)
33
6E5-43126-02-00
Pin, Upper Shock Mt (c40)
34
90386-18M92-00
Bush, Spec'l Nylon (c40)
35
90386-18M35-00
Bush, Spec'l Nylon (c40)
36
93410-18M05-00
Circlip (c40)
37
90116-18M52-00
Bolt, Stud (c40)
38
90170-18M10-00
Nut, Hexagon (c40)
39
92995-18600-00
Washer (c40)
40
90386-18M44-00
Bush, Spec'l Nylon (c40)
41
90101-06020-00
Bolt (c40)
42
65W-45251-00-00
Anode (c40)
43
90101-12M65-00
Bolt (c40)
44
92990-12200-00
Washer (c40)
45
90201-12426-00
Washer, Plate (c40)
46
95380-12600-00
Nut (c40)
47
90440-14M00-00
Hose (c40)
48
90465-10098-00
Clamp (c40)
