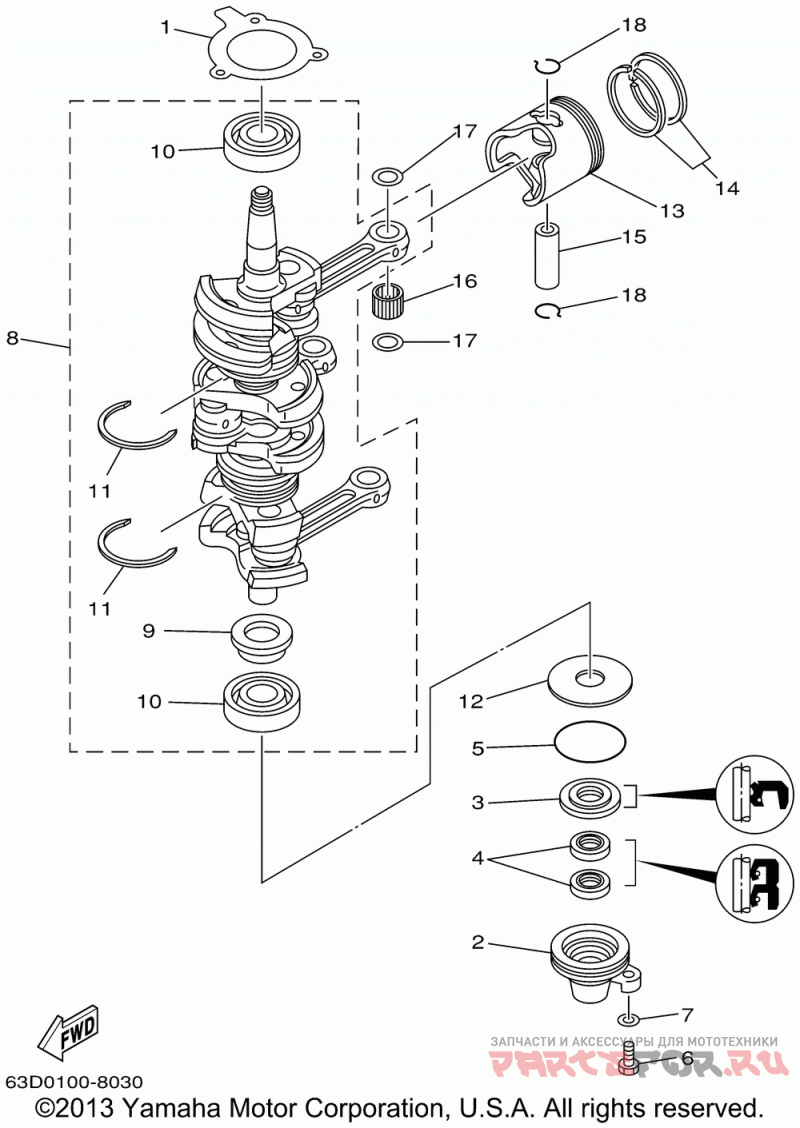

Коленчатый вал и Поршень

Yamaha C40TLRA

Yamaha
#oem кодцена
1
6H4-15369-A1-00
Gasket, O/sl Hsng (c40)
2
6H4-15396-03-CA
Housing, Oil Seal (c40)
3
93102-25M28-00
Oil Seal (c40)
4
93104-16M01-00
Oil Seal, So-type (c40)
5
93210-57M09-00
O-ring (c40)
6
97080-06020-00
Bolt(7u8) (c40) (5 Per Pack)
7
92990-06600-00
Washer (c40) (5 Per Pack)
8
6H4-11400-04-00
Crankshaft Asy. (c40)
9
6H4-11445-00-00
Spacer (c40)
10
93306-305U8-00
Bearing (6h4) (c40)
11
93440-62057-00
Circlip, Outer (c40)
12
90201-50306-00
Washer, Plate (c40)
13
6H4-11635-01-00
Piston 1 O/s 0.25 (0.25mm O/s) Ap(c40)
13
6H4-11631-01-95
Piston Std (std) (c40)
13
6H4-11636-01-00
Piston 2 O/s 0.50 (0.50mm O/s) Ap(c40)
14
63D-11605-00-00
Ringset, Piston 2nd (0.50mm O/s) Ap(c40)
14
63D-11604-00-00
Ringset, Piston 1st (0.25mm O/s) Ap(c40)
14
63D-11603-00-00
Ringset, Piston Std (std) (c40)
15
648-11633-00-00
Pin, Piston (c40)
16
93602-20M02-00
Pin, Roller Bearing (c40) (5 Per Pack)
17
6H4-11641-00-00
Washer, Piston Pin (c40)
18
6H4-11634-01-00
Clip, Piston Pin (c40)
