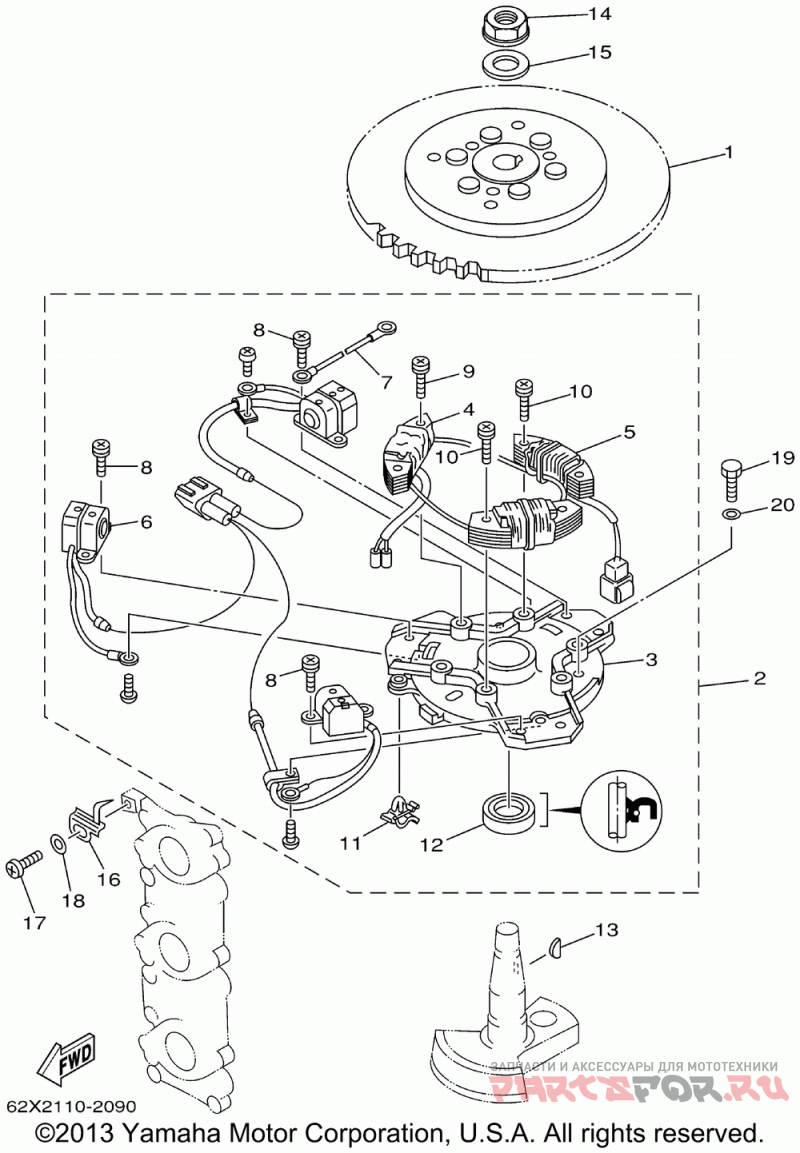

Генератор

Yamaha C40TLRA

Yamaha
#oem кодцена
1
63D-85550-00-00
Rotor Asy (c40)
1
63D-85550-00-00
Rotor Asy (c40)
2
63D-85560-10-00
Base Assy (c40)
2
63D-85560-10-00
Base Assy (c40)
3
6H4-15359-04-94
Housing, Oil Seal (c40)
3
6H4-15359-04-94
Housing, Oil Seal (c40)
4
63D-85520-01-00
Coil, Charge (c40)
4
63D-85520-01-00
Coil, Charge (c40)
5
63D-85533-10-00
Coil, Lighting (c40)
5
63D-85533-10-00
Coil, Lighting (c40)
6
63D-85580-00-00
Coil, Pulser (c40)
6
63D-85580-00-00
Coil, Pulser (c40)
7
6H4-83354-00-00
Wire, Earth Lead 1 (c40)
7
6H4-83354-00-00
Wire, Earth Lead 1 (c40)
8
98517-05012-00
Screw, Panhead (m5x12) (c40)
8
98517-05012-00
Screw, Panhead (m5x12) (c40)
9
98517-06025-00
Screw, Pan Head (m6x25) (c40)
9
98517-06025-00
Screw, Pan Head (m6x25) (c40)
10
98517-06030-00
Screw, Pan Head (m6x30) (c40)
10
98517-06030-00
Screw, Pan Head (m6x30) (c40)
11
90464-03M15-00
Clamp (c40)
11
90464-03M15-00
Clamp (c40)
12
93102-23096-00
Oil Seal, Sd-type (c40)
12
93102-23096-00
Oil Seal, Sd-type (c40)
13
6H4-11545-00-00
Key, Woodruff (c40)
13
6H4-11545-00-00
Key, Woodruff (c40)
14
90179-16M05-00
Nut, Spec'l Shape (c40)
14
90179-16M05-00
Nut, Spec'l Shape (c40)
15
90201-16M44-00
Washer, Plate (c40)
15
90201-16M44-00
Washer, Plate (c40)
16
6H4-81332-00-00
Plate, Timing (c40)
16
6H4-81332-00-00
Plate, Timing (c40)
17
97885-05010-00
Screw, Pan Head (c40)
17
97885-05010-00
Screw, Pan Head (c40)
18
92990-05600-00
Washer (c40) (5 Per Pack)
18
92990-05600-00
Washer (c40) (5 Per Pack)
19
97013-06018-00
Bolt, Hex (c40)
19
97013-06018-00
Bolt, Hex (c40)
20
92990-06600-00
Washer (c40) (5 Per Pack)
20
92990-06600-00
Washer (c40) (5 Per Pack)
