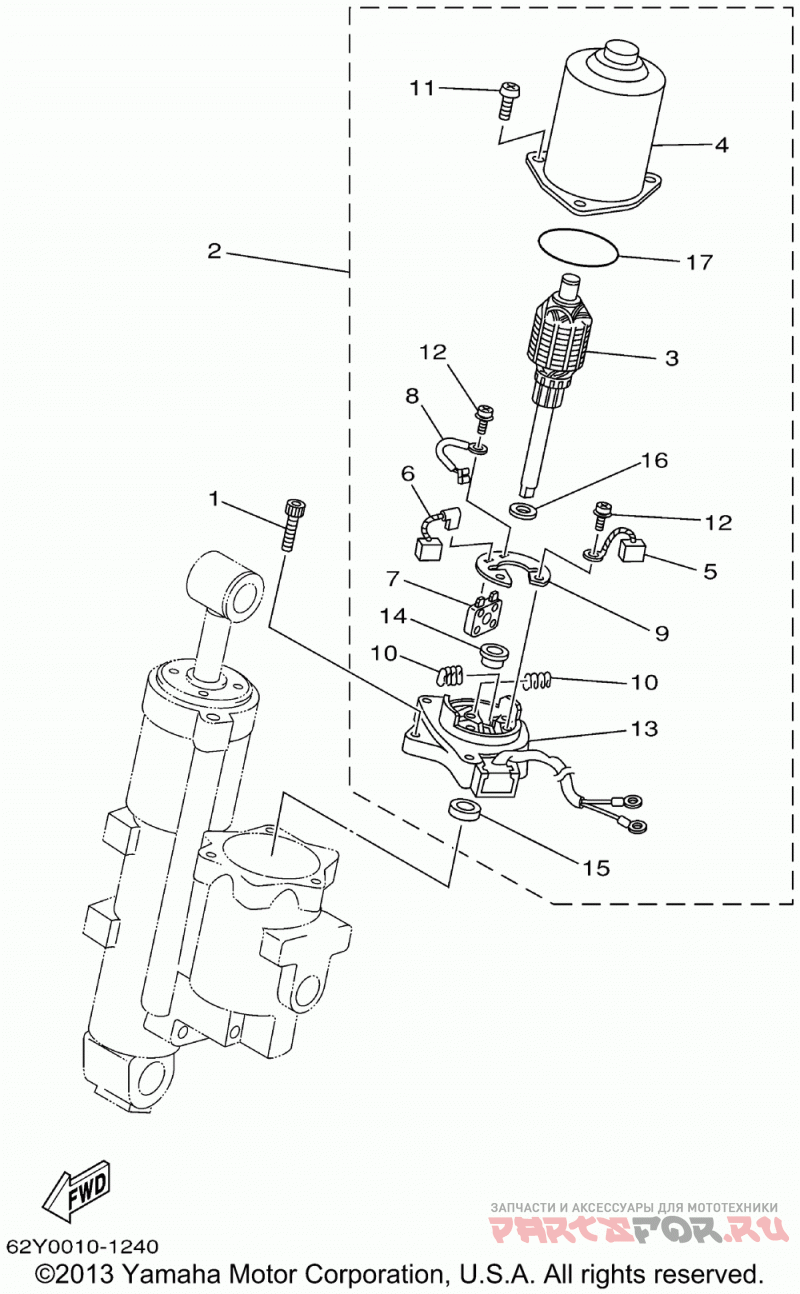

Цилиндр гидроподъема 2

Yamaha C40TLRA

Yamaha
#oem кодцена
1
91380-05020-00
Bolt, Socket (c40)
2
62Y-43880-02-00
Motor Assy (c40)
3
62Y-43805-00-00
Armature Assy (c40)
3
62Y-43805-00-00
Armature Assy (c40)
4
62X-43804-01-00
Stator Assy (c40)
4
62X-43804-01-00
Stator Assy (c40)
5
62Y-43892-00-00
Brush 2 (c40)
5
62Y-43892-00-00
Brush 2 (c40)
6
62Y-43891-00-00
Brush 1 (c40)
6
62Y-43891-00-00
Brush 1 (c40)
7
99999-03328-00
Circuit Breaker Comp (c40)
7
99999-03328-00
Circuit Breaker Comp (c40)
8
62X-43807-00-00
Wire Sub Assy (c40)
8
62X-43807-00-00
Wire Sub Assy (c40)
9
69W-4380F-00-00
Plate, Brush Holder (c40)
9
69W-4380F-00-00
Plate, Brush Holder (c40)
10
62X-4386K-00-00
Spring, Brush (c40)
10
62X-4386K-00-00
Spring, Brush (c40)
11
97885-05020-00
Screw, Pan Head (c40)
11
97885-05020-00
Screw, Pan Head (c40)
13
62Y-43881-00-00
Frame, End (c40)
13
62Y-43881-00-00
Frame, End (c40)
14
62X-4380H-00-00
Metal (c40)
14
62X-4380H-00-00
Metal (c40)
15
93102-08414-00
Oil Seal, Sd-type (c40)
15
93102-08414-00
Oil Seal, Sd-type (c40)
16
90201-083J8-00
Washer Plate (62x) (c40)
16
90201-083J8-00
Washer Plate (62x) (c40)
17
93210-52449-00
O-ring (c40)
17
93210-52449-00
O-ring (c40)
