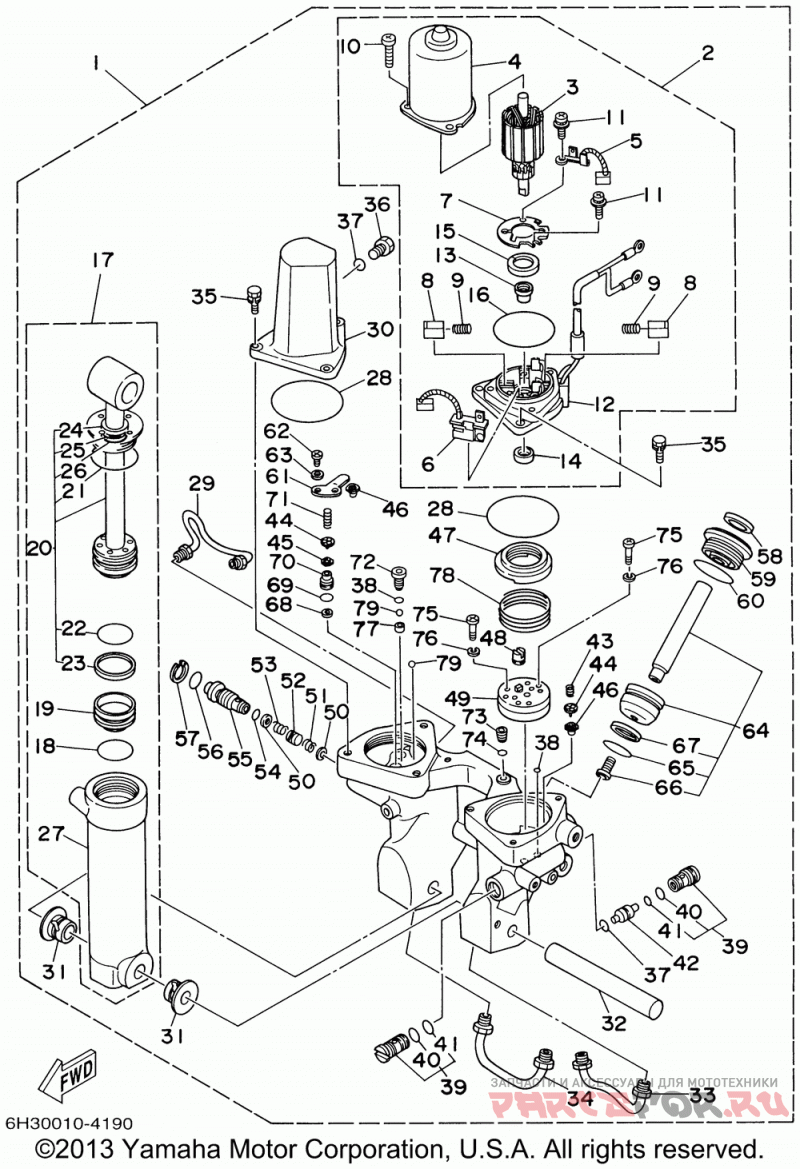

Power trim tilt assy

Yamaha 90TLRA

Yamaha
#oem кодцена
1
6H1-43800-17-8D
Power Trim & Tilt As (90tr)
1
6H1-43800-17-8D
Power Trim & Tilt As (90tr)
2
6H1-43880-02-00
Motor Assy (90tr)
2
6H1-43880-02-00
Motor Assy (90tr)
3
6H1-43805-10-00
Armature Assy (90tr)
3
6H1-43805-10-00
Armature Assy (90tr)
4
6H1-43804-10-00
Stator Assy (90tr)
4
6H1-43804-10-00
Stator Assy (90tr)
5
6H1-43891-10-00
Brush 1 (+) (90tr)
5
6H1-43891-10-00
Brush 1 (+) (90tr)
6
6H1-43892-10-00
Brush 2 (-) (brush 2) (90tr)
6
6H1-43892-10-00
Brush 2 (-) (brush 2) (90tr)
7
6H1-4380F-10-00
Plate, Brush Holder (90tr)
7
6H1-4380F-10-00
Plate, Brush Holder (90tr)
8
6H1-4380J-10-00
Holder, Brush (90tr)
8
6H1-4380J-10-00
Holder, Brush (90tr)
9
6H1-4386K-10-00
Spring, Brush (90tr)
9
6H1-4386K-10-00
Spring, Brush (90tr)
10
97885-05016-00
Screw, Pan Head (90tr)
10
97885-05016-00
Screw, Pan Head (90tr)
11
98507-04010-00
Screw, Panhead (90tr)
11
98507-04010-00
Screw, Panhead (90tr)
12
6H1-43881-10-00
Frame, End (90tr)
12
6H1-43881-10-00
Frame, End (90tr)
13
6H1-4380H-10-00
Metal (90tr)
13
6H1-4380H-10-00
Metal (90tr)
14
93102-08M43-00
Oil Seal, Sd-type (90tr)
14
93102-08M43-00
Oil Seal, Sd-type (90tr)
15
6H1-4380G-10-00
Plate (90tr)
15
6H1-4380G-10-00
Plate (90tr)
16
6H1-43865-10-00
O-ring (90tr)
16
6H1-43865-10-00
O-ring (90tr)
17
6H1-43840-11-00
Power Tilt Assy. (90tr)
17
6H1-43840-11-00
Power Tilt Assy. (90tr)
18
6H1-43861-10-00
O-ring (90tr)
18
6H1-43861-10-00
O-ring (90tr)
19
6H1-43814-11-00
Piston, Free (90tr)
19
6H1-43814-11-00
Piston, Free (90tr)
20
6H1-43810-11-00
Piston Sub Assy (90tr)
20
6H1-43810-11-00
Piston Sub Assy (90tr)
21
6H1-43861-00-00
O-ring 1 (90tr)
21
6H1-43861-00-00
O-ring 1 (90tr)
22
6H1-43861-10-00
O-ring (90tr)
22
6H1-43861-10-00
O-ring (90tr)
23
6H1-43871-10-00
Ring, Back Up (90tr)
23
6H1-43871-10-00
Ring, Back Up (90tr)
24
6H1-43812-00-00
Seal, Dust (90tr)
24
6H1-43812-00-00
Seal, Dust (90tr)
25
6H1-43872-10-00
Ring, Back Up (90tr)
25
6H1-43872-10-00
Ring, Back Up (90tr)
26
93210-18322-00
O-ring (90tr) (5 Per Pack)
26
93210-18322-00
O-ring (90tr) (5 Per Pack)
27
6H1-43813-10-00
Cylinder, Tilt (90tr)
27
6H1-43813-10-00
Cylinder, Tilt (90tr)
28
93210-65752-00
O-ring (2hj) (90tr)
28
93210-65752-00
O-ring (2hj) (90tr)
29
6H1-43835-10-00
Pipe (90tr)
29
6H1-43835-10-00
Pipe (90tr)
30
6H1-43828-10-00
Body, Reservoir (90tr)
30
6H1-43828-10-00
Body, Reservoir (90tr)
31
90386-18M14-00
Bush, Spec'l Nylon (90tr)
31
90386-18M14-00
Bush, Spec'l Nylon (90tr)
32
6E5-43818-00-00
Pin, Lwr Shk Mount (90tr)
32
6E5-43818-00-00
Pin, Lwr Shk Mount (90tr)
33
6H1-43833-10-00
Pipe (90tr)
33
6H1-43833-10-00
Pipe (90tr)
34
6H1-43834-00-00
Pipe (90tr)
34
6H1-43834-00-00
Pipe (90tr)
35
97595-06420-00
Bolt, W/washer (90tr) (5 Per Pack)
35
97595-06420-00
Bolt, W/washer (90tr) (5 Per Pack)
36
6H1-43829-00-00
Plug, Reservoir (90tr)
36
6H1-43829-00-00
Plug, Reservoir (90tr)
37
93210-09350-00
O-ring (90tr)
37
93210-09350-00
O-ring (90tr)
38
93210-06519-00
O-ring (90tr) (5 Per Pack)
39
6T4-43802-03-00
Valve Sub Assy (90tr)
39
6T4-43802-03-00
Valve Sub Assy (90tr)
40
6H1-43866-01-00
O-ring (90tr)
40
6H1-43866-01-00
O-ring (90tr)
41
6H1-43867-00-00
O-ring (90tr)
41
6H1-43867-00-00
O-ring (90tr)
42
6H1-43841-11-00
Piston, Shuttle (90tr)
42
6H1-43841-11-00
Piston, Shuttle (90tr)
43
6H1-43856-10-00
Spring, Down Relief (90tr)
43
6H1-43856-10-00
Spring, Down Relief (90tr)
44
6H1-43844-10-00
Pin, Valve Support (90tr)
44
6H1-43844-10-00
Pin, Valve Support (90tr)
45
6H1-4384G-11-00
Seal, Relief Valve (90tr)
45
6H1-4384G-11-00
Seal, Relief Valve (90tr)
46
6H1-4384F-10-00
Seal, Main Valve (90tr)
46
6H1-4384F-10-00
Seal, Main Valve (90tr)
47
6H1-43817-01-00
Filter 2 (90tr)
47
6H1-43817-01-00
Filter 2 (90tr)
48
6H1-43831-10-00
Connector, Shaft (90tr)
48
6H1-43831-10-00
Connector, Shaft (90tr)
49
6H1-43830-11-00
Gear Pump Assy (90tr)
49
6H1-43830-11-00
Gear Pump Assy (90tr)
50
6H1-43847-00-00
Seat, Manual Valve (90tr)
50
6H1-43847-00-00
Seat, Manual Valve (90tr)
51
6H1-43899-00-00
Spring, Manual Rel. (90tr)
51
6H1-43899-00-00
Spring, Manual Rel. (90tr)
52
6H1-4382A-10-00
Adaptor 1 (90tr)
52
6H1-4382A-10-00
Adaptor 1 (90tr)
53
6H1-43854-00-00
Srg, Manual Release (90tr)
53
6H1-43854-00-00
Srg, Manual Release (90tr)
54
93210-10M74-00
O-ring (90tr) (5 Per Pack)
54
93210-10M74-00
O-ring (90tr) (5 Per Pack)
55
6H1-43845-01-00
Screw, Manual Relse (90tr)
55
6H1-43845-01-00
Screw, Manual Relse (90tr)
56
93210-18M75-00
O-ring (90tr)
56
93210-18M75-00
O-ring (90tr)
57
6H1-43875-00-00
Ring, Snap (90tr)
57
6H1-43875-00-00
Ring, Snap (90tr)
58
6H1-43822-10-00
Seal, Trim Dust (90tr)
58
6H1-43822-10-00
Seal, Trim Dust (90tr)
59
6H1-43821-11-00
Screw, Trim Cyl. (90tr)
59
6H1-43821-11-00
Screw, Trim Cyl. (90tr)
60
6H1-43861-10-00
O-ring (90tr)
60
6H1-43861-10-00
O-ring (90tr)
61
6H1-4384E-20-00
Spring, Trim (90tr)
61
6H1-4384E-20-00
Spring, Trim (90tr)
62
97885-05010-00
Screw, Pan Head (90tr)
62
97885-05010-00
Screw, Pan Head (90tr)
63
92990-05200-00
Washer (90tr) (5 Per Pack)
63
92990-05200-00
Washer (90tr) (5 Per Pack)
64
6H1-43820-11-00
Piston Sub Assy. (90tr)
64
6H1-43820-11-00
Piston Sub Assy. (90tr)
65
6H1-43864-00-00
O-ring (90tr)
65
6H1-43864-00-00
O-ring (90tr)
66
91317-08016-00
Bolt (90tr)
66
91317-08016-00
Bolt (90tr)
67
6H1-43874-00-00
Ring, Back Up (90tr)
67
6H1-43874-00-00
Ring, Back Up (90tr)
68
6H1-43816-00-00
Filter 1 (90tr)
68
6H1-43816-00-00
Filter 1 (90tr)
69
93210-11368-00
O-ring (90tr)
69
93210-11368-00
O-ring (90tr)
70
6H1-43895-12-00
Seat, Relief Valve (90tr)
70
6H1-43895-12-00
Seat, Relief Valve (90tr)
71
6H1-43855-11-00
Spring Up Releif (90tr)
71
6H1-43855-11-00
Spring Up Releif (90tr)
72
6H1-43843-11-00
Screw, Valve Lock (90tr)
72
6H1-43843-11-00
Screw, Valve Lock (90tr)
73
6H1-4388E-11-00
Plug, Tapper Screw (90tr)
73
6H1-4388E-11-00
Plug, Tapper Screw (90tr)
74
6H1-43868-00-00
O-ring (90tr)
74
6H1-43868-00-00
O-ring (90tr)
75
98517-04025-00
Screw, Pan Head (90tr)
75
98517-04025-00
Screw, Pan Head (90tr)
76
92990-04100-00
Washer, Spring (90tr) (5 Per Pack)
76
92990-04100-00
Washer, Spring (90tr) (5 Per Pack)
77
6H1-4387J-00-00
Washer, Special 2 (90tr)
77
6H1-4387J-00-00
Washer, Special 2 (90tr)
78
6H1-4385H-00-00
Spring, Seal (90tr)
78
6H1-4385H-00-00
Spring, Seal (90tr)
79
93505-32038-00
Ball (90tr)
79
93505-32038-00
Ball (90tr)
