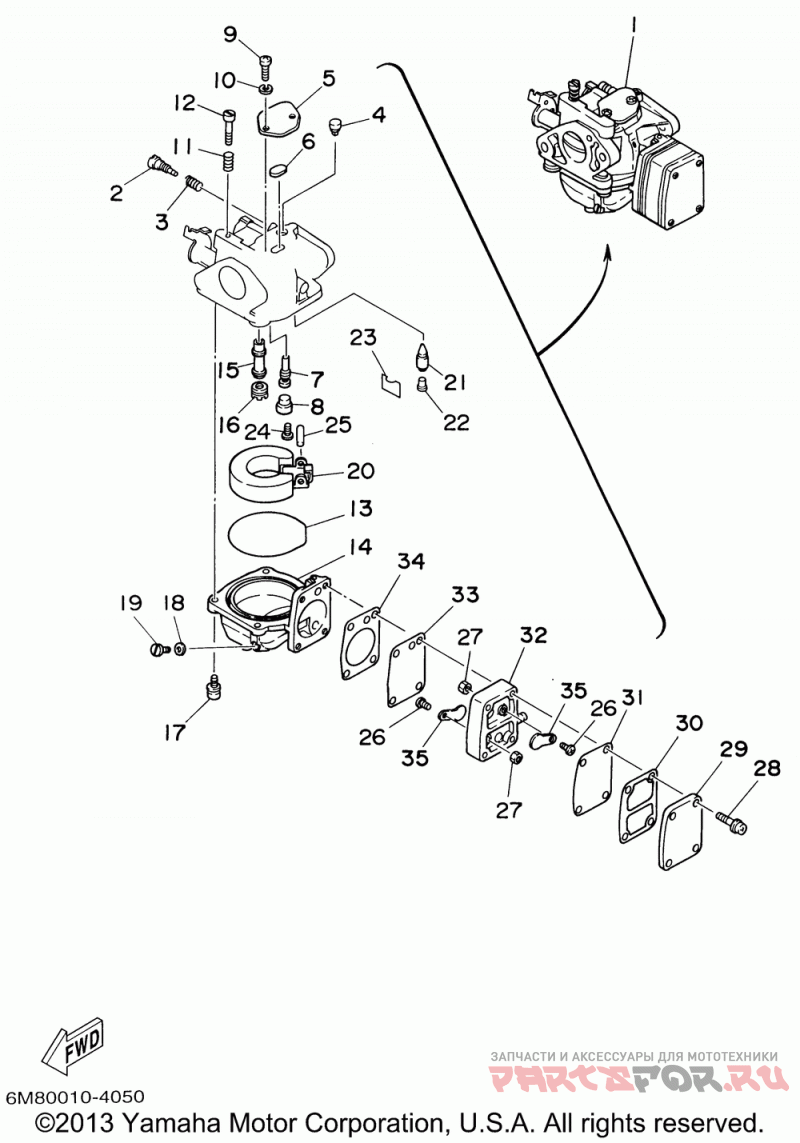

Карбюратор

Yamaha 8MSHA

Yamaha
#oem кодцена
1
6G1-14301-01-00
Carb. Assy. 1 (8mh)
2
679-14923-00-00
Screw, Pilot (8mh)
3
697-14555-00-00
Spring (8mh)
4
6G1-14966-00-00
Cap (8mh)
5
6G1-14527-00-00
Plate (8mh)
6
6G1-14126-00-00
Gasket (8mh)
7
676-14948-05-00
Jet (#45) (#45) (8mh)
8
679-14966-00-00
Rubber Cap (8mh)
9
98580-04010-00
Screw, Pan Head (8mh)
10
92990-04100-00
Washer, Spring (8mh) (5 Per Pack)
11
90501-10326-00
Spring, Compression (8mh)
12
63V-14523-00-00
Screw, Stop (8mh)
13
6G1-14984-00-00
Gasket, Float Chmbr (8mh)
14
6G1-14980-01-00
Body, Float Chamber (8mh)
15
6G1-14947-00-00
Jet, Needle (8mh)
16
676-14943-26-00
Jet, Main (#98) (8mh)
17
97980-04114-00
Screw, W/washer (8mh)
18
6G1-14398-00-00
Washer (8mh)
19
65W-14992-00-00
Screw, Drain (8mh)
20
6G1-14985-00-00
Float (8mh)
21
6G1-14546-01-00
Valve, Needle (8mh)
22
676-14186-00-00
Pin, Float (8mh)
23
633-14159-00-00
Clip (8mh)
24
98580-04008-00
Screw, Pan Head (8mh)
25
688-14548-00-00
Pin, Float Arm (8mh)
26
98580-03006-00
Screw, Pan Head (8mh) (5 Per Pack)
27
95380-03600-00
Nut (8mh) (5 Per Pack)
28
97980-04125-00
Screw, W/washer (8mh)
29
6G1-24452-00-00
Cover (8mh)
30
6G1-24432-00-00
Gasket, Fuel Pump 2 (8mh)
31
6G1-24471-00-00
Diaphrgm (8mh)
32
6G1-24412-01-00
Body 1 (8mh)
33
6G1-24411-00-00
Diaphragm (8mh)
34
6G1-24431-01-00
Gasket, Fuel Pump 1 (8mh)
35
6G1-24421-00-00
Valve, Check (8mh)
