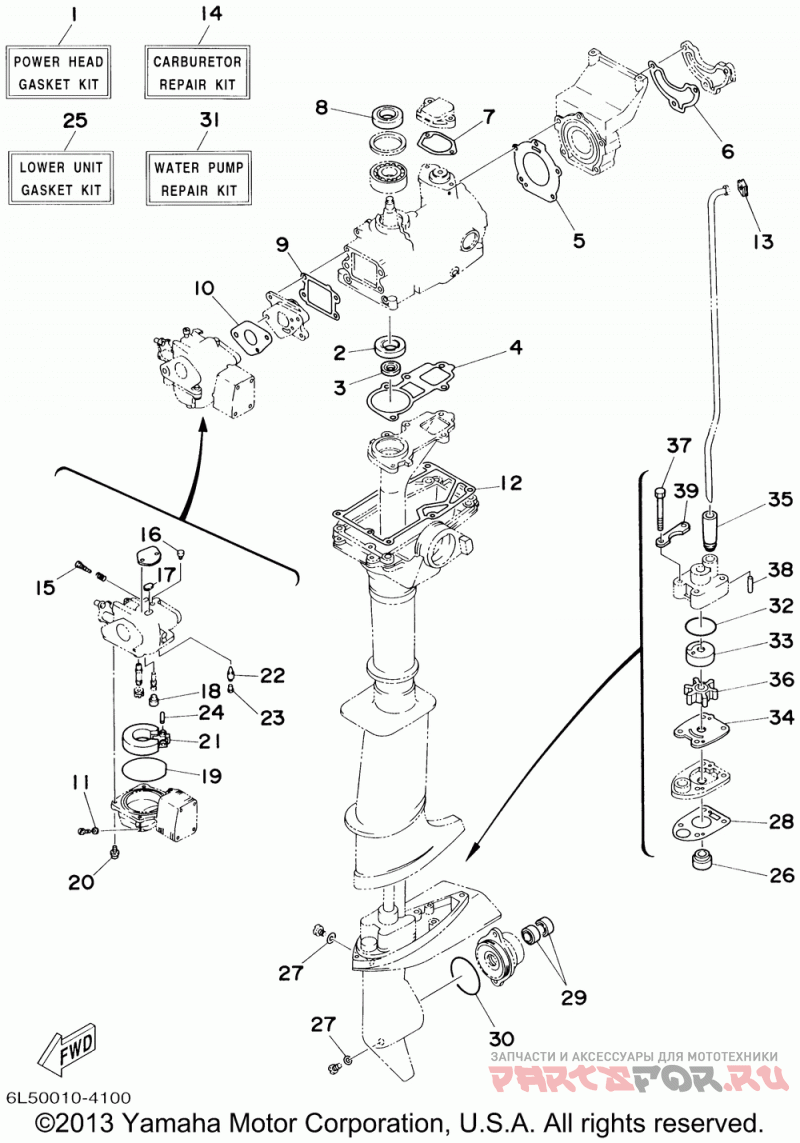

Repair kit

Yamaha 3MSHA

Yamaha
#oem кодцена
1
6L5-W0001-A2-00
Power Head Gasket Ki (3mh)
2
93101-20M29-00
Oil Seal, S-type (3mh)
3
93101-09M42-00
Oil Seal, S-type (3mh)
4
6L5-15369-A0-00
Gasket, O/sl Hsng (3mh)
5
6L5-11181-A2-00
Gasket, Cyl.head 1 (3mh)
6
6L5-11193-A1-00
Gasket, Hd.cover 1 (3mh)
7
6L5-12414-A1-00
Gasket, Cover (3mh)
8
93101-20M29-00
Oil Seal, S-type (3mh)
9
6L5-13621-A2-00
Gasket, Valve Seat (3mh)
10
6L5-14198-A1-00
Gasket (3mh)
11
6G1-14398-00-00
Washer (3mh)
12
6L5-45113-A1-00
Gasket, Upper Casin (3mh)
13
646-44365-00-00
Water Seal (3mh)
14
6G1-W0093-00-00
Carb Repair Kit (3mh)
15
679-14923-00-00
Screw, Pilot (3mh)
16
6G1-14966-00-00
Cap (3mh)
17
6G1-14126-00-00
Gasket (3mh)
18
679-14966-00-00
Rubber Cap (3mh)
19
6G1-14984-00-00
Gasket, Float Chmbr (3mh)
20
97980-04114-00
Screw, W/washer (3mh)
21
6G1-14985-00-00
Float (3mh)
22
6G1-14546-01-00
Valve, Needle (3mh)
23
676-14186-00-00
Pin, Float (3mh)
24
688-14548-00-00
Pin, Float Arm (3mh)
25
6L5-W0001-21-00
Gasket Kit (3mh)
26
93103-09M41-00
Oil Seal, Sw-type (3mh)
27
90430-08020-00
Gasket (3mh) (10 Per Pack)
28
6L5-45315-A0-00
Packing, Lower Case (3mh)
29
93101-13M12-00
Oil Seal, S-type (3mh)
30
93210-48214-00
O-ring (3mh)
31
6L5-W0078-00-00
Water Pump Rep.kit (3mh)
32
93210-33M85-00
O-ring (3mh)
33
6L5-44322-00-00
Insert Cartridge (3mh)
34
6L5-44323-00-00
Outer Plate, Cart. (3mh)
35
6E0-44366-00-00
Water Seal (3mh)
36
6L5-44352-00-00
Impeller (3mh)
37
97095-06040-00
Bolt (682) (3mh) (5 Per Pack)
38
93604-18080-00
Pin, Dowel (3mh)
39
6L5-44328-00-00
Plate (3mh)
