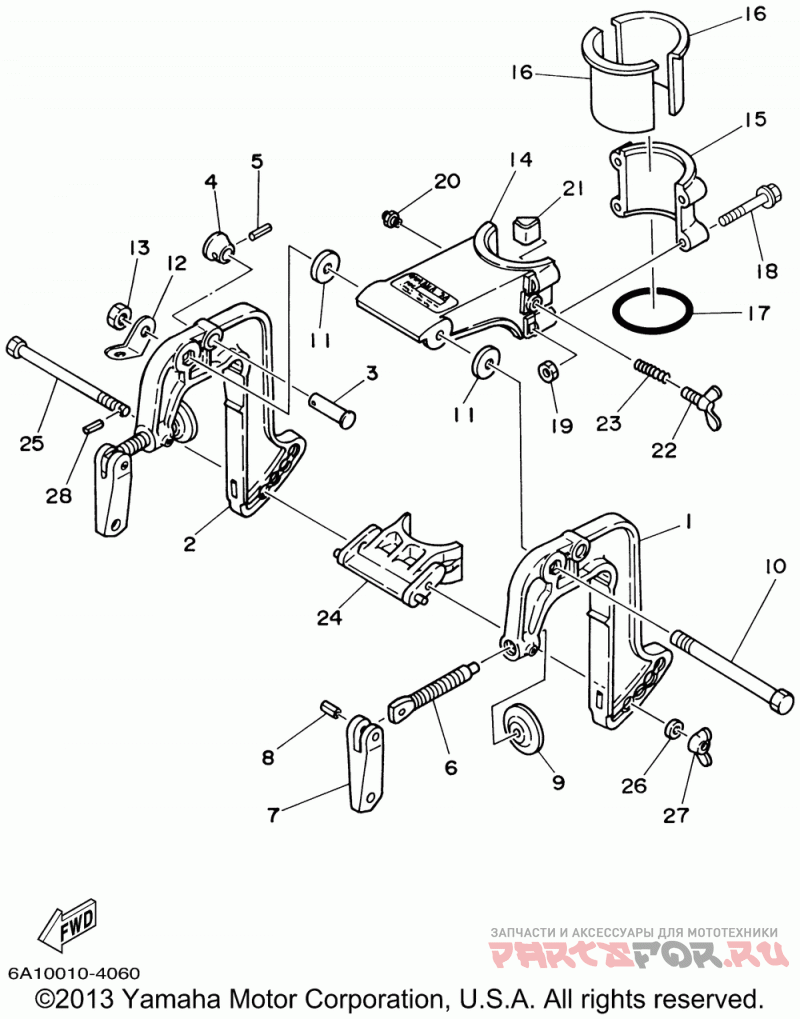

Кронштейн крепления к транцу

Yamaha 2MSHA

Yamaha
#oem кодцена
1
6A1-43111-03-4D
Bracket, Clamp (2mh)
2
6A1-43112-00-4D
Bracket, Clamp (2mh)
3
6A1-43191-00-00
Shaft, Stopper (2mh)
4
6A1-43192-00-00
Knob, Stopper (2mh)
5
91690-30014-00
Pin, Spring (2mh)
6
6E0-43116-01-00
Screw, Transom Clam (2mh)
7
6E0-43118-01-00
Handle, Transom Clp (2mh)
8
90243-04M01-00
Pin (2mh)
9
648-43114-01-00
Pad, Transom Clamp (2mh)
10
90101-08217-00
Bolt (2mh)
11
90202-08022-00
Washer, Plate (2mh)
12
6A1-43113-01-00
Plate, Clamp Brk (2mh)
13
99780-08600-00
Nut, Hex. (2mh)
14
6A1-43311-02-4D
Bracket, Swivel 1 (2mh)
15
6A1-43312-00-4D
Bracket, Swivel 2 (2mh)
16
646-42537-01-00
Bushing, Pivot Shaf (2mh)
17
93210-46044-00
O-ring (2mh) (5 Per Pack)
18
90119-06M98-00
Bolt, With Washer (2mh)
19
95380-06600-00
Nut (2mh) (5 Per Pack)
20
93700-06M03-00
Nipple, Grease (2mh)
21
646-42528-00-00
Piece, Friction (2mh)
22
90122-06004-00
Bolt, Wing (2mh)
23
90501-12272-00
Spring, Compression (2mh)
24
6A1-43351-00-00
Receiver, Thrust (2mh)
25
6A1-43371-00-00
Bolt, Receiver (2mh)
26
90201-06040-00
Washer, Plate (2mh)
27
90175-06008-00
Nut, Wing (2mh)
28
91690-20006-00
Pin, Spring (2mh)
