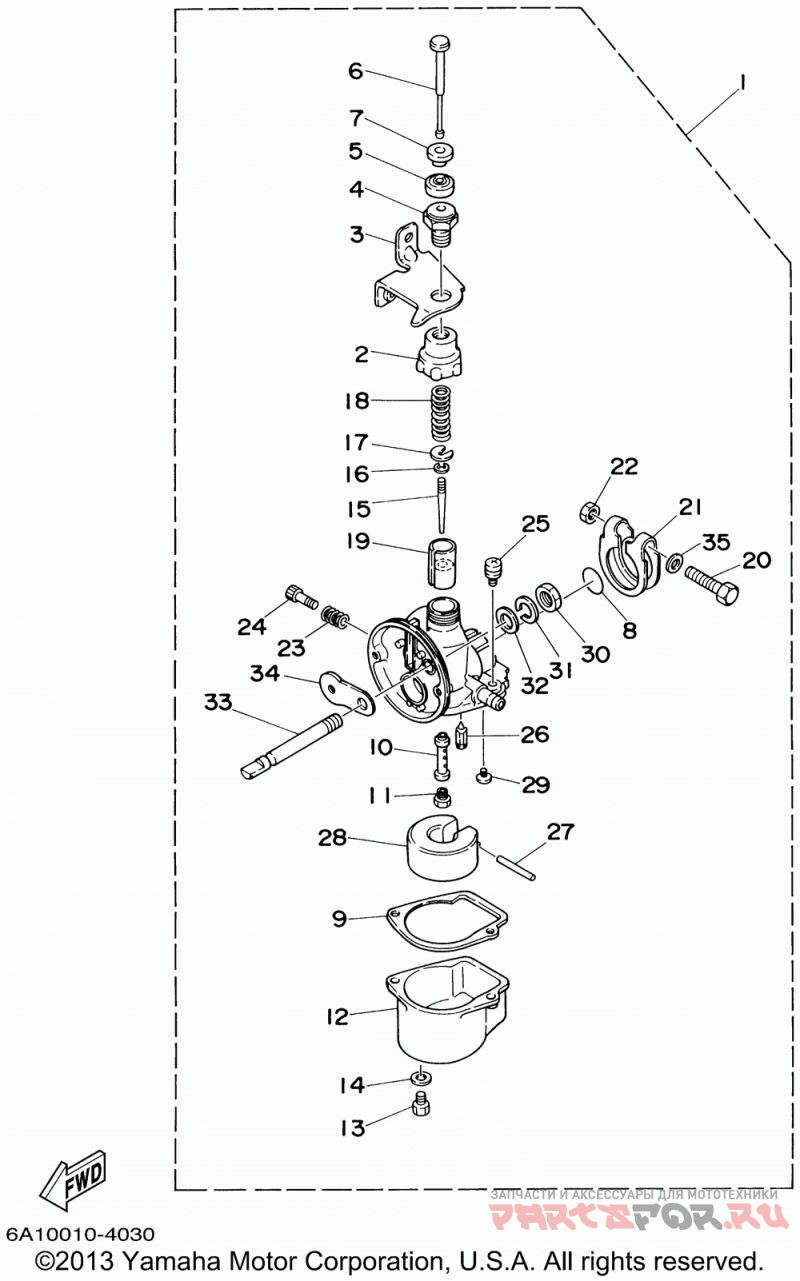

Карбюратор

Yamaha 2MSHA

Yamaha
#oem кодцена
1
6A1-14301-03-00
Carburetor Asy 1 (2mh)
2
646-14158-00-00
Top, Mixing Chamber (2mh)
3
6A1-14497-00-00
Stay, Thrtl Valve (2mh)
4
646-14321-00-00
Screw, Throttle (2mh)
5
626-14373-10-00
Cover, Plunger Cap (2mh)
6
6A1-14314-00-00
Bar, Throttle (2mh)
7
6A1-14163-00-00
Spacer (2mh)
8
646-14229-01-00
O-ring (2mh)
9
6A1-14384-00-00
Gasket, Float Chmbr (2mh)
10
6A1-14341-01-00
Nozzle, Main (2mh)
11
6A1-14343-48-00
Jet, Main (#96) (# 96) (2mh)
12
6A1-14381-02-00
Body, Float Chamber (2mh)
13
98580-05006-00
Screw, Pan Head (2mh) (5 Per Pack)
14
646-14198-01-00
Gasket (2mh)
15
6A1-14116-10-00
Needle (2mh)
16
646-14137-00-00
Clip (2mh)
17
646-14136-00-00
Seat, Spring (2mh)
18
646-14331-01-00
Spring, Thrtl Valve (2mh)
19
646-14312-08-00
Valve, Throttle 1 (2mh)
20
646-14125-01-00
Screw, Body Fitting (2mh)
21
6A1-14127-01-00
Clip (2mh)
22
6A1-14358-01-00
Nut (2mh)
23
648-14334-00-00
Spring, Air Adj (2mh)
24
646-14211-02-00
Screw, Pilot Adj (2mh)
25
97980-04110-00
Screw, W/washer (2mh)
26
6A1-14392-00-00
Valve, Needle (2mh)
27
6A1-14386-00-00
Pin, Float (2mh)
28
6A1-14385-00-00
Float (2mh)
29
98580-03006-00
Screw, Pan Head (2mh) (5 Per Pack)
30
646-14358-00-00
Nut (2mh)
31
6A1-14356-00-00
Washer, Spring (2mh)
32
646-14357-00-00
Washer, Plain (2mh)
33
6A1-14448-00-00
Lever, Choke Valve (2mh)
34
6A1-14217-01-00
Valve, Choke (2mh)
35
92990-05600-00
Washer (2mh) (5 Per Pack)
