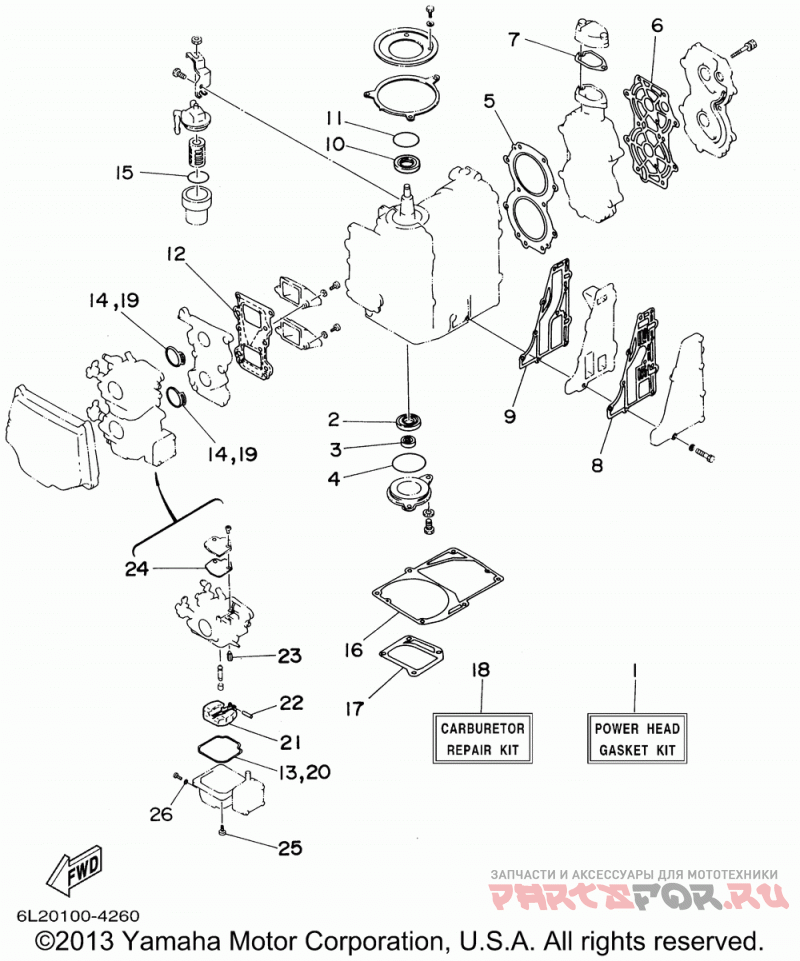

Ремонтные комплекты 1

Yamaha 25MSHA

Yamaha
#oem кодцена
1
6L2-W0001-03-00
Gasket Kit, Pwr/hd. (25mh)
2
93102-25142-00
Oil Seal (25mh)
3
93101-13M37-00
Oil Seal, S-type (25mh)
4
93210-56M80-00
O-ring (25mh)
5
6L2-11181-A3-00
Gasket, Cylinder Hea (25mh)
6
6L2-11193-A1-00
Gasket, Head Cover1 (25mh)
7
61A-12414-A0-00
Gasket, Cover (25mh)
8
6L2-41114-A1-00
Gskt.exh.otr Cover (25mh)
9
6L2-41112-A3-00
Gasket, Exhaust Inne (25mh)
10
93102-26M27-00
Oil Seal, Sd-type (25mh)
11
93210-42159-00
O-ring (25mh)
12
6L2-13621-00-00
Gasket, Valve Seat (25mh)
13
6L2-14384-00-00
Gasket, Float Chmbr (25mh)
14
6L2-14198-00-00
Gasket (25mh)
15
93210-32738-00
O-ring (25mh) (5 Per Pack)
16
6L2-45113-A2-00
Gasket, Upper Casing (25mh)
17
6L2-41133-A3-00
Gasket, Exhaust Mani (25mh)
18
6L2-W0093-00-00
Carb.repair Kit (25mh)
19
6L2-14198-00-00
Gasket (25mh)
20
6L2-14384-00-00
Gasket, Float Chmbr (25mh)
21
6L2-14385-00-00
Float (25mh)
22
6E5-14386-01-00
Pin, Float (25mh)
23
6L2-14392-00-00
Valve, Needle (25mh)
24
6L2-14399-00-00
Gasket (25mh)
25
97980-04112-00
Screw, W/washer (25mh)
26
6L2-14398-00-00
Gasket (25mh)
