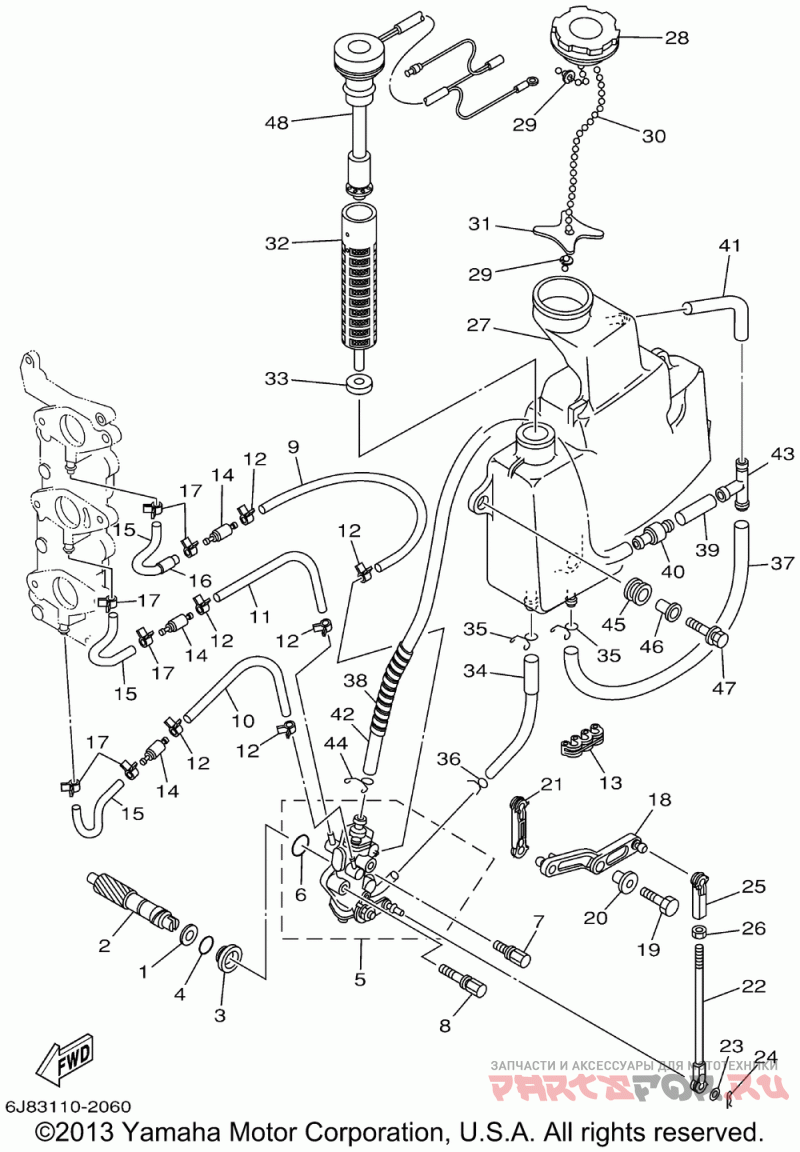

Oil pump 30 oil injection

Yamaha 25MSH3A/30MSHA

Yamaha
#oem кодцена
1
90201-08M93-00
Washer, Plate (30mh)
2
6J8-11537-00-00
Gear, Driven (30mh)
3
6J8-13117-00-00
Collar, Distance (30mh)
4
93210-13595-00
O-ring (30mh) (5 Per Pack)
5
6J8-13200-01-00
Oil Pump Assy (30mh)
5
6J8-13200-01-00
Oil Pump Assy (30mh)
6
93210-19M82-00
O-ring (30mh)
6
93210-19M82-00
O-ring (30mh)
7
90109-05M32-00
Bolt (30mh)
7
90109-05M32-00
Bolt (30mh)
8
90109-05M33-00
Bolt (30mh)
8
90109-05M33-00
Bolt (30mh)
9
90445-07M90-00
Hose (l220) (30mh)
9
90445-07M90-00
Hose (l220) (30mh)
10
90445-07MA3-00
Hose (l200) (l120) (30mh)
10
90445-07MA3-00
Hose (l200) (l120) (30mh)
11
90445-07MA3-00
Hose (l200) (l120) (30mh)
11
90445-07MA3-00
Hose (l200) (l120) (30mh)
12
90468-07M02-00
Clip (30mh)
12
90468-07M02-00
Clip (30mh)
13
90464-07M05-00
Clamp (30mh)
13
90464-07M05-00
Clamp (30mh)
14
6E9-13183-70-00
Valve, Check (30mh)
14
6E9-13183-70-00
Valve, Check (30mh)
15
90446-07M48-00
Hose (l50) (30mh)
15
90446-07M48-00
Hose (l50) (30mh)
16
90445-112E0-00
Hose (l10) (30mh) (5 Per Pack)
16
90445-112E0-00
Hose (l10) (30mh) (5 Per Pack)
17
90468-07M02-00
Clip (30mh)
17
90468-07M02-00
Clip (30mh)
18
6J8-13155-00-00
Lever, Control (30mh)
19
90101-06M27-00
Bolt (30mh)
19
90101-06M27-00
Bolt (30mh)
20
90387-06M60-00
Collar (30mh)
20
90387-06M60-00
Collar (30mh)
21
6J8-41238-00-00
Joint, Link (30mh)
21
6J8-41238-00-00
Joint, Link (30mh)
22
6J8-41237-00-00
Joint, Link (30mh)
22
6J8-41237-00-00
Joint, Link (30mh)
23
90202-05088-00
Washer, Plate (30mh)
23
90202-05088-00
Washer, Plate (30mh)
24
90468-05M03-00
Clip (30mh) (5 Per Pack)
24
90468-05M03-00
Clip (30mh) (5 Per Pack)
25
682-41237-00-00
Joint, Link 2 (30mh)
25
682-41237-00-00
Joint, Link 2 (30mh)
26
95380-05700-00
Nut (30mh)
26
95380-05700-00
Nut (30mh)
27
6J8-21707-11-00
Oil Tank (30mh)
27
6J8-21707-11-00
Oil Tank (30mh)
28
6H4-21770-00-00
Oil Tank Cap Assy (30mh)
28
6H4-21770-00-00
Oil Tank Cap Assy (30mh)
29
6H1-21757-00-00
Washer, Special 1 (30mh)
29
6H1-21757-00-00
Washer, Special 1 (30mh)
30
6H1-24633-00-00
Chain, Ball (30mh)
30
6H1-24633-00-00
Chain, Ball (30mh)
31
6J8-21758-00-00
Washer, Special 2 (30mh)
31
6J8-21758-00-00
Washer, Special 2 (30mh)
32
6J8-13411-00-00
Strainer, Oil (30mh)
32
6J8-13411-00-00
Strainer, Oil (30mh)
33
6J8-13414-00-00
Gasket, Strainer Cv (30mh) (5 Per Pack)
33
6J8-13414-00-00
Gasket, Strainer Cv (30mh) (5 Per Pack)
34
6J8-13416-00-00
Pipe, Oil 1 (30mh)
35
90467-11M08-00
Clip (30mh)
35
90467-11M08-00
Clip (30mh)
36
90467-08004-00
Clip, Scissor (30mh)
36
90467-08004-00
Clip, Scissor (30mh)
37
90445-11M15-00
Hose (6h2) (l330) (30mh)
37
90445-11M15-00
Hose (6h2) (l330) (30mh)
38
90446-10M01-00
Hose (l60) (30mh)
38
90446-10M01-00
Hose (l60) (30mh)
39
90445-112E0-00
Hose (l30) (30mh) (5 Per Pack)
39
90445-112E0-00
Hose (l30) (30mh) (5 Per Pack)
40
63D-21744-00-00
Breather (30mh)
40
63D-21744-00-00
Breather (30mh)
41
90445-11M02-00
Hose (l100) (30mh)
41
90445-11M02-00
Hose (l100) (30mh)
42
90445-11M09-00
Hose (l400) (30mh)
42
90445-11M09-00
Hose (l400) (30mh)
43
6E5-24378-00-00
Pipe, Joint 4 (30mh)
43
6E5-24378-00-00
Pipe, Joint 4 (30mh)
44
90467-10M04-00
Clip, Pipe 1 (30mh)
44
90467-10M04-00
Clip, Pipe 1 (30mh)
45
6A0-82317-00-00
Damper, Ign Coil (30mh)
45
6A0-82317-00-00
Damper, Ign Coil (30mh)
46
90387-06119-00
Collar (30mh)
46
90387-06119-00
Collar (30mh)
47
90119-06M95-00
Bolt, With Washer (30mh)
47
90119-06M95-00
Bolt, With Washer (30mh)
48
6J8-85720-02-00
Oil Level Gauge Assy (30mh)
48
6J8-85720-02-00
Oil Level Gauge Assy (30mh)
