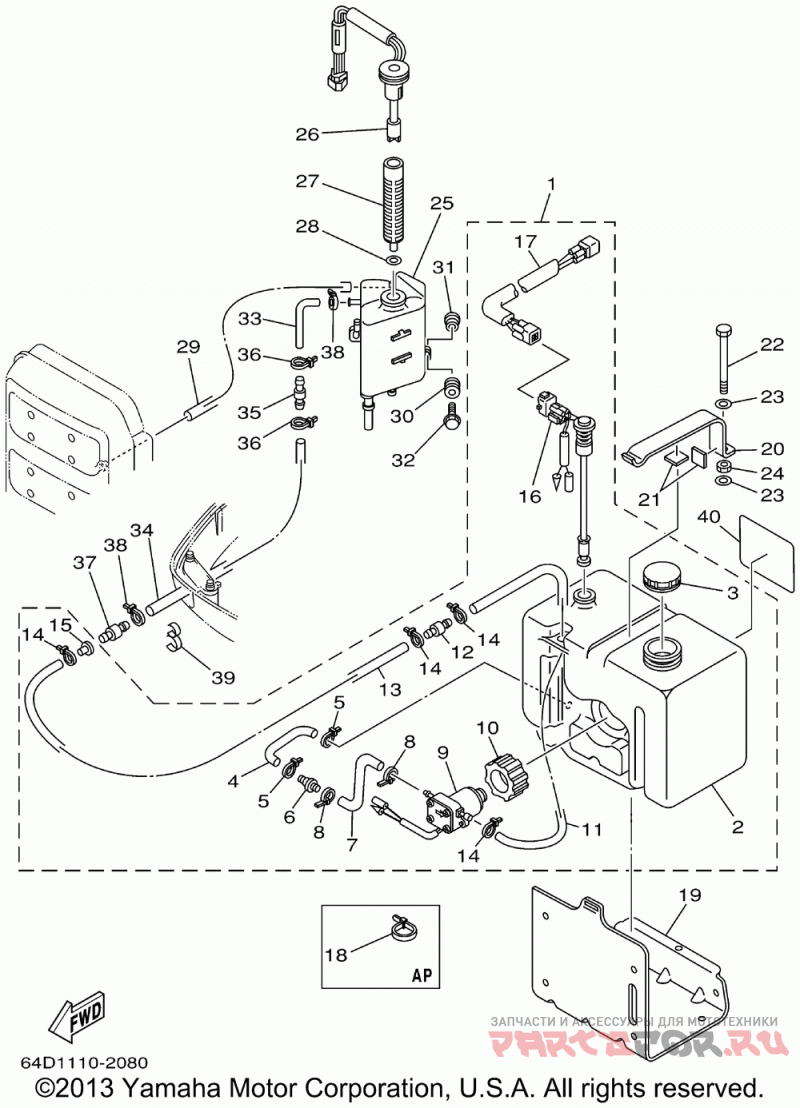

Маслянный банк

Yamaha 150TXRA

Yamaha
#oem кодцена
1
6E5-21708-10-00
Sub Oil Tank Assy. Ap(150)
2
6E5-21733-20-00
Sub Tank, Oil (10.5l (10.5l) (150)
3
6E5-21770-03-00
Cap Assy, Oil Tank (150)
4
6E5-24322-00-00
Pipe (150)
5
90465-10098-00
Clamp (150)
6
646-24251-02-00
Strainer 1 (150)
7
6E5-24319-01-00
Pipe, Oil (150)
8
90465-10098-00
Clamp (150)
9
6E5-81900-01-00
Motor Pump Assy (150)
10
6E5-81922-00-00
Grommet (150)
11
6E5-24321-01-00
Pipe 10 (150)
12
6E5-24379-00-00
Pipe, Joint (150)
13
90445-11M81-00
Hose (l3000) For 6e5-21708-08(150)
14
90465-10098-00
Clamp (150)
15
90480-06M19-00
Grommet (150)
16
6E5-85720-06-00
Oil Level Gauge Assy (150)
17
6R3-85721-30-00
Oil, Trim, Ext., 9.8 (l=3.0m) For 6e5-21708-08(150)
18
90465-13M11-00
Clamp Ap(150)
19
6E5-21734-01-33
Hldr, Oil Sub Tank Ap(150)
20
6E5-21798-01-33
Bracket, Damper Ap(150)
21
6E5-21746-00-00
Damper Ap(150)
22
97080-06100-00
Bolt Ap(150)
23
92990-06600-00
Washer Ap(150) (5 Per Pack)
24
95380-06600-00
Nut Ap(150) (5 Per Pack)
25
6E5-21750-05-00
Oil Tank Assy (150)
26
6R3-85730-04-00
Oil Level Gauge Assy (150)
27
6E5-13411-00-00
Strainer, Oil (150)
28
6E5-13414-00-00
Gasket, Strnr Cover (150) (5 Per Pack)
29
90445-05M07-00
Hose (l380) (150)
30
6A0-82317-00-00
Damper, Ign Coil (150)
31
90387-06119-00
Collar (150)
32
90119-06M95-00
Bolt, With Washer (150)
33
64E-24323-00-00
Pipe 12 (150)
34
90445-12M05-00
Hose (l2400) (150)
35
6E5-24379-00-00
Pipe, Joint (150)
36
90465-10098-00
Clamp (150)
37
6E5-24379-00-00
Pipe, Joint (150)
38
90465-10098-00
Clamp (150)
39
90464-13M34-00
Clamp (150)
40
6E5-13437-43-00
Mark, Caution (150)
