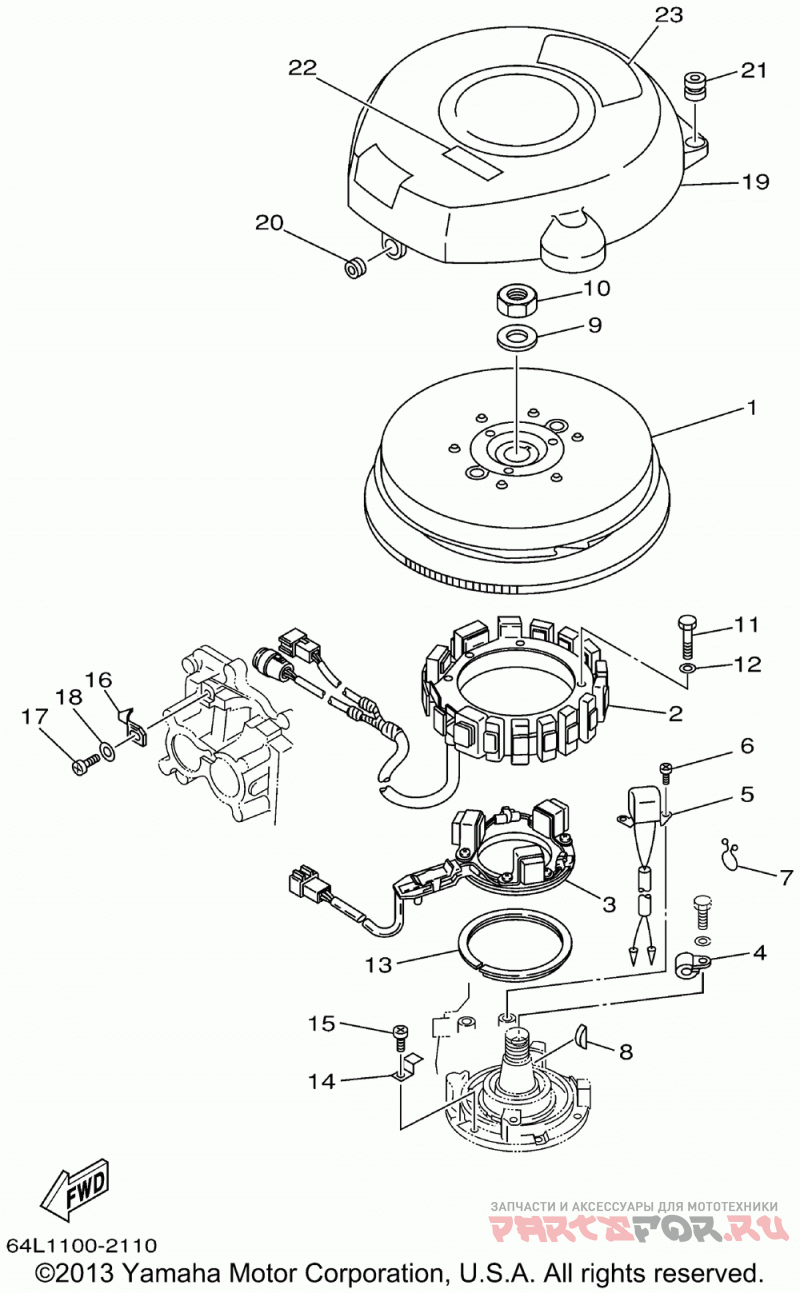

Генератор

Yamaha 150TXRA

Yamaha
#oem кодцена
1
64D-85550-02-00
Rotor Assy (150)
2
6R3-85510-00-00
Stator Asy (150)
3
64D-85580-00-00
Coil, Pulser (150)
4
90465-06M86-00
Clamp (150)
5
6R5-85895-01-00
Crank Position Sen (150)
5
6R5-85895-01-00
Crank Position Sen (150)
6
97885-05012-00
Screw, Pan Head (150)
6
97885-05012-00
Screw, Pan Head (150)
7
90464-15M11-00
Clamp (150)
7
90464-15M11-00
Clamp (150)
8
90280-05049-00
Key, Woodruff (150)
8
90280-05049-00
Key, Woodruff (150)
9
90201-21M18-00
Washer, Plate (150)
10
90170-20137-00
Nut, Hexagon (150)
10
90170-20137-00
Nut, Hexagon (150)
11
97013-06070-00
Bolt (661) (150)
11
97013-06070-00
Bolt (661) (150)
12
92990-06600-00
Washer (150) (5 Per Pack)
12
92990-06600-00
Washer (150) (5 Per Pack)
13
688-41611-00-00
Retainer, Mag.base (150)
13
688-41611-00-00
Retainer, Mag.base (150)
14
688-41612-00-00
Retainer, Mag.base (150)
14
688-41612-00-00
Retainer, Mag.base (150)
15
97880-06018-00
Screw, Pan Head (150)
15
97880-06018-00
Screw, Pan Head (150)
16
6E5-81332-00-00
Plate, Timing (150)
16
6E5-81332-00-00
Plate, Timing (150)
17
97985-06210-00
Screw, Pan Head W/w (150) (5 Per Pack)
17
97985-06210-00
Screw, Pan Head W/w (150) (5 Per Pack)
18
92990-06600-00
Washer (150) (5 Per Pack)
18
92990-06600-00
Washer (150) (5 Per Pack)
19
64D-81337-01-00
Cover, Flywheel (150)
19
64D-81337-01-00
Cover, Flywheel (150)
20
90480-13M24-00
Grommet (150)
20
90480-13M24-00
Grommet (150)
21
663-82317-01-00
Damper, Ign Coil (150)
21
663-82317-01-00
Damper, Ign Coil (150)
22
6A1-83625-41-00
Mark 5 (150)
22
6A1-83625-41-00
Mark 5 (150)
23
6G5-14488-02-00
Label, Caution (150)
23
6G5-14488-02-00
Label, Caution (150)
