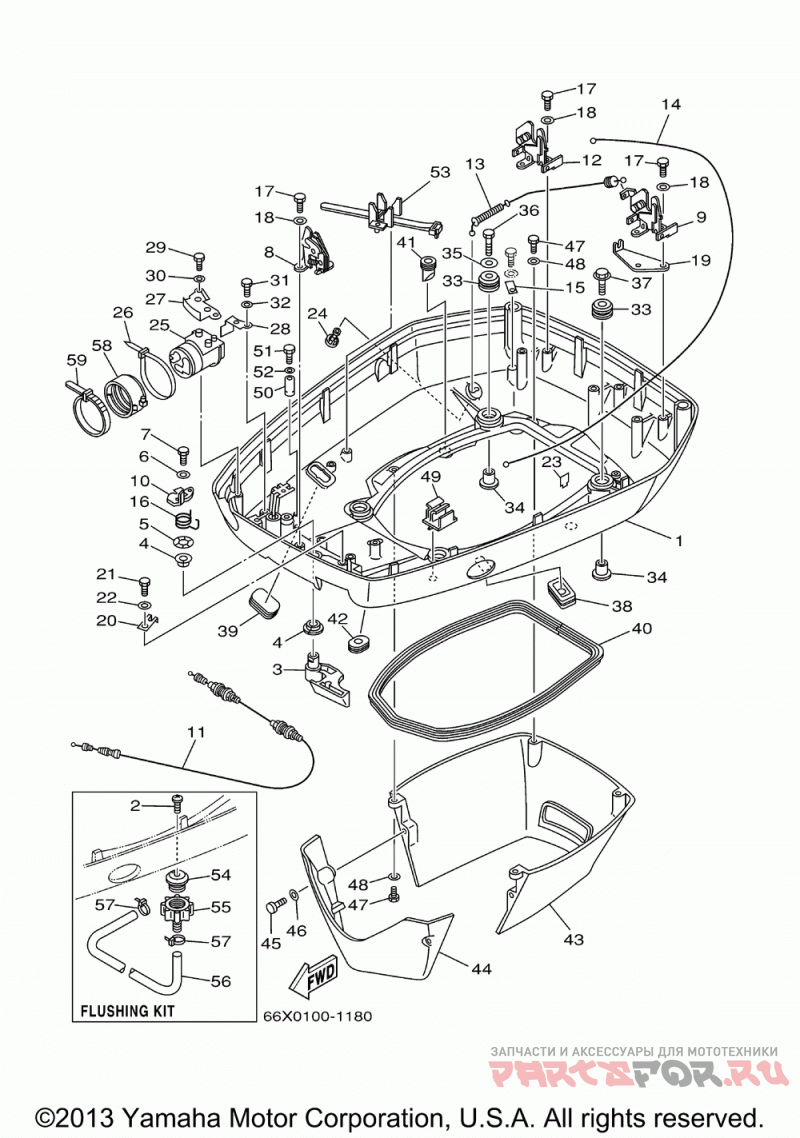

Нижний обтекатель

Yamaha VX200TLRZ/VX225TLRZ

Yamaha
#oem кодцена
1
61A-42711-06-8D
Cowling, Bottom (vx)
2
90169-05M00-00
Screw Truss Head Flushing Kit (vx)
3
61A-42815-01-8D
Lever, Clamp 1 (vx)
4
90386-13M88-00
Bush, Spec'l Nylon (vx)
5
90206-13M10-00
Washer, Wave (vx)
6
90201-06M30-00
Washer, Plate (vx)
7
90109-06M50-00
Bolt (vx)
8
6R3-42824-00-00
Base, Clamp Lever (vx)
9
6R3-42811-01-00
Stay (vx)
10
6R3-42816-00-00
Lever, Clamp 2 (vx)
11
6R3-42850-10-00
Wire, Complete (vx)
12
6R3-42811-10-00
Stay (vx)
13
61A-42850-01-00
Wire, Complete (vx)
14
61A-42850-20-00
Wire, Complete (vx)
15
682-44117-00-00
Bracket 1 (vx)
16
6R3-42813-00-00
Clamp Lever Spring (vx)
17
97095-06016-00
Bolt (ga1) (vx) (5 Per Pack)
18
92990-06600-00
Washer (vx) (5 Per Pack)
19
6N7-42828-00-00
Plate, Clamp (vx)
20
6R3-42828-00-00
Plate, Clamp (vx)
21
97085-06010-00
Bolt (vx)
22
92990-06600-00
Washer (vx) (5 Per Pack)
23
6N7-42841-00-00
Mark, Clamp (vx)
24
6E5-44391-00-00
Nipple, Hose (vx)
25
61A-42725-31-00
Grommet (vx)
26
90465-13M30-00
Clamp (vx)
27
61A-42738-02-8D
Plate, Fitting (vx)
28
64D-42738-11-00
Plate, Fitting (vx)
29
97095-06016-00
Bolt (ga1) (vx) (5 Per Pack)
30
92990-06600-00
Washer (vx) (5 Per Pack)
31
97080-06012-00
Bolt (vx)
32
92990-06600-00
Washer (vx) (5 Per Pack)
33
90480-22M81-00
Grommet (vx)
34
90387-08M37-00
Collar (vx)
35
90201-08M54-00
Washer, Plate (vx)
36
97095-08035-00
Bolt (vx)
37
90119-08M22-00
Bolt, With Washer (vx)
38
688-42726-10-00
Grommet 3 (vx)
39
6H4-42726-00-00
Grommet 3 (vx)
40
61A-42716-00-00
Seal, Rubber (vx)
41
61A-42717-00-00
Seal 2 (vx)
42
61A-42727-00-00
Grommet 4 (vx)
43
61A-42741-01-8D
Apron 1 (vx)
44
61A-42771-01-8D
Apron 2 (vx)
45
97080-06030-00
Bolt (vx)
46
92990-06600-00
Washer (vx) (5 Per Pack)
47
97080-06020-00
Bolt(7u8) (vx) (5 Per Pack)
48
92990-06600-00
Washer (vx) (5 Per Pack)
49
6E5-82594-00-00
Clamp (vx)
50
6E5-82588-00-00
Plate (vx)
51
97080-06020-00
Bolt(7u8) (vx) (5 Per Pack)
52
92990-06600-00
Washer (vx) (5 Per Pack)
53
688-82594-00-00
Clamp (vx)
54
6R3-12572-00-00
Adapter Flushing Kit (vx)
55
6R3-12580-00-00
Joint Assy. Flushing Kit (vx)
56
90445-117F2-00
Hose (l: 620) Flushing Kit (vx)
57
90465-10098-00
Clamp Flushing Kit (vx)
58
68F-42753-00-00
Fastner (vx)
59
90601-20022-00
Nylon Clip 1 (vx)
