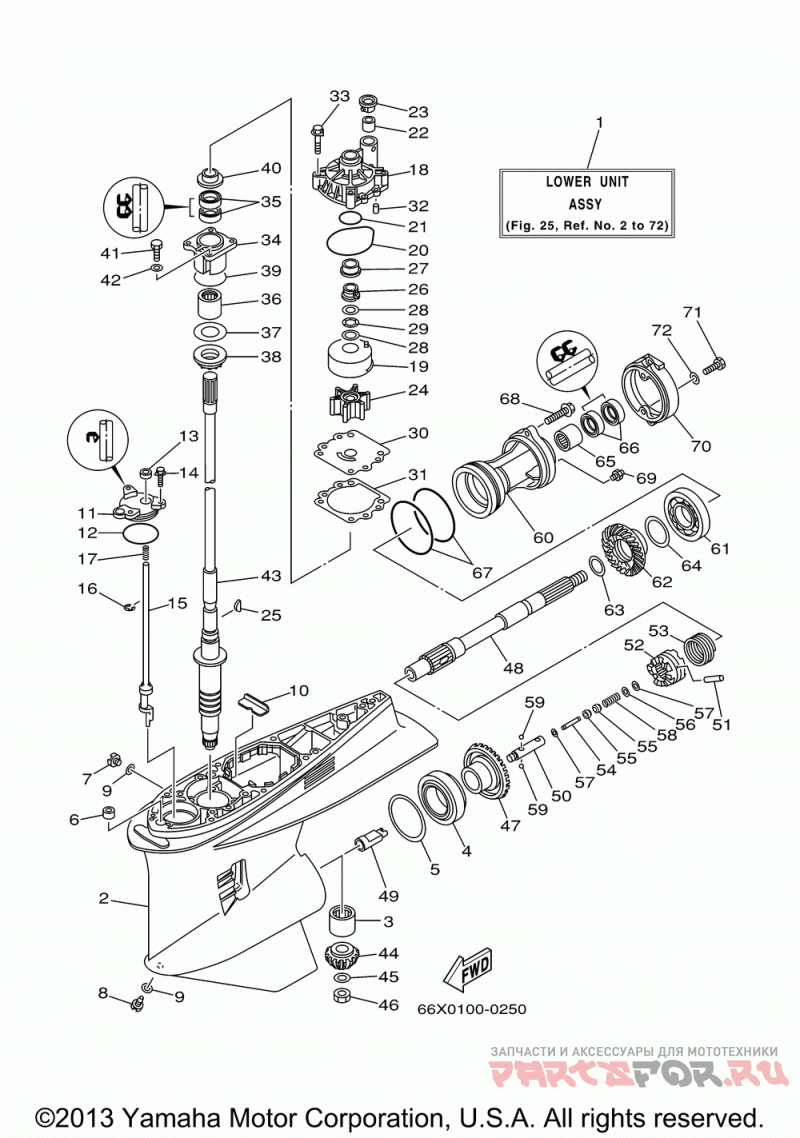

Корпус редуктора 1

Yamaha VX200TLRZ/VX225TLRZ

Yamaha
#oem кодцена
1
66K-45300-12-NA
Lower Unit Assy (vx)
2
61A-45301-10-NA
Casing, Lower (vx)
3
93311-83280-00
Ball Bearing (vx)
4
93332-000W1-00
Bearing, Taprd #32 (vx)
5
61A-45567-10-00
Shim (t:0.12mm) (t:0.12mm) Ur (vx)
5
61A-45567-00-00
Shim (t:0.10mm) (t:0.10mm) Ur (vx)
5
61A-45567-20-00
Shim (t:0.15mm) (t:0.15mm) Ur (vx)
5
61A-45567-60-00
Shim (t:0.50mm) (t:0.50mm) Ur (vx)
5
61A-45567-50-00
Shim (t:0.40mm) (t:0.40mm) Ur (vx)
5
61A-45567-30-00
Shim (t:0.18mm) (t:0.18mm) Ur (vx)
5
61A-45567-40-00
Shim (t:0.30mm) (t:0.30mm) Ur (vx)
6
663-44366-00-00
Water Seal (vx)
7
90340-08002-00
Plug, Straight Screw (vx)
8
688-45341-10-00
Plug, Drain (vx)
9
90430-08020-00
Gasket (vx) (10 Per Pack)
10
61A-45376-00-00
Guide, Seal Damper (vx)
11
61A-45321-01-00
Plate (vx)
12
93210-65752-00
O-ring (2hj) (vx)
13
93106-09014-00
Oil Seal, Dd-type (vx)
14
90119-06M10-00
Bolt, With Washer (vx)
15
60V-44150-00-00
Shift Cam Assy (vx)
17
90501-11M10-00
Spring, Compression (vx)
18
61A-44311-01-00
Housing, Water Pump (vx)
19
61A-44322-02-00
Insert, Cartridge (vx)
20
93210-86M38-00
O-ring (vx)
21
93210-37M67-00
O-ring (vx) (5 Per Pack)
22
6E5-44365-00-00
Water Seal (vx)
23
6E5-44312-00-00
Cover, Wtr.pump Hsg (vx)
24
6E5-44352-01-00
Impeller (vx)
25
90280-04M05-00
Key, Woodruff (vx)
26
61A-45538-00-00
Spacer 1 (vx)
27
61A-45527-00-00
Collar, Drive Shaft (vx)
28
90201-22M01-00
Washer, Plate (vx) (5 Per Pack)
29
90206-22M19-00
Washer, Wave (vx)
30
6G5-44323-01-00
Outer Plate, Cartrid (vx)
31
6E5-44315-A0-00
Gasket, Water Pump (vx)
32
93606-12019-00
Pin, Dowel (vx) (5 Per Pack)
33
90119-08M14-00
Bolt, With Washer (vx)
34
61A-45331-00-9S
Housing, Bearing (vx)
35
93101-28M16-00
Oil Seal, S-type (vx)
36
93315-430V5-00
Bearing, Cyl.#15 (vx)
37
61A-45587-00-00
Shim (t:0.10mm) (t:0.10mm) Ur (vx)
37
61A-45587-10-00
Shim (t:0.12mm) (t:0.12mm) Ur (vx)
37
61A-45587-20-00
Shim (t:0.15mm) (t:0.15mm) Ur (vx)
37
61A-45587-30-00
Shim (t:0.18mm) (t:0.18mm) Ur (vx)
37
61A-45587-40-00
Shim (t:0.30mm) (t:0.30mm) Ur (vx)
37
61A-45587-50-00
Shim (t:0.40mm) (t:0.40mm) Ur (vx)
37
61A-45587-60-00
Shim (t:0.50mm) (t:0.50mm) Ur (vx)
38
93341-93020-00
Bearing (vx)
39
93210-54534-00
O-ring (vx)
40
6E5-45344-00-00
Cover, Oil Seal (vx)
41
97095-08025-00
Bolt (vx)
42
92990-08600-00
Washer (vx) (5 Per Pack)
43
66K-45501-00-00
Drive Shaft Comp. (vx)
44
61A-45551-03-00
Pinion (16t) (vx)
45
90201-16M00-00
Washer, Plate (vx)
46
90170-16M19-00
Nut, Hexagon (vx)
47
61A-45560-03-00
Gear (29t) (vx)
48
69J-45611-00-00
Shaft, Propeller (vx)
49
61A-45641-02-00
Shifter (vx)
50
61A-45634-01-00
Slide, Shaft (vx)
51
61A-45632-00-00
Cross, Pin (vx)
52
61A-45631-03-00
Clutch, Dog (vx)
53
61A-45633-00-00
Ring, Cross Pin (vx)
54
6H1-45668-00-00
Shaft Free (vx)
55
61A-45635-00-00
Plunger, Shift (vx)
56
90201-02M00-00
Washer, Plate (vx)
57
90183-02M03-00
Nut, Spring (vx) (5 Per Pack)
58
90501-10M77-00
Spring, Compress. (vx)
59
93501-04011-00
Ball 1/4 (vx) (5 Per Pack)
60
61A-45332-02-94
Housing, Bearing (vx)
61
93306-210U0-00
Bearing (vx)
62
61A-45571-00-00
Gear 2 (29t) (vx)
63
90201-31M00-00
Washer, Plate (vx)
64
61A-45577-00-00
Shim (t:0.10mm) (t:0.10mm) Ur (vx)
64
61A-45577-10-00
Shim (t:0.12mm) (t:0.12mm) Ur (vx)
64
61A-45577-20-00
Shim (t:0.15mm) (t:0.15mm) Ur (vx)
64
61A-45577-30-00
Shim (t:0.18mm) (t:0.18mm) Ur (vx)
64
61A-45577-40-00
Shim (t:0.30mm) (t:0.30mm) Ur (vx)
64
61A-45577-50-00
Shim (t:0.40mm) (t:0.40mm) Ur (vx)
64
61A-45577-60-00
Shim (t:0.50mm) (t:0.50mm) Ur (vx)
65
93315-43061-00
Bearing (vx)
66
93101-30M17-00
Oil Seal, S-type (vx)
67
93211-04384-00
O-ring (vx)
68
90105-08M48-00
Bolt, Washer Based (vx)
69
93700-09M00-00
Nipple, Grease (vx)
70
61A-45361-01-8D
Cap, Lower Casing (vx)
71
97095-08020-00
Bolt (vx)
72
92990-08600-00
Washer (vx) (5 Per Pack)
