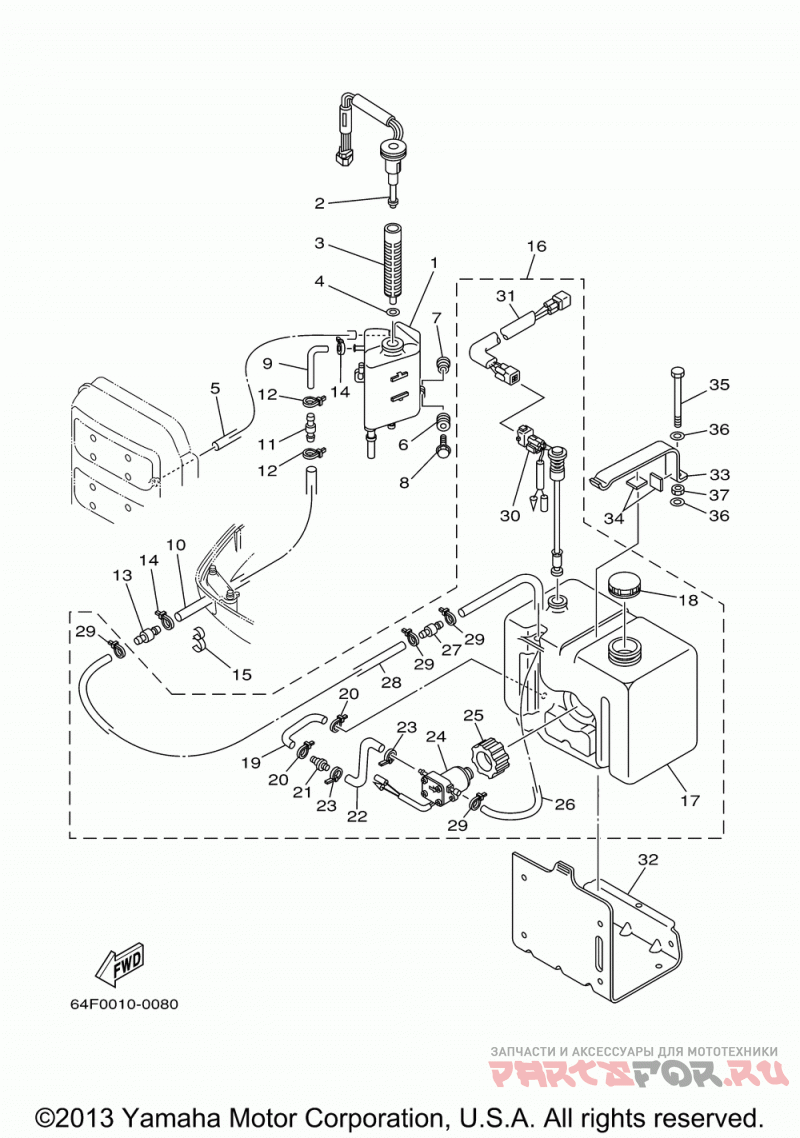

Маслянный банк

Yamaha V150TLRZ

Yamaha
#oem кодцена
1
6E5-21750-05-00
Oil Tank Assy (64k0)
2
6R3-85730-04-00
Oil Level Gauge Assy (64k0)
3
6E5-13411-00-00
Strainer, Oil (64k0)
4
6E5-13414-00-00
Gasket, Strnr Cover (64k0) (5 Per Pack)
5
90445-05M07-00
Hose (l380) (64k0)
6
6A0-82317-00-00
Damper, Ign Coil (64k0)
7
90387-06119-00
Collar (64k0)
8
90119-06M95-00
Bolt, With Washer (64k0)
9
64E-24323-00-00
Pipe 12 (64k0)
10
90445-12M05-00
Hose (l2400) (64k0)
11
6E5-24379-00-00
Pipe, Joint (64k0)
12
90465-10098-00
Clamp (64k0)
13
6E5-24379-00-00
Pipe, Joint (64k0)
14
90465-10098-00
Clamp (64k0)
15
90464-13M34-00
Clamp (64k0)
16
6E5-21708-10-00
Sub Oil Tank Assy. Ap (64k0)
17
6E5-21733-20-00
Sub Tank, Oil (10.5l (10.5l) (64k0)
18
6E5-21770-03-00
Cap Assy, Oil Tank (64k0)
19
6E5-24322-00-00
Pipe (64k0)
20
90465-10098-00
Clamp (64k0)
21
646-24251-02-00
Strainer 1 (64k0)
22
6E5-24319-01-00
Pipe, Oil (64k0)
23
90465-10098-00
Clamp (64k0)
24
6E5-81900-01-00
Motor Pump Assy (64k0)
25
6E5-81922-00-00
Grommet (64k0)
26
6E5-24321-01-00
Pipe 10 (64k0)
27
6E5-24379-00-00
Pipe, Joint (64k0)
28
90445-11M81-00
Hose (l3000) (64k0)
29
90465-10098-00
Clamp (64k0)
30
6E5-85720-06-00
Oil Level Gauge Assy (64k0)
31
6R3-85721-30-00
Oil, Trim, Ext., 9.8 (l=3.0m) (64k0)
32
6E5-21734-01-33
Hldr, Oil Sub Tank Ap (64k0)
33
6E5-21798-01-33
Bracket, Damper Ap (64k0)
34
6E5-21746-00-00
Damper Ap (64k0)
35
97080-06100-00
Bolt Ap (64k0)
36
92990-06600-00
Washer Ap (64k0) (5 Per Pack)
37
95380-06600-00
Nut Ap (64k0) (5 Per Pack)
