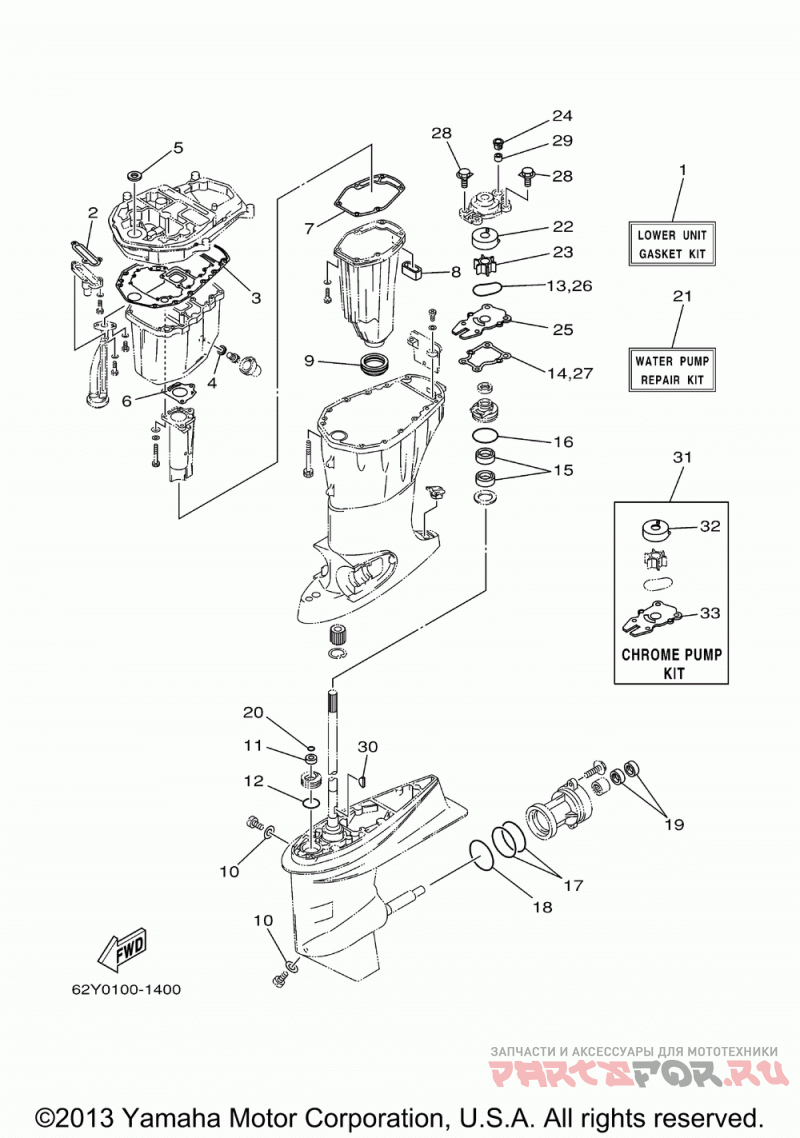

Repair kit 3 f50tlrz

Yamaha T50TLRZ/F50TLRZ

Yamaha
#oem кодцена
1
62Y-W0001-21-00
Lower Unit Gasket Ki (f50)
2
62Y-13475-00-00
Gasket (f50)
2
62Y-13475-00-00
Gasket (f50)
3
62Y-15312-10-00
Gasket, Oil Pan (f50)
3
62Y-15312-10-00
Gasket, Oil Pan (f50)
4
90430-14M09-00
Gasket (f50)
4
90430-14M09-00
Gasket (f50)
5
93103-18011-00
Oil Seal (f50)
5
93103-18011-00
Oil Seal (f50)
6
67C-41133-00-00
Gasket, Exhaust Ma (f50)
6
67C-41133-00-00
Gasket, Exhaust Ma (f50)
7
6BG-41134-00-00
Gasket, Exhaust Mani (f50)
7
6BG-41134-00-00
Gasket, Exhaust Mani (f50)
8
62Y-45127-00-00
Seal (f50)
8
62Y-45127-00-00
Seal (f50)
9
663-45123-00-00
Gasket, Muffler (f50)
9
663-45123-00-00
Gasket, Muffler (f50)
10
90430-08020-00
Gasket (f50) (10 Per Pack)
10
90430-08020-00
Gasket (f50) (10 Per Pack)
11
93106-09014-00
Oil Seal, Dd-type (f50)
11
93106-09014-00
Oil Seal, Dd-type (f50)
12
93210-33MG4-00
O-ring (f50)
13
93210-59MG7-00
O-ring (f50)
13
93210-59MG7-00
O-ring (f50)
14
63D-44316-00-00
Gasket, Water Pump (f50)
14
63D-44316-00-00
Gasket, Water Pump (f50)
15
93101-25M57-00
Oil Seal, S-type (f50)
15
93101-25M57-00
Oil Seal, S-type (f50)
16
93210-48MG8-00
O-ring (f50)
16
93210-48MG8-00
O-ring (f50)
17
93210-74775-00
O-ring (f50)
17
93210-74775-00
O-ring (f50)
18
93210-69MG6-00
O-ring (f50)
18
93210-69MG6-00
O-ring (f50)
19
93101-22067-00
Oil Seal, S-type (f50)
19
93101-22067-00
Oil Seal, S-type (f50)
20
93210-07540-00
O-ring (f50)
20
93210-07540-00
O-ring (f50)
21
63D-W0078-01-00
Water Pump Rep.kit (f50)
21
63D-W0078-01-00
Water Pump Rep.kit (f50)
22
63D-44322-00-00
Insert Cartridge (f50)
22
63D-44322-00-00
Insert Cartridge (f50)
23
6H3-44352-00-00
Impeller (f50)
23
6H3-44352-00-00
Impeller (f50)
24
63D-44312-00-00
Cover, Wtr.pump Hsg (f50)
24
63D-44312-00-00
Cover, Wtr.pump Hsg (f50)
25
63D-44323-00-00
Outer Plate, Cart. (f50)
25
63D-44323-00-00
Outer Plate, Cart. (f50)
26
93210-59MG7-00
O-ring (f50)
26
93210-59MG7-00
O-ring (f50)
27
63D-44316-00-00
Gasket, Water Pump (f50)
27
63D-44316-00-00
Gasket, Water Pump (f50)
28
90119-08M15-00
Bolt, W/washer (f50)
28
90119-08M15-00
Bolt, W/washer (f50)
29
663-44366-00-00
Water Seal (f50)
29
663-44366-00-00
Water Seal (f50)
30
90280-03024-00
Key, Woodruff (f50)
30
90280-03024-00
Key, Woodruff (f50)
31
63D-W0078-0A-00
Chrome Pump Kit (f50)
31
63D-W0078-0A-00
Chrome Pump Kit (f50)
32
63D-44322-40-00
Insert, Cartridge (f50)
32
63D-44322-40-00
Insert, Cartridge (f50)
33
63D-44323-40-00
Outer Plate, Cartr. (f50)
33
63D-44323-40-00
Outer Plate, Cartr. (f50)
