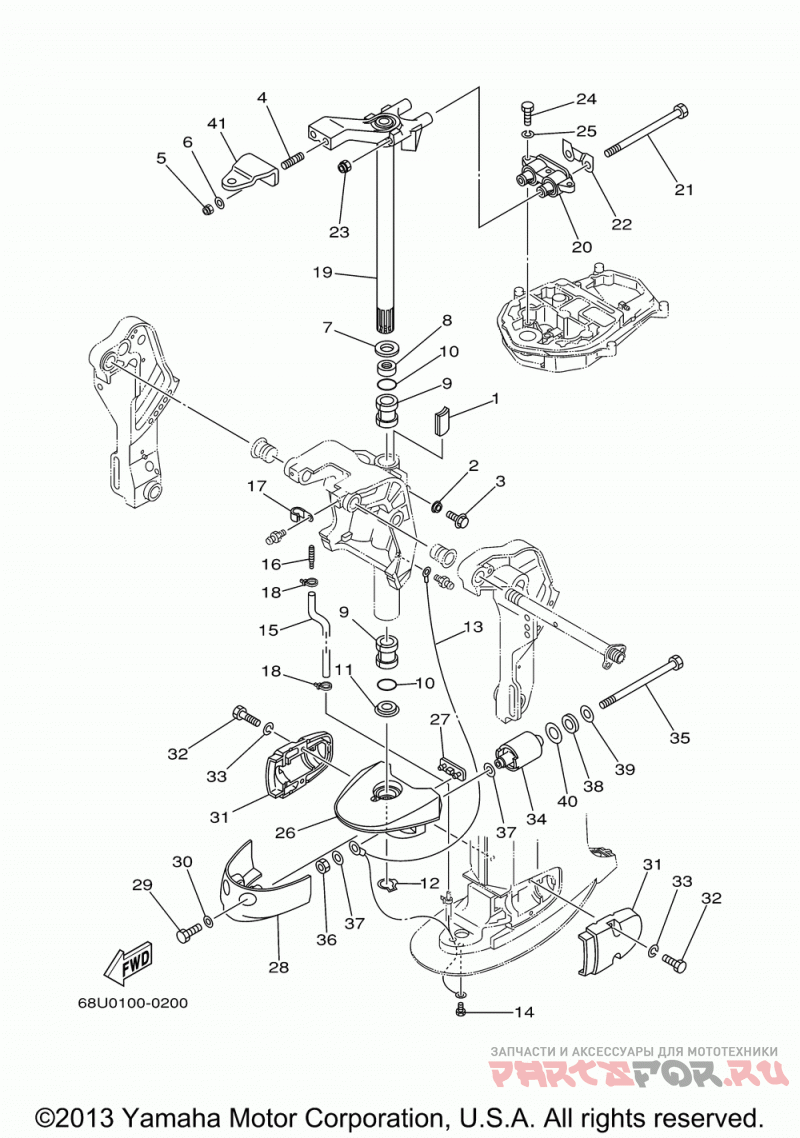

Крепление 2

Yamaha T25TLRZ

Yamaha
#oem кодцена
1
6J8-42528-00-00
Piece, Friction (tr)
2
689-43373-01-00
Seal (tr)
3
90105-06M18-00
Bolt, Washer Based (tr)
4
90116-10064-00
Bolt, Stud (tr)
5
90185-10027-00
Nut, Self-locking (tr)
6
92990-10600-00
Washer (tr) (5 Per Pack)
7
90201-30M00-00
Washer, Plate (tr)
8
90386-30M78-00
Bush, Spec'l Nylon (tr)
9
90386-30M77-00
Bush, Spec'l Nylon (tr)
10
93210-29M94-00
O-ring (tr)
11
90386-30M60-00
Bush, Spec'l Nylon (tr)
12
93410-28M06-00
Circlip, S-type (tr)
13
67C-82127-10-00
Wire, Lead 2 (tr)
14
97885-06008-00
Screw, Pan Head (tr)
15
90445-07M53-00
Hose (l700) (tr)
16
6E5-83558-00-00
End, Nipple (tr)
17
90465-08028-00
Clamp (tr)
18
90465-10098-00
Clamp (tr)
19
68U-42510-10-4D
Steering Bracket Ass (tr)
20
67C-44514-10-94
Mount Damper, Upper (tr)
21
90109-08229-00
Bolt (tr)
22
66T-44526-30-00
Plate (tr)
23
90185-08018-00
Nut, Self-locking (tr)
24
97080-08030-00
Bolt (tr)
25
92990-08100-00
Washer, Spring (tr)
26
67C-44551-10-8D
Housing, Lower Mount (tr)
27
67C-44575-00-00
Damper, Lower Moun (tr)
28
67C-44553-00-8D
Cover, Lower Mount (tr)
29
97095-08020-00
Bolt (tr)
30
92990-08600-00
Washer (tr) (5 Per Pack)
31
67C-44552-01-8D
Housing, Lower Mount (tr)
32
97080-08030-00
Bolt (tr)
33
92990-08100-00
Washer, Spring (tr)
34
68U-44555-11-00
Mount Damper, Lower L (tr)
35
90109-12MA3-00
Bolt (tr)
36
95380-12700-00
Nut (tr)
37
90201-12M16-00
Washer, Plate (tr)
38
90202-21100-00
Washer, Plate (tr)
39
90201-13M19-00
Washer, Plate (tr)
40
90201-22M05-00
Washer, Plate (tr)
41
65W-48511-01-00
Hook, Steering (tr)
