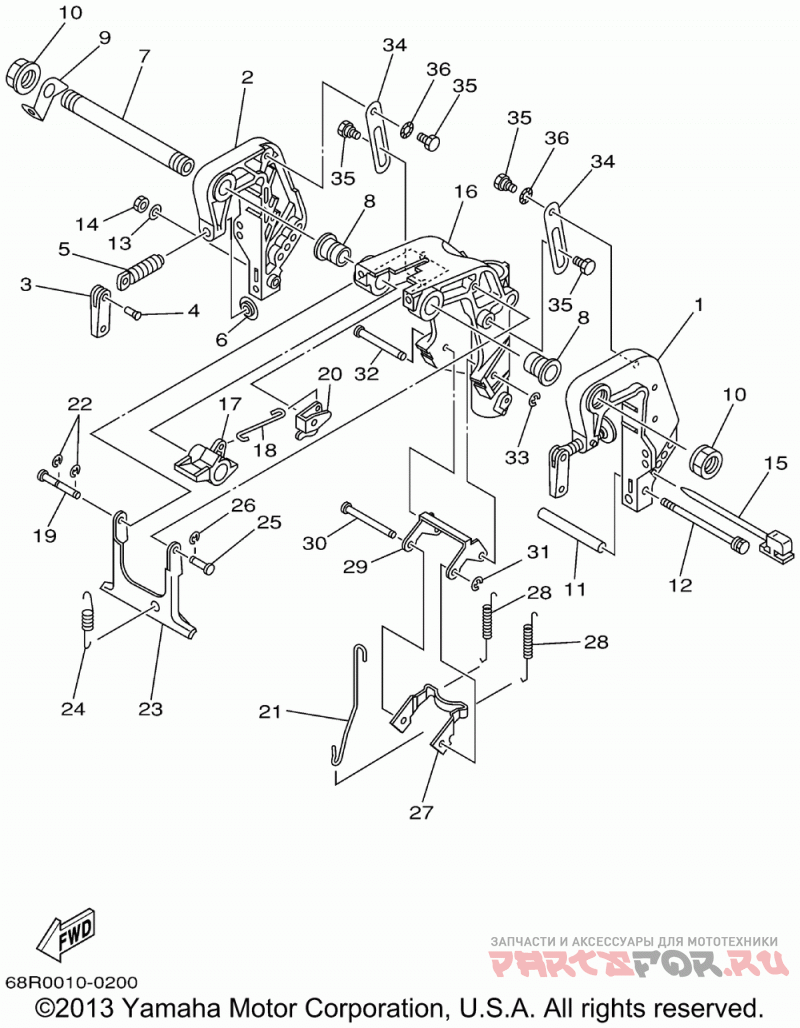

Кронштейн 1

Yamaha F8MLHZ/F6MLHZ/F8MSHZ/F6MSHZ

Yamaha
#oem кодцена
1
60R-WG311-00-4D
Bracket, Clamp (mh)
2
60R-WG312-00-4D
Bracket Clamp/screw (mh)
3
6E0-43118-01-00
Handle, Transom Clp (mh)
4
90243-04M01-00
Pin (mh)
5
6N0-G3116-00-00
Screw, Trnsm. Clamp (mh)
6
648-43114-01-00
Pad, Transom Clamp (mh)
7
63V-43131-00-00
Bolt, Clamp Bracket L:214mm(mh)
8
90386-22MA4-00
Bush (mh)
9
66R-43113-00-00
Plate, Clamp Brack (mh)
10
90185-22007-00
Nut, Self-locking (mh)
11
90387-06M13-00
Collar (mh)
12
90101-06M18-00
Bolt (6l5) (mh)
13
92990-06600-00
Washer (mh) (5 Per Pack)
14
95380-06700-00
Nut (mh)
15
6L2-43160-00-00
Tilt Rod Assy (mh)
16
60R-G3311-10-4D
Bracket, Swivel 1 Ur L(mh)
16
60R-G3311-00-4D
Bracket, Swivel 1 Ur S(mh)
17
60R-G3631-00-00
Lever, Tilt (mh)
18
60R-G3616-00-00
Rod, Tilt Lock (mh)
19
68T-43646-00-00
Shaft, Lever (mh)
20
68T-43641-00-00
Lever, Tilt (mh)
21
68T-43617-00-00
Rod, Tilt Lock (mh)
22
99080-05600-00
Circlip (mh)
23
68T-43350-00-00
Receiver Assy (mh)
24
90506-20005-00
Spring, Tension Ur L(mh)
24
90506-18M41-00
Spring, Tension Ur S(mh)
25
63V-43191-00-00
Shaft, Stopper (mh)
26
99080-05600-00
Circlip (mh)
27
68T-43614-00-00
Plate, Tilt Lock (mh)
28
90506-20M42-00
Spring, Tension Ur S(mh)
28
90506-23003-00
Spring, Tension Ur L(mh)
29
68T-43615-00-00
Plate, Tilt Lock (mh)
30
68T-43611-00-00
Shaft, Tilt Lock (mh)
31
99080-04600-00
Clip (mh)
32
68T-43659-00-00
Shaft, Reverse Lock (mh)
33
99080-05600-00
Circlip (mh)
34
68T-43627-00-00
Stopper (mh)
35
90109-06M84-00
Bolt (mh)
36
90206-10M24-00
Washer, Wave (mh)
