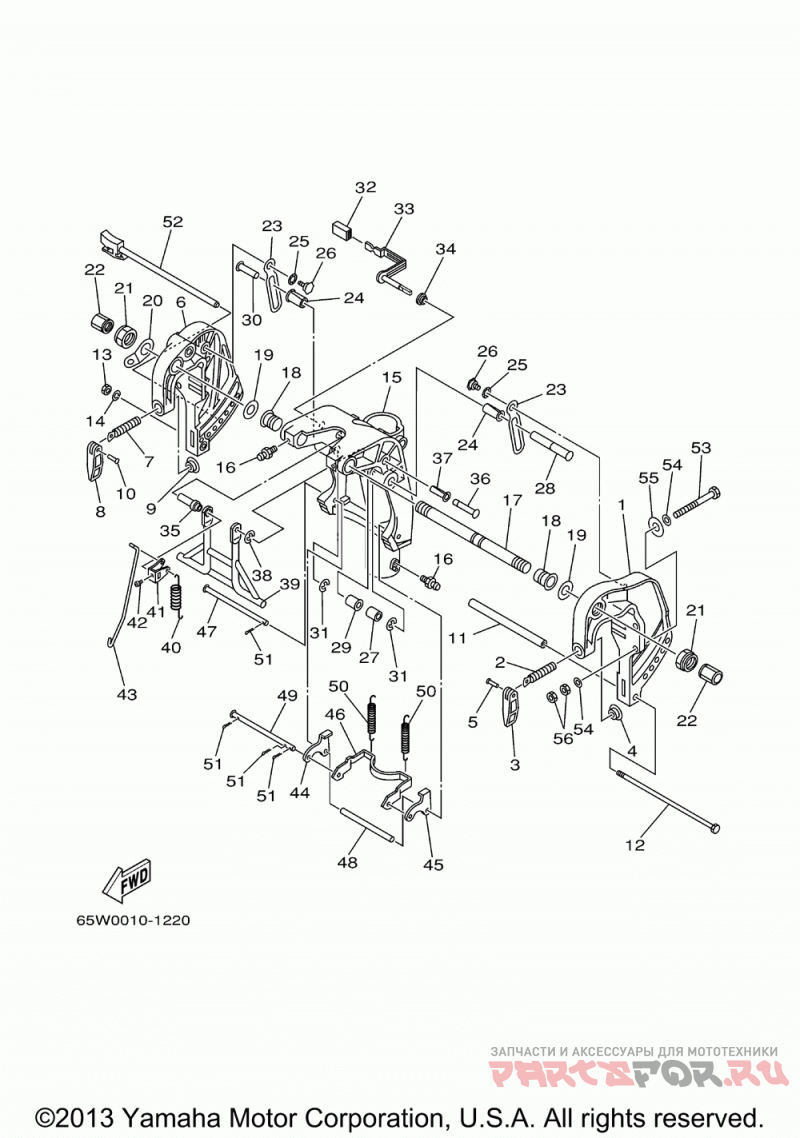

Bracket 1 for mh eh e

Yamaha F25MLHZ/F25ELRZ/F25ESRZ/F25MSHZ/F25ESHZ/F25TLRZ/F25ELHZ

Yamaha
#oem кодцена
1
65W-43111-02-4D
Bracket, Clamp (m/t)
2
90149-14M12-00
Screw, Spec'l Shape (m/t)
3
663-43118-01-4D
Handle, Transom Clp (m/t)
4
648-43114-01-00
Pad, Transom Clamp (m/t)
5
90243-04007-00
Pin (m/t)
6
65W-43112-02-4D
Bracket, Clamp (m/t)
7
90149-14M12-00
Screw, Spec'l Shape (m/t)
8
663-43118-01-4D
Handle, Transom Clp (m/t)
9
648-43114-01-00
Pad, Transom Clamp (m/t)
10
90243-04007-00
Pin (m/t)
11
90387-08M29-00
Collar (m/t)
12
90101-08M76-00
Bolt (m/t)
13
99780-08600-00
Nut, Hex. (m/t)
14
92990-08100-00
Washer, Spring (m/t)
15
65W-43311-10-4D
Bracket, Swivel Ur L (m/t)
15
65W-43311-00-4D
Bracket, Swivel Ur S (m/t)
16
93700-06M03-00
Nipple, Grease Ur Mh, Eh (m/t)
17
63D-43131-01-00
Bolt, Clamp Bracket (m/t)
18
90386-22M15-00
Bush, Spec'l Nylon (m/t)
19
90201-22M03-00
Washer, Plate (m/t)
20
6J8-43113-01-00
Plate, Clamp Brk (m/t)
21
90185-22007-00
Nut, Self-locking (m/t)
22
6G5-43145-01-00
Cap, Clamp Bracket (m/t)
23
65W-43627-01-00
Stopper (m/t)
24
90386-12M98-00
Bush (m/t)
25
90206-14M23-00
Washer, Wave (m/t)
26
90109-08M87-00
Bolt (m/t)
27
90387-12M04-00
Collar (m/t)
28
90249-12M39-00
Pin (m/t)
29
90386-12MA0-00
Bush (m/t)
30
90249-12M34-00
Pin (m/t)
31
99080-10600-00
Circlip (m/t)
32
682-43318-01-00
Cover (m/t)
33
65W-43630-11-00
Tilt Lever Assy (m/t)
34
90386-07MA2-00
Bush (m/t)
35
90387-07M05-00
Collar (m/t)
36
90249-10M31-00
Pin (m/t)
37
90386-10M99-00
Bush (m/t)
38
99080-08600-00
Circlip (m/t)
39
66T-43350-02-00
Receiver Assy (m/t)
40
90506-20M37-00
Spring, Tension (m/t)
41
66T-43631-11-00
Lever, Tilt 1 (m/t)
42
98585-05006-00
Screw, Spec'l Shape (m/t)
43
65W-43616-00-00
Rod, Tilt Lock (m/t)
44
65W-43614-01-00
Plate, Tilt Lock (m/t)
45
65W-43615-01-00
Plate, Tilt Lock (m/t)
46
65W-43613-00-00
Arm, Tilt Lock (m/t)
47
90249-07M32-00
Pin (m/t)
48
90387-07M29-00
Collar (m/t)
49
90249-07M33-00
Pin (m/t)
50
90506-30M00-00
Spring, Tension (m/t)
51
91490-20015-00
Pin, Cotter (m/t)
52
65W-43160-00-00
Tilt Rod Assy (m/t)
53
90101-10M58-00
Bolt E (m/t)
54
92990-10600-00
Washer E (m/t) (5 Per Pack)
55
90201-12426-00
Washer, Plate E (m/t)
56
95380-10600-00
Nut E (m/t)
