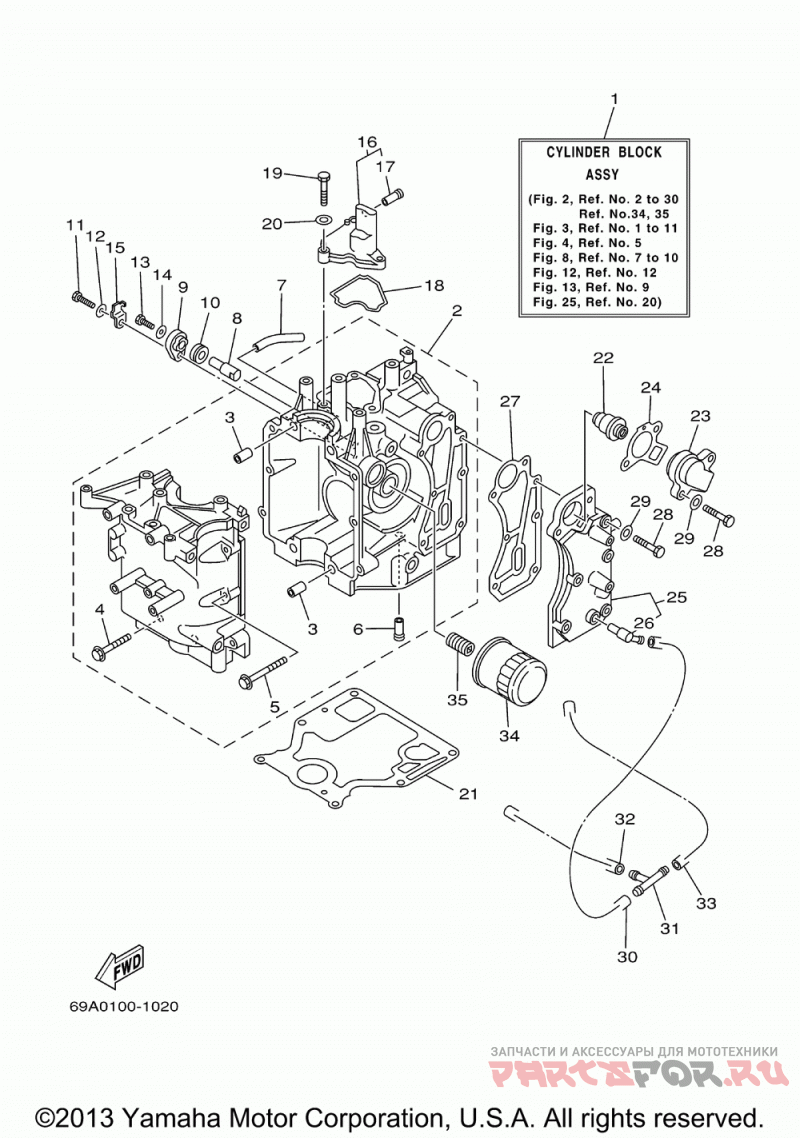

Цилиндр и картер 1

Yamaha F15PLRZ/F15PLHZ

Yamaha
#oem кодцена
1
66M-W009B-04-1S
Cylinder Block Assy (pr)
2
66M-15100-03-1S
Crankcase Assy (pr)
3
99530-10114-00
Pin, Dowel (pr) (5 Per Pack)
4
90119-08M66-00
Bolt, With Washer (pr)
5
90119-06M14-00
Bolt, With Washer (pr)
6
6E5-24377-00-00
Pipe, Joint 3 (pr)
7
90445-10752-00
Hose (l65) (pr)
8
66M-11325-00-00
Anode (pr)
9
66M-11327-00-94
Anode Cover (pr)
10
66M-11328-00-00
Grommet, Anode (pr)
11
97080-06020-00
Bolt(7u8) (pr) (5 Per Pack)
12
92990-06600-00
Washer (pr) (5 Per Pack)
13
97095-05012-00
Bolt (6a4) (pr)
14
92990-05600-00
Washer (pr) (5 Per Pack)
15
66M-12535-00-00
Plate (pr)
16
66M-11168-00-1S
Cover, Breather (pr)
17
6E5-24377-00-00
Pipe, Joint 3 (pr)
18
66M-11357-00-00
Seal, Cylinder 3 (pr)
19
97080-06020-00
Bolt(7u8) (pr) (5 Per Pack)
20
92990-06600-00
Washer (pr) (5 Per Pack)
21
66M-11351-10-00
Gasket, Cylinder (pr)
22
66M-12411-01-00
Thermostat (pr)
23
6H3-12413-00-1S
Cover, Thermostat (pr)
24
62Y-12414-00-00
Gasket, Cover (pr)
26
676-11372-00-00
Nipple, Hose (pr)
27
66M-41114-01-00
Gasket, Exhaust Oute (pr)
28
97013-06030-00
Bolt (pr)
29
92990-06600-00
Washer (pr) (5 Per Pack)
30
90445-094K7-00
Hose (l65) (pr)
31
688-24378-00-00
Pipe, Joint 4 (pr)
32
90445-092K1-00
Hose (l170) (pr)
33
90445-092K1-00
Hose (l300) (pr)
34
5GH-13440-30-00
Element Assy, Oil Cl (pr)
35
90401-20M00-00
Bolt, Union (pr)
