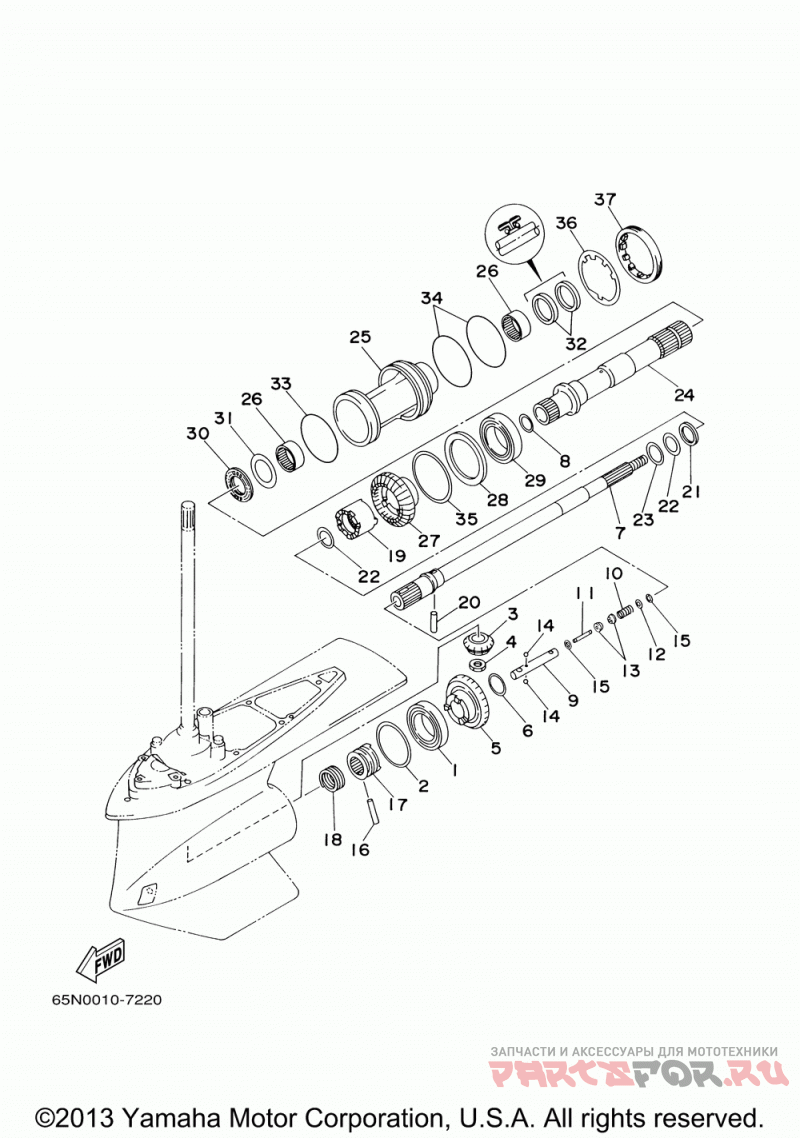

Lower casing drive 2a

Yamaha DX150TLRZ

Yamaha
#oem кодцена
1
93332-00048-00
Bearing, Taprd #32 (67n0)
2
6G5-45567-60-00
Shim (t:0.50mm) (t:0.50mm) Ur (67n0)
2
6G5-45567-40-00
Shim (t:0.30mm) (t:0.30mm) Ur (67n0)
2
6G5-45567-10-00
Shim (t:0.12mm) (t:0.12mm) Ur (67n0)
2
6G5-45567-20-00
Shim (t:0.15mm) (t:0.15mm) Ur (67n0)
2
6G5-45567-30-00
Shim (t:0.18mm) (t:0.18mm) Ur (67n0)
2
6G5-45567-50-00
Shim (t:0.40mm) (t:0.40mm) Ur (67n0)
2
6G5-45567-01-00
Shim (t:0.10mm) (t:0.10mm) Ur (67n0)
3
65N-45551-00-00
Pinion (13t) (67n0)
4
90170-16M01-00
Nut, Hexagon (67n0)
5
65N-45560-00-00
Gear 1 Assy (26t) (67n0)
6
90201-35M02-00
Washer, Plate (67n0)
7
65N-45611-00-00
Shaft, Propeller (67n0)
8
90201-28M03-00
Washer, Plate (67n0)
9
65N-45634-00-00
Slide, Shaft (67n0)
10
90501-10M77-00
Spring, Compress. (67n0)
11
6H1-45668-00-00
Shaft Free (67n0)
12
90201-02M00-00
Washer, Plate (67n0)
13
61A-45635-00-00
Plunger, Shift (67n0)
14
93501-04011-00
Ball 1/4 (67n0) (5 Per Pack)
15
90183-02M03-00
Nut, Spring (67n0) (5 Per Pack)
16
90250-08M07-00
Pin, Straight (67n0)
17
65N-45631-00-00
Clutch, Dog (67n0)
18
6E5-45633-01-00
Ring, Cross Pin (67n0)
19
65N-45631-10-00
Clutch, Dog (67n0)
20
93606-42M22-00
Pin, Dowel (67n0)
21
90387-32M00-00
Collar (67n0)
22
90201-36M00-00
Washer, Plate (67n0)
23
93440-36M09-00
Circlip, Outer (67n0)
24
65N-45611-50-00
Shaft, Propeller (67n0)
25
65N-45332-00-94
Housing, Bearing (67n0)
26
93317-445U9-00
Bearing, Cyl. (67n0)
27
65N-45570-00-00
Gear 2 Assy (26t) (67n0)
28
65N-45576-00-00
Washer, Thrust (67n0)
29
93332-00048-00
Bearing, Taprd #32 (67n0)
30
93341-445V3-00
Bearing, Thrust (67n0)
31
65N-45578-00-50
Shim (t:0.50mm) Ur (67n0)
31
65N-45578-00-40
Shim (t:0.40mm) Ur (67n0)
31
65N-45578-00-30
Shim (t:0.30mm) Ur (67n0)
31
65N-45578-00-12
Shim (t:0.12mm) Ur (67n0)
31
65N-45578-00-15
Shim (t:0.15mm) Ur (67n0)
31
65N-45578-00-18
Shim (t:0.18mm) Ur (67n0)
31
65N-45578-00-00
Washer, Thrust (t:0.10mm) Ur (67n0)
32
93101-45M59-00
Oil Seal, S-type (67n0)
33
93210-98M33-00
O-ring (67n0)
34
93211-03MH9-00
O-ring (67n0)
35
65N-45577-60-00
Shim (t:0.50mm) (t:0.50mm) Ur (67n0)
35
65N-45577-20-00
Shim (t:0.15mm) (t:0.15mm) Ur (67n0)
35
65N-45577-00-00
Shim (t:0.10mm) Ur (67n0)
35
65N-45577-50-00
Shim (t:0.40mm) (t:0.40mm) Ur (67n0)
35
65N-45577-40-00
Shim (t:0.30mm) (t:0.30mm) Ur (67n0)
35
65N-45577-30-00
Shim (t:0.18mm) (t:0.18mm) Ur (67n0)
35
65N-45577-00-12
Shim (t:0.12mm) Ur (67n0)
36
65N-45383-00-00
Washer, Claw (67n0)
37
65N-45384-00-00
Nut, Spanner (specia (67n0)
