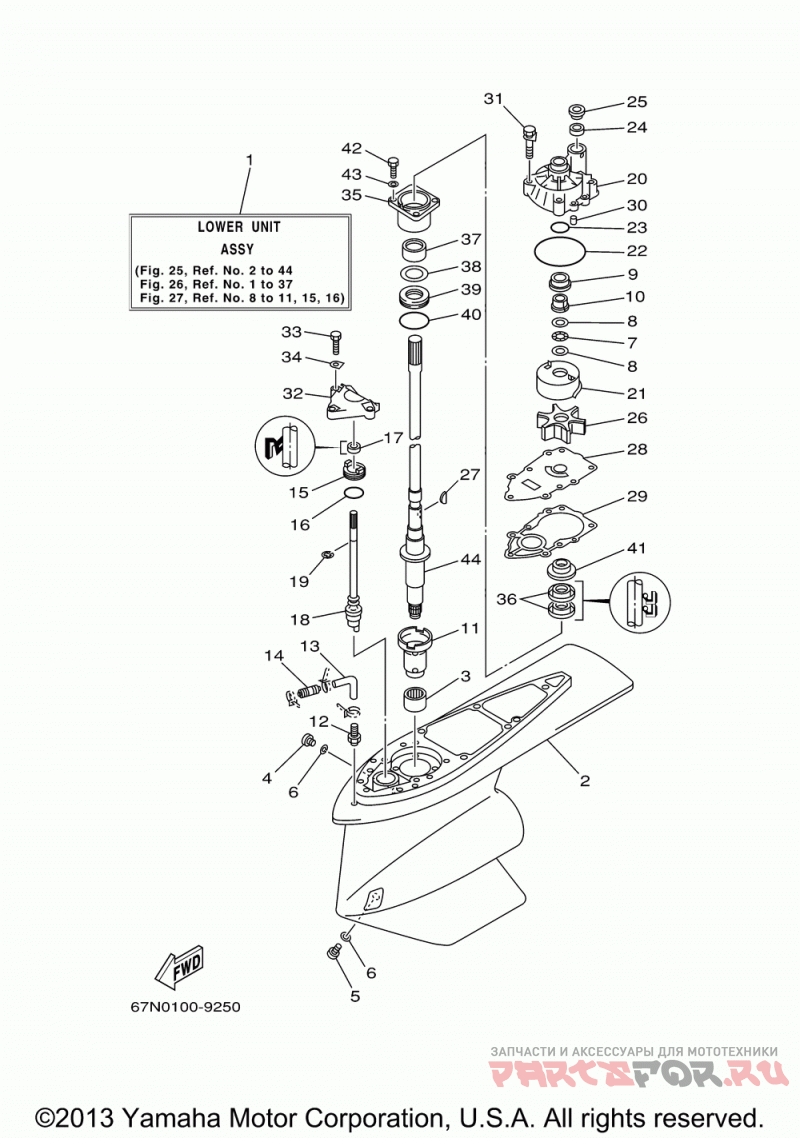

Корпус редуктора 1

Yamaha DX150TLRZ

Yamaha
#oem кодцена
1
65N-45300-01-NA
Lower Unit Assy Trp L (67n0)
1
65N-45300-01-NA
Lower Unit Assy Trp L (67n0)
2
65N-45301-00-NA
Lower Casing (67n0)
2
65N-45301-00-NA
Lower Casing (67n0)
3
93315-628U9-00
Bearing, Cyl.#15 (67n0)
3
93315-628U9-00
Bearing, Cyl.#15 (67n0)
4
90340-08002-00
Plug, Straight Screw (67n0)
5
688-45341-10-00
Plug, Drain (67n0)
5
688-45341-10-00
Plug, Drain (67n0)
6
90430-08020-00
Gasket (67n0) (10 Per Pack)
6
90430-08020-00
Gasket (67n0) (10 Per Pack)
7
90206-22M19-00
Washer, Wave (67n0)
7
90206-22M19-00
Washer, Wave (67n0)
8
90201-22M01-00
Washer, Plate (67n0) (5 Per Pack)
8
90201-22M01-00
Washer, Plate (67n0) (5 Per Pack)
9
61A-45527-00-00
Collar, Drive Shaft (67n0)
9
61A-45527-00-00
Collar, Drive Shaft (67n0)
10
61A-45538-00-00
Spacer 1 (67n0)
10
61A-45538-00-00
Spacer 1 (67n0)
11
65N-45536-00-00
Sleeve, Drive Shft (67n0)
11
65N-45536-00-00
Sleeve, Drive Shft (67n0)
12
6E5-45378-00-00
Nipple, Hose (67n0)
12
6E5-45378-00-00
Nipple, Hose (67n0)
13
90445-07MF2-00
Hose (l80) L (67n0)
13
90445-07MF2-00
Hose (l80) L (67n0)
14
6E5-83558-10-00
End, Nipple (67n0)
14
6E5-83558-10-00
End, Nipple (67n0)
15
65N-45321-00-00
Plate (67n0)
15
65N-45321-00-00
Plate (67n0)
16
93210-33M85-00
O-ring (67n0)
16
93210-33M85-00
O-ring (67n0)
17
93106-09014-00
Oil Seal, Dd-type (67n0)
17
93106-09014-00
Oil Seal, Dd-type (67n0)
18
65N-44150-00-00
Shift Cam Assy (67n0)
18
65N-44150-00-00
Shift Cam Assy (67n0)
20
61A-44311-01-00
Housing, Water Pump (67n0)
20
61A-44311-01-00
Housing, Water Pump (67n0)
21
61A-44322-02-00
Insert, Cartridge (67n0)
21
61A-44322-02-00
Insert, Cartridge (67n0)
22
93210-86M38-00
O-ring (67n0)
22
93210-86M38-00
O-ring (67n0)
23
93210-37M67-00
O-ring (67n0) (5 Per Pack)
23
93210-37M67-00
O-ring (67n0) (5 Per Pack)
24
6E5-44365-00-00
Water Seal (67n0)
24
6E5-44365-00-00
Water Seal (67n0)
25
6E5-44312-00-00
Cover, Wtr.pump Hsg (67n0)
26
6E5-44352-01-00
Impeller (67n0)
26
6E5-44352-01-00
Impeller (67n0)
27
90280-04M05-00
Key, Woodruff (67n0)
27
90280-04M05-00
Key, Woodruff (67n0)
28
65N-44323-00-00
Outer Plate, Cart. (67n0)
28
65N-44323-00-00
Outer Plate, Cart. (67n0)
29
65N-44315-A0-00
Gasket, Water Pump (67n0)
29
65N-44315-A0-00
Gasket, Water Pump (67n0)
30
93606-12019-00
Pin, Dowel (67n0) (5 Per Pack)
30
93606-12019-00
Pin, Dowel (67n0) (5 Per Pack)
31
90119-08M14-00
Bolt, With Washer (67n0)
31
90119-08M14-00
Bolt, With Washer (67n0)
32
65N-44312-00-00
Cover, Wtr.pump Hsg (67n0)
32
65N-44312-00-00
Cover, Wtr.pump Hsg (67n0)
33
97095-08035-00
Bolt (67n0)
33
97095-08035-00
Bolt (67n0)
34
90209-08M02-00
Washer, Spec'l Shape (67n0)
34
90209-08M02-00
Washer, Spec'l Shape (67n0)
35
6E5-45331-00-9S
Housing, Bearing (67n0)
35
6E5-45331-00-9S
Housing, Bearing (67n0)
36
93101-28M16-00
Oil Seal, S-type (67n0)
36
93101-28M16-00
Oil Seal, S-type (67n0)
37
93315-430V5-00
Bearing, Cyl.#15 (67n0)
37
93315-430V5-00
Bearing, Cyl.#15 (67n0)
38
6E5-45587-50-00
Shim (t:0.40mm) (t:0.40mm) Ur (67n0)
38
6E5-45587-50-00
Shim (t:0.40mm) (t:0.40mm) Ur (67n0)
38
6E5-45587-40-00
Shim (t:0.30mm) (t:0.30mm) Ur (67n0)
38
6E5-45587-40-00
Shim (t:0.30mm) (t:0.30mm) Ur (67n0)
38
6E5-45587-30-00
Shim (t:0.18mm) (t:0.18mm) Ur (67n0)
38
6E5-45587-30-00
Shim (t:0.18mm) (t:0.18mm) Ur (67n0)
38
6E5-45587-60-00
Shim (t:0.50mm) (t:0.50mm) Ur (67n0)
38
6E5-45587-60-00
Shim (t:0.50mm) (t:0.50mm) Ur (67n0)
38
6E5-45587-01-00
Shim 3 (t:0.10mm) Ur (67n0)
38
6E5-45587-01-00
Shim 3 (t:0.10mm) Ur (67n0)
38
6E5-45587-20-00
Shim (t:0.15mm) (t:0.15mm) Ur (67n0)
38
6E5-45587-20-00
Shim (t:0.15mm) (t:0.15mm) Ur (67n0)
38
6E5-45587-10-00
Shim (t:0.12mm) (t:0.12mm) Ur (67n0)
38
6E5-45587-10-00
Shim (t:0.12mm) (t:0.12mm) Ur (67n0)
39
93341-930V2-00
Bearing, Thrust (67n0)
39
93341-930V2-00
Bearing, Thrust (67n0)
40
93210-54534-00
O-ring (67n0)
41
6E5-45344-00-00
Cover, Oil Seal (67n0)
41
6E5-45344-00-00
Cover, Oil Seal (67n0)
42
97095-08025-00
Bolt (67n0)
42
97095-08025-00
Bolt (67n0)
43
92990-08600-00
Washer (67n0) (5 Per Pack)
43
92990-08600-00
Washer (67n0) (5 Per Pack)
44
65N-45501-00-00
Drive Shaft (67n0)
44
65N-45501-00-00
Drive Shaft (67n0)
