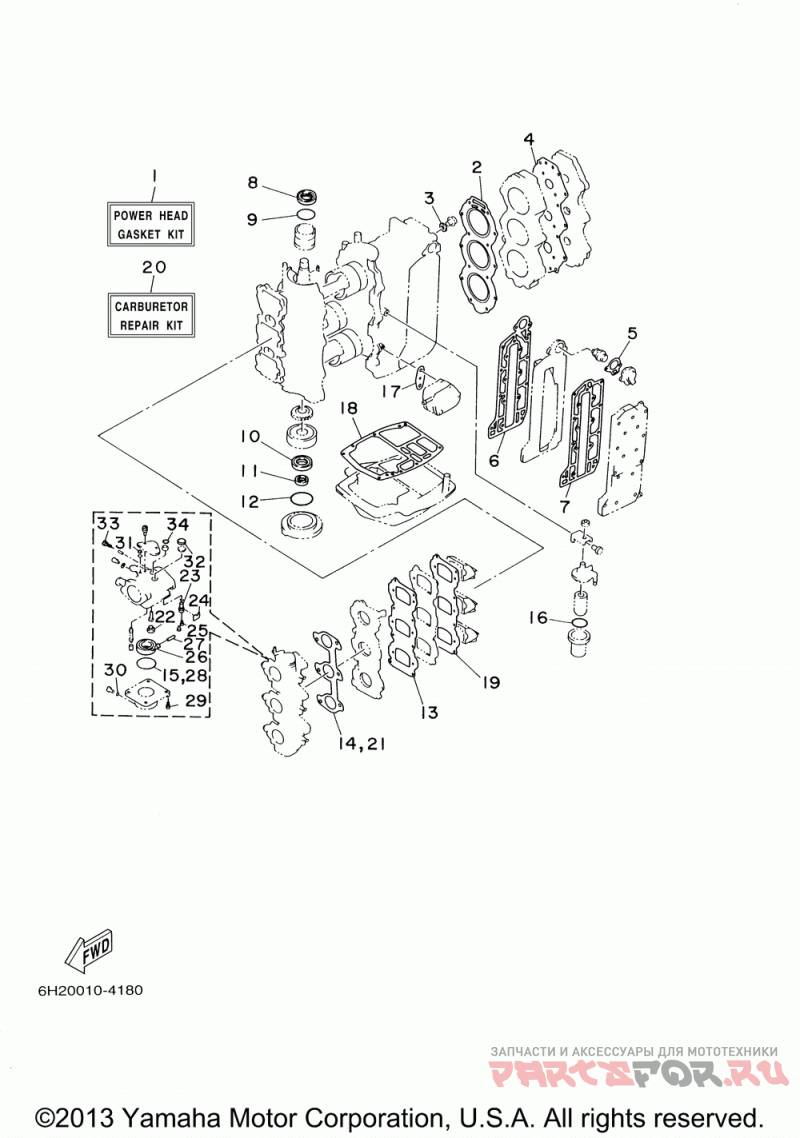

Repair kit 1 c60tlrz

Yamaha C70TLRZ/C60TLRZ

Yamaha
#oem кодцена
1
6H3-W0001-03-00
Gasket Kit C60 Manual Choke (c60)
1
6H3-W0001-03-00
Gasket Kit C60 Manual Choke (c60)
2
6H3-11181-A2-00
Gasket, Cylinder Hea (c60)
2
6H3-11181-A2-00
Gasket, Cylinder Hea (c60)
3
90430-14115-00
Gasket (c60)
3
90430-14115-00
Gasket (c60)
4
6H3-11193-A1-00
Gasket, Hd.cover 1 (c60)
4
6H3-11193-A1-00
Gasket, Hd.cover 1 (c60)
5
62Y-12414-00-00
Gasket, Cover (c60)
5
62Y-12414-00-00
Gasket, Cover (c60)
6
6H3-41112-A0-00
Gasket Exhaust (c60)
6
6H3-41112-A0-00
Gasket Exhaust (c60)
7
6H3-41114-A0-00
Gasket, Exh.cover (c60)
7
6H3-41114-A0-00
Gasket, Exh.cover (c60)
8
93102-36351-00
Oil Seal, Sd-type (c60)
8
93102-36351-00
Oil Seal, Sd-type (c60)
9
93210-46M16-00
O-ring (c60)
9
93210-46M16-00
O-ring (c60)
10
93102-30M23-00
Oil Seal, Sd-type (c60)
10
93102-30M23-00
Oil Seal, Sd-type (c60)
11
93106-18M01-00
Oil Seal, Dd-type (c60)
11
93106-18M01-00
Oil Seal, Dd-type (c60)
12
93210-65M50-00
O-ring (c60)
12
93210-65M50-00
O-ring (c60)
13
6H3-13621-A1-00
Gasket, Valve Seat (c60)
13
6H3-13621-A1-00
Gasket, Valve Seat (c60)
14
6H3-14198-A1-00
Gasket (c60)
14
6H3-14198-A1-00
Gasket (c60)
15
6G1-14984-00-00
Gasket, Float Chmbr (c60)
15
6G1-14984-00-00
Gasket, Float Chmbr (c60)
16
93210-32738-00
O-ring (c60) (5 Per Pack)
16
93210-32738-00
O-ring (c60) (5 Per Pack)
17
650-24431-A0-00
Gasket, Fuel Pump 1 (c60)
17
650-24431-A0-00
Gasket, Fuel Pump 1 (c60)
18
6H3-45113-A0-00
Gasket, Upper Casin (c60)
18
6H3-45113-A0-00
Gasket, Upper Casin (c60)
19
6H3-13622-A1-00
Gasket, Valve Seat (c60)
19
6H3-13622-A1-00
Gasket, Valve Seat (c60)
20
6H3-W0093-02-00
Carb Repair Kit C60 Manual Choke (c60)
20
6H3-W0093-02-00
Carb Repair Kit C60 Manual Choke (c60)
21
6H3-14198-A1-00
Gasket (c60)
21
6H3-14198-A1-00
Gasket (c60)
22
679-14966-00-00
Rubber Cap (c60)
22
679-14966-00-00
Rubber Cap (c60)
23
6H3-14590-01-00
Valve Seat (c60)
23
6H3-14590-01-00
Valve Seat (c60)
24
633-14159-00-00
Clip (c60)
25
676-14186-00-00
Pin, Float (c60)
25
676-14186-00-00
Pin, Float (c60)
26
6G1-14985-00-00
Float (c60)
26
6G1-14985-00-00
Float (c60)
27
688-14548-00-00
Pin, Float Arm (c60)
27
688-14548-00-00
Pin, Float Arm (c60)
28
6G1-14984-00-00
Gasket, Float Chmbr (c60)
28
6G1-14984-00-00
Gasket, Float Chmbr (c60)
29
97980-04114-00
Screw, W/washer (c60)
29
97980-04114-00
Screw, W/washer (c60)
30
93210-04230-00
O-ring (c60)
30
93210-04230-00
O-ring (c60)
31
663-14126-00-00
Gasket (c60)
31
663-14126-00-00
Gasket (c60)
32
688-14126-00-00
Gasket (c60)
32
688-14126-00-00
Gasket (c60)
33
692-14923-00-00
Screw, Pilot (c60)
33
692-14923-00-00
Screw, Pilot (c60)
34
93210-15M52-00
O-ring (c60)
34
93210-15M52-00
O-ring (c60)
