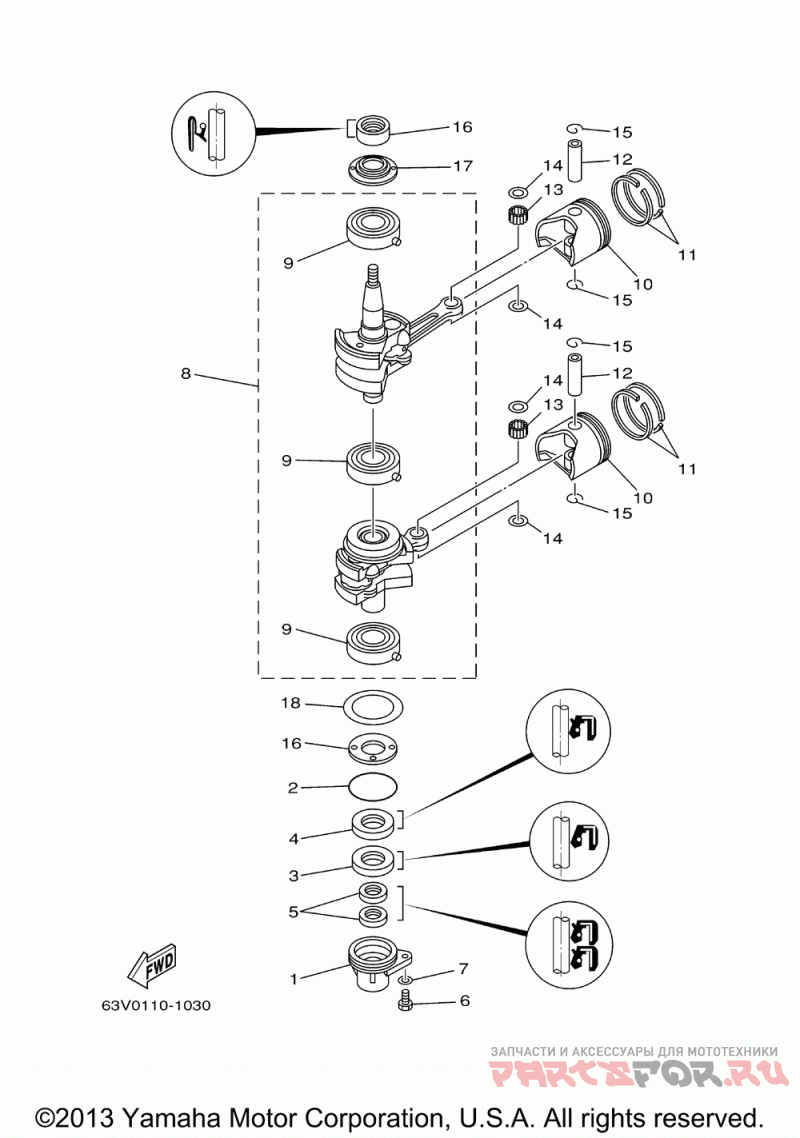

Коленчатый вал и Поршень

Yamaha 9.9MSHZ/15MSHKZ/15MSHZ/9.9MSHKZ

Yamaha
#oem кодцена
1
63V-15396-01-CA
Housing, Oil Seal (mh)
2
93210-46M16-00
O-ring (mh)
3
93101-25018-00
Oil Seal (mh)
4
93102-25M48-00
Oil Seal (mh)
5
93101-13018-00
Oil Seal (mh)
6
97095-06016-00
Bolt (ga1) (mh) (5 Per Pack)
7
92990-06600-00
Washer (mh) (5 Per Pack)
8
63V-11400-01-00
Crankshaft Assy (mh)
9
93306-205U7-00
Bearing (63v) (mh)
10
6E7-11635-00-00
Piston (0.25mm O/s (0.25mm O/s) Ap (mh)
10
6E7-11636-00-00
Piston 2 O/s 0.50 (0.50mm O/s) Ap (mh)
10
6E7-11631-00-97
Piston Std (std) (mh)
11
682-11610-01-00
Piston Ringset Std (std) (mh)
11
682-11610-21-00
Piston Ring Set (0.50mm O/s) Ap (mh)
11
682-11610-11-00
Piston Ring Set (0 (0.25mm O/s) Ap (mh)
12
634-11633-00-00
Pin, Piston (mh)
13
93602-14104-00
Pin, Dowel (mh) (5 Per Pack)
14
90201-14377-00
Washer, Plate (mh)
15
93450-15023-00
Circlip, Inner (mh) (5 Per Pack)
16
93110-23M00-00
Oil Seal, Swo-type (mh)
17
63V-11445-00-00
Spacer (mh)
18
90201-46M29-00
Washer, Plate (mh)
