Lower casing drive для лодочных моторов Yamaha 3MSHKZ/3MSHZ (2001)

Москва и регионы России

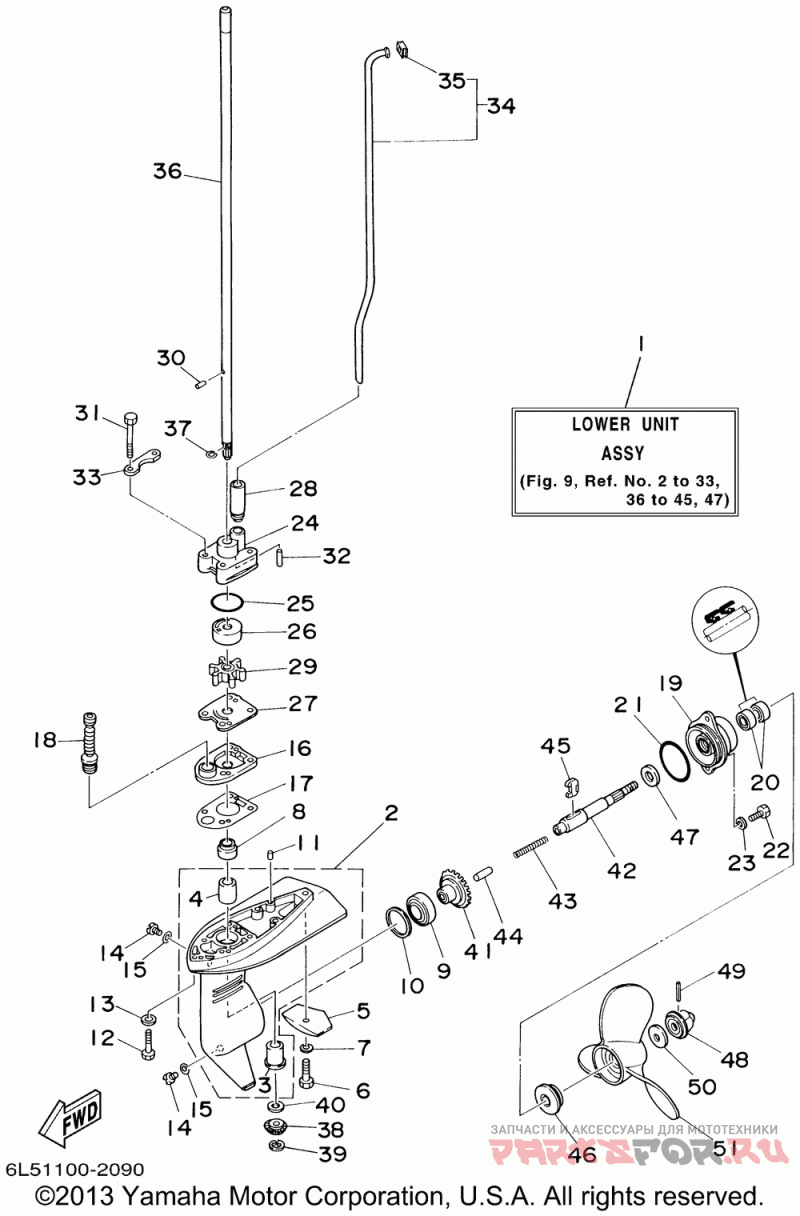

Lower casing drive

Yamaha 3MSHKZ/3MSHZ

Lower casing drive

#

oem код

название

цена

1

6L5-45300-01-4D

Lower Unit Assy S(3mh)

Lower Unit Assy S(3mh)

2

6L5-45311-00-4D

Casing, Lower (3mh)

Casing, Lower (3mh)

3

6L5-45317-09-00

Bushing, Drvshft.2 (3mh)

Bushing, Drvshft.2 (3mh)

4

6L5-45316-09-00

Bushing, Drvshft.1 (3mh)

Bushing, Drvshft.1 (3mh)

5

6L5-45251-03-00

Anode (3mh)

Anode (3mh)

6

Bolt S(3mh)

Bolt S(3mh)

7

Washer, In.tooth (3mh)

Washer, In.tooth (3mh)

8

Oil Seal, Sw-type (3mh)

Oil Seal, Sw-type (3mh)

9

Bearing, Cyl.#16 (3mh)

Bearing, Cyl.#16 (3mh)

10

6L5-45567-00-00

Shim Un(3mh)

Shim Un(3mh)

11

Pin, Dowel (3mh) (5 Per Pack)

Pin, Dowel (3mh) (5 Per Pack)

12

Bolt (3mh)

Bolt (3mh)

13

Washer (3mh) (5 Per Pack)

Washer (3mh) (5 Per Pack)

14

Plug, Straight Screw (3mh)

Plug, Straight Screw (3mh)

15

Gasket (3mh) (10 Per Pack)

Gasket (3mh) (10 Per Pack)

16

6L5-45321-00-CA

Plate (3mh)

Plate (3mh)

17

6L5-45315-A0-00

Packing, Lower Case (3mh)

Packing, Lower Case (3mh)

18

6L2-44147-00-00

Boot, Shift Rod (3mh)

Boot, Shift Rod (3mh)

19

6L5-45361-00-4D

Cap, Lower Casing (3mh)

Cap, Lower Casing (3mh)

20

Oil Seal, S-type (3mh)

Oil Seal, S-type (3mh)

21

O-ring (3mh)

O-ring (3mh)

22

Bolt (ga1) (3mh) (5 Per Pack)

Bolt (ga1) (3mh) (5 Per Pack)

23

Washer (3mh) (5 Per Pack)

Washer (3mh) (5 Per Pack)

24

6L5-44311-00-00

Housing, Water Pump (3mh)

Housing, Water Pump (3mh)

25

O-ring (3mh)

O-ring (3mh)

26

6L5-44322-00-00

Insert Cartridge (3mh)

Insert Cartridge (3mh)

27

6L5-44323-00-00

Outer Plate, Cart. (3mh)

Outer Plate, Cart. (3mh)

28

6E0-44366-00-00

Water Seal (3mh)

Water Seal (3mh)

29

6L5-44352-00-00

Impeller (3mh)

Impeller (3mh)

30

Pin, Dowel (3mh)

Pin, Dowel (3mh)

31

Bolt (682) (3mh) (5 Per Pack)

Bolt (682) (3mh) (5 Per Pack)

32

Pin, Dowel (3mh)

Pin, Dowel (3mh)

33

6L5-44328-00-00

Plate (3mh)

Plate (3mh)

34

6L5-44360-01-00

Tube Water Assy S(3mh)

Tube Water Assy S(3mh)

35

646-44365-00-00

Water Seal (3mh)

Water Seal (3mh)

36

6L5-45511-00-00

Shaft, Drive S(3mh)

Shaft, Drive S(3mh)

37

Clip, Scissor (3mh)

Clip, Scissor (3mh)

38

6L5-45551-00-00

Pinion (13t) (3mh)

Pinion (13t) (3mh)

39

Circlip (3mh) (5 Per Pack)

Circlip (3mh) (5 Per Pack)

40

6L5-45533-30-00

Shim (t:2.3mm) (t:2.3mm) Ur(3mh)

Shim (t:2.3mm) (t:2.3mm) Ur(3mh)

40

6L5-45533-10-00

Shim (t:2.1mm) (t:2.1mm) Ur(3mh)

Shim (t:2.1mm) (t:2.1mm) Ur(3mh)

40

6L5-45533-00-20

Shim (2.0 Mm) (t:2.0mm) Ur(3mh)

Shim (2.0 Mm) (t:2.0mm) Ur(3mh)

40

6L5-45533-20-00

Shim (t:2.2mm) (t:2.2mm) Ur(3mh)

Shim (t:2.2mm) (t:2.2mm) Ur(3mh)

41

6L5-45560-00-00

Gear 1 Assy (27t) (3mh)

Gear 1 Assy (27t) (3mh)

42

6L5-45611-00-00

Shaft, Propeller (3mh)

Shaft, Propeller (3mh)

43

Spring, Compression (3mh)

Spring, Compression (3mh)

44

6L5-45635-00-00

Plunger, Shift (3mh)

Plunger, Shift (3mh)

45

6L5-45631-00-00

Clutch, Dog (3mh)

Clutch, Dog (3mh)

46

6L5-45987-01-00

Spacer 1 (3mh)

Spacer 1 (3mh)

47

Washer, Plate (3mh)

Washer, Plate (3mh)

48

6L5-45616-00-00

Nut, Propeller (3mh)

Nut, Propeller (3mh)

49

Pin, Cotter (3mh) (5 Per Pack)

Pin, Cotter (3mh) (5 Per Pack)

50

Washer, Plate (3mh)

Washer, Plate (3mh)

51

6L5-45947-00-00

Propeller (3x7-1/4"x (3x7-1/4"x8-1/4"-bs) Ur(3mh)

Propeller (3x7-1/4"x (3x7-1/4"x8-1/4"-bs) Ur(3mh)

51

6L5-45943-00-00

Propeller (3x7-1/4 X (3x7-1/4"x6"-bs) Ur(3mh)

Propeller (3x7-1/4 X (3x7-1/4"x6"-bs) Ur(3mh)

51

6L5-45949-00-00

Propeller (3x7-1/4 X (3x7-1/4"x5"-bs) Ur(3mh)

Propeller (3x7-1/4 X (3x7-1/4"x5"-bs) Ur(3mh)

51

6L5-45952-00-00

Propeller (3x7-1/4"x (3x7-1/4"x5-1/2"-bs) Ur(3mh)

Propeller (3x7-1/4"x (3x7-1/4"x5-1/2"-bs) Ur(3mh)

51

6L5-45945-00-00

Propeller (3x7-1/4"x (3x7-1/4"x7-1/4"-bs) Ur(3mh)

Propeller (3x7-1/4"x (3x7-1/4"x7-1/4"-bs) Ur(3mh)
