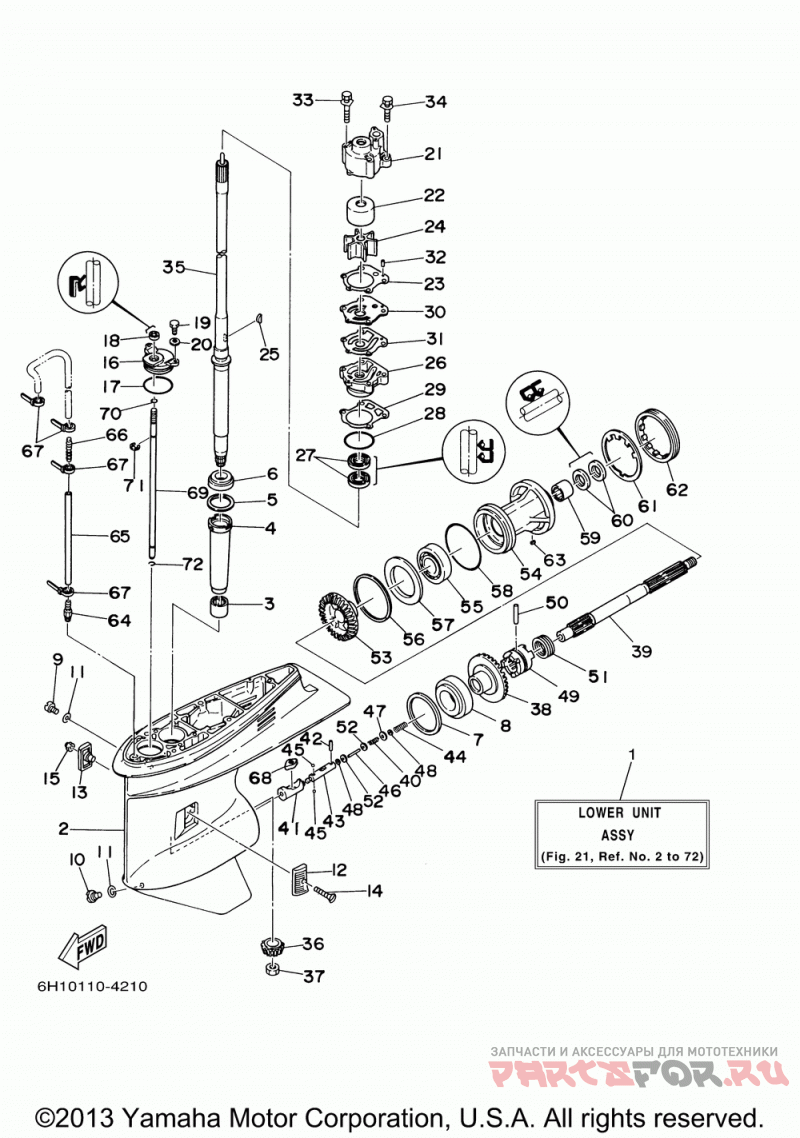

Lower casing drive 1 for 90tlry

Yamaha 90TJRY/C90TLRY/90TLRY

Yamaha
#oem кодцена
1
6H1-45300-16-8D
Lower Unit Assy L (6h1)
2
6H1-W4530-03-8D
Lower Casing Set (6h1)
3
93315-325V1-00
Bearing, Cyl.#15 (6h1)
4
688-45536-01-00
Sleeve, Drive Shft (6h1)
5
688-45587-10-00
Shim (t:0.12mm) (t:0.12mm) Ur (6h1)
5
688-45587-40-00
Shim (t:0.30mm) (t:0.30mm) Ur (6h1)
5
688-45587-60-00
Shim (t:0.50mm) (t:0.50mm) Ur (6h1)
5
688-45587-01-00
Shim (t:0.10mm) (t:0.10mm) Ur (6h1)
5
688-45587-20-00
Shim (t:0.15mm) (t:0.15mm) Ur (6h1)
5
688-45587-30-00
Shim (t:0.18mm) (t:0.18mm) Ur (6h1)
5
688-45587-50-00
Shim (t:0.40mm) (t:0.40mm) Ur (6h1)
6
93332-000U3-00
Bearing, Taprd #32 (6h1)
7
688-45567-10-00
Shim (t:0.12mm) (t:0.12mm) Ur (6h1)
7
688-45567-40-00
Shim (t:0.30mm) (t:0.30mm) Ur (6h1)
7
688-45567-60-00
Shim (t:0.50mm) (t:0.50mm) Ur (6h1)
7
688-45567-01-00
Shim (t:0.10mm) (t:0.10mm) Ur (6h1)
7
688-45567-20-00
Shim (t:0.15mm) (t:0.15mm) Ur (6h1)
7
688-45567-30-00
Shim (t:0.18mm) (t:0.18mm) Ur (6h1)
7
688-45567-50-00
Shim (t:0.40mm) (t:0.40mm) Ur (6h1)
8
93332-000W7-00
Bearing (6b0) (6h1)
9
90340-08002-00
Plug, Straight Screw (6h1)
10
688-45341-10-00
Plug, Drain (6h1)
11
90430-08020-00
Gasket (6h1) (10 Per Pack)
12
6H1-45214-00-00
Cover, Wtr.inlet (6h1)
13
6H1-45215-00-00
Cover, Water Inlet (6h1)
14
90151-05M00-00
Screw, Countersunk (6h1 (5 Per Pack)
15
90185-05904-00
Nut, Self-locking (6h1)
16
688-45321-00-00
Plate (6h1)
17
93210-49046-00
O-ring (6h1)
18
93106-09014-00
Oil Seal, Dd-type (6h1)
19
97095-06016-00
Bolt (ga1) (6h1) (5 Per Pack)
20
92990-06600-00
Washer (6h1) (5 Per Pack)
21
688-44311-01-00
Housing, Water Pump (6h1)
22
688-44322-00-00
Insert Cartridge (6h1)
23
688-44315-A0-00
Gasket, Water Pump (6h1)
24
688-44352-03-00
Impeller (6h1)
25
90280-04M04-00
Key, Woodruff (6h1)
26
6D8-WS443-00-00
Housing, Water Pump (6h1)
27
93101-25M03-00
Oil Seal, S-type (6h1)
28
93210-46044-00
O-ring (6h1) (5 Per Pack)
29
688-44316-A0-00
Gasket, Water Pump (6h1)
30
688-44323-00-00
Outer Plate, Cart. (6h1)
31
688-44324-A0-00
Gasket, Cartridge (6h1)
32
93604-10M03-00
Pin, Dowel (6h1) (5 Per Pack)
33
90119-08M16-00
Bolt, W/washer (6h1)
34
90119-08M13-00
Bolt, W/washer (6h1)
35
6H1-45501-11-00
Drive Shaft L (6h1)
36
688-45551-01-00
Pinion (13t) (6h1)
37
90170-16M01-00
Nut, Hexagon (6h1)
38
688-45560-00-00
Gear 1 Assy (26t) (6h1)
39
6H1-45611-01-00
Shaft, Propeller (6h1)
40
90501-12M48-00
Spring, Compression (6h1)
41
6H1-45641-01-00
Shifter (6h1)
42
93603-12M11-00
Pin, Dowel (6h1) (5 Per Pack)
43
6H1-45634-02-00
Slide, Shaft (6h1)
44
90501-16M65-00
Spring, Compression (6h1) (5 Per Pack)
45
93503-16003-00
Ball 3/16 (6h1) (5 Per Pack)
46
6H1-45668-00-00
Shaft Free (6h1)
47
90201-03313-00
Washer, Plate (6h1)
48
90183-02M03-00
Nut, Spring (6h1) (5 Per Pack)
49
6H1-45631-01-00
Clutch, Dog (6h1)
50
90250-07M02-00
Pin, Straight (6h1)
51
688-45633-00-00
Ring, Cross Pin (6h1)
52
6H1-45635-00-00
Plunger, Shift (6h1)
53
6H1-45571-00-00
Gear 2 (26t) (6h1)
54
688-45331-00-CA
Housing, Bearing (6h1)
55
93306-207U0-00
Bearing (6h1)
56
688-45577-10-00
Shim (t:0.12mm) (t:0.12mm) Ur (6h1)
56
688-45577-40-00
Shim (t:0.30mm) (t:0.30mm) Ur (6h1)
56
688-45577-60-00
Shim (t:0.50mm) (t:0.50mm) Ur (6h1)
56
688-45577-01-00
Shim (t:0.10mm) (t:0.10mm) Ur (6h1)
56
688-45577-20-00
Shim (t:0.15mm) (t:0.15mm) Ur (6h1)
56
688-45577-30-00
Shim (t:0.18mm) (t:0.18mm) Ur (6h1)
56
688-45577-50-00
Shim (t:0.40mm) (t:0.40mm) Ur (6h1)
57
688-45576-00-00
Washer, Thrust (6h1)
58
93210-85M97-00
O-ring (6h1)
59
93317-325U0-00
Bearing, Cyl.#17 (6h1)
60
93101-25M03-00
Oil Seal, S-type (6h1)
61
688-45383-02-00
Washer, Claw (6h1)
62
688-45384-02-00
Nut (6h1)
63
90282-04010-00
Key, Straight (6h1)
64
6E5-45378-00-00
Nipple, Hose (6h1)
65
90445-07MF2-00
Hose (l120) L (6h1)
66
6E5-83558-10-00
End, Nipple (6h1)
67
90465-10098-00
Clamp (6h1)
68
6H1-44151-00-00
Cam, Shift (6h1)
69
6H1-44144-00-00
Rod, Shift 2 (6h1)
70
93210-07540-00
O-ring (6h1)
72
93450-07M00-00
Circlip, Inner (6h1)
