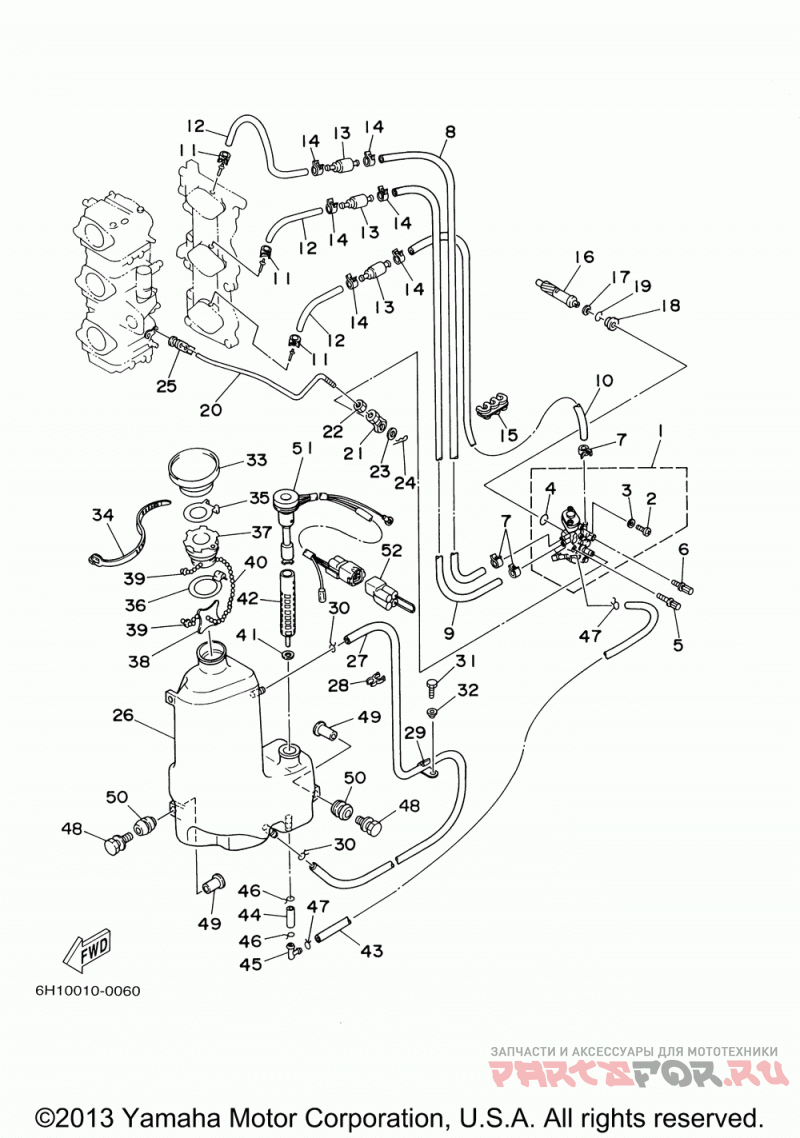

Масляный насос

Yamaha 90TJRY/C90TLRY/90TLRY

Yamaha
#oem кодцена
1
6H1-13200-02-00
Oil Pump Assy (6h1)
1
6H1-13200-02-00
Oil Pump Assy (6h1)
2
98580-04006-00
Screw, Pan Head (6h1)
2
98580-04006-00
Screw, Pan Head (6h1)
3
1YU-13187-00-00
Gasket, Brthr Bolt (6h1) (5 Per Pack)
3
1YU-13187-00-00
Gasket, Brthr Bolt (6h1) (5 Per Pack)
4
93210-19MA7-00
O-ring (6h1)
4
93210-19MA7-00
O-ring (6h1)
5
90109-06M39-00
Bolt (6h1)
5
90109-06M39-00
Bolt (6h1)
6
90109-06M40-00
Bolt (6h1)
6
90109-06M40-00
Bolt (6h1)
7
90468-07M02-00
Clip (6h1)
7
90468-07M02-00
Clip (6h1)
8
90445-07M90-00
Hose (l390) (6h1)
8
90445-07M90-00
Hose (l390) (6h1)
9
90445-07M90-00
Hose (l330) (6h1)
9
90445-07M90-00
Hose (l330) (6h1)
10
90445-07M90-00
Hose (l250) (6h1)
10
90445-07M90-00
Hose (l250) (6h1)
11
90468-07M02-00
Clip (6h1)
11
90468-07M02-00
Clip (6h1)
12
90446-07M48-00
Hose (l110) (6h1)
12
90446-07M48-00
Hose (l110) (6h1)
13
6E9-13183-70-00
Valve, Check (6h1)
13
6E9-13183-70-00
Valve, Check (6h1)
14
90468-07M02-00
Clip (6h1)
14
90468-07M02-00
Clip (6h1)
15
90464-07M05-00
Clamp (6h1)
15
90464-07M05-00
Clamp (6h1)
16
6H1-11537-01-00
Gear, Driven (6h1)
16
6H1-11537-01-00
Gear, Driven (6h1)
17
90201-08M93-00
Washer, Plate (6h1)
17
90201-08M93-00
Washer, Plate (6h1)
18
6H1-13117-01-00
Collar, Distance (6h1)
18
6H1-13117-01-00
Collar, Distance (6h1)
19
93210-13595-00
O-ring (6h1) (5 Per Pack)
19
93210-13595-00
O-ring (6h1) (5 Per Pack)
20
6H1-41241-02-00
Rod 1 (6h1)
20
6H1-41241-02-00
Rod 1 (6h1)
21
6H1-41237-00-00
Joint, Link 2 (6h1)
21
6H1-41237-00-00
Joint, Link 2 (6h1)
22
95380-05600-00
Nut (6h1) (5 Per Pack)
22
95380-05600-00
Nut (6h1) (5 Per Pack)
23
90202-05088-00
Washer, Plate (6h1)
24
90468-05M03-00
Clip (6h1) (5 Per Pack)
24
90468-05M03-00
Clip (6h1) (5 Per Pack)
25
6R5-41237-00-00
Joint, Link (6h1)
25
6R5-41237-00-00
Joint, Link (6h1)
26
6H1-21707-07-00
Oil Tank (6h1)
26
6H1-21707-07-00
Oil Tank (6h1)
27
90445-11M09-00
Hose (l600) (6h1)
27
90445-11M09-00
Hose (l600) (6h1)
28
90464-11M24-00
Clamp (6h1)
28
90464-11M24-00
Clamp (6h1)
29
90465-11M27-00
Clamp (6h1)
29
90465-11M27-00
Clamp (6h1)
30
90467-11M08-00
Clip (6h1)
30
90467-11M08-00
Clip (6h1)
31
97095-06016-00
Bolt (ga1) (6h1) (5 Per Pack)
31
97095-06016-00
Bolt (ga1) (6h1) (5 Per Pack)
32
90387-06M31-00
Collar (6a0) (6h1)
32
90387-06M31-00
Collar (6a0) (6h1)
33
6H1-21752-00-00
Tube, Filler 1 (6h1)
33
6H1-21752-00-00
Tube, Filler 1 (6h1)
34
90465-13M30-00
Clamp (6h1)
34
90465-13M30-00
Clamp (6h1)
35
63D-2176M-00-00
Hook (6h1)
35
63D-2176M-00-00
Hook (6h1)
36
63D-2175R-00-00
Hook, Bank (6h1)
36
63D-2175R-00-00
Hook, Bank (6h1)
37
6H4-21770-00-00
Oil Tank Cap Assy (6h1)
37
6H4-21770-00-00
Oil Tank Cap Assy (6h1)
38
6J8-21758-00-00
Washer, Special 2 (6h1)
38
6J8-21758-00-00
Washer, Special 2 (6h1)
39
6H1-21757-00-00
Washer, Special 1 (6h1)
39
6H1-21757-00-00
Washer, Special 1 (6h1)
40
6H1-24633-00-00
Chain, Ball (6h1)
40
6H1-24633-00-00
Chain, Ball (6h1)
41
6J8-13414-00-00
Gasket, Strainer Cv (6h1) (5 Per Pack)
41
6J8-13414-00-00
Gasket, Strainer Cv (6h1) (5 Per Pack)
42
6H1-13411-00-00
Strainer, Oil (6h1)
42
6H1-13411-00-00
Strainer, Oil (6h1)
43
6H1-21766-01-00
Pipe, Oil (6h1)
43
6H1-21766-01-00
Pipe, Oil (6h1)
44
90445-13M18-00
Hose (l30) (6h1)
44
90445-13M18-00
Hose (l30) (6h1)
45
6H1-13435-00-00
Nipple (6h1)
45
6H1-13435-00-00
Nipple (6h1)
46
90467-12M11-00
Clip, Scissor (6h1)
46
90467-12M11-00
Clip, Scissor (6h1)
47
90467-08004-00
Clip, Scissor (6h1)
47
90467-08004-00
Clip, Scissor (6h1)
48
90119-06M88-00
Bolt, With Washer (6h1)
48
90119-06M88-00
Bolt, With Washer (6h1)
49
90387-06119-00
Collar (6h1)
49
90387-06119-00
Collar (6h1)
50
6A0-82317-00-00
Damper, Ign Coil (6h1)
50
6A0-82317-00-00
Damper, Ign Coil (6h1)
51
6H1-85720-16-00
Oil Level Gauge Assy (6h1)
51
6H1-85720-16-00
Oil Level Gauge Assy (6h1)
52
6R5-82582-B0-00
Cover, Wire Harness Ap (6h1)
52
6R5-82582-B0-00
Cover, Wire Harness Ap (6h1)
