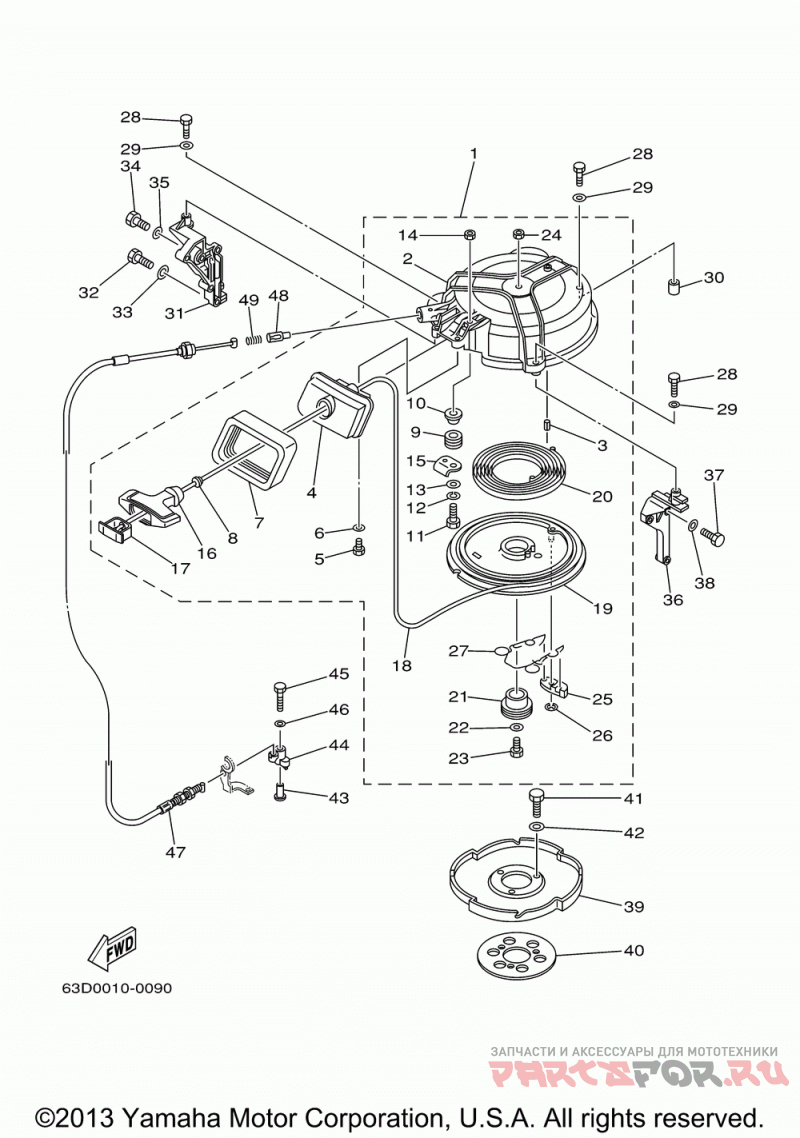

Starter 40mh

Yamaha 40MLHY/50EJRY/40MJHY/40TLRY

Yamaha
#oem кодцена
1
63B-Y130E-00-00
Starter Assy (m)
2
6H4-15711-02-94
Case, Starter (m)
3
91690-40018-00
Pin, Spring (m) (5 Per Pack)
4
6H4-15758-01-4D
Guide, Rope (m)
5
97095-06016-00
Bolt (ga1) (m) (5 Per Pack)
6
92990-06600-00
Washer (m) (5 Per Pack)
7
6H4-15762-00-00
Seal, Rubber 2 (m)
8
6A0-15789-00-00
Damper (m)
9
6F5-15752-00-00
Roller, Wire (m)
10
90387-06M69-00
Collar (m)
11
97080-06030-00
Bolt (m)
12
92995-06100-00
Washer (m) (5 Per Pack)
13
92990-06600-00
Washer (m) (5 Per Pack)
14
95380-06600-00
Nut (m) (5 Per Pack)
15
6H4-15787-01-00
Adaptor (m)
16
689-15755-01-00
Handle, Starter (m)
17
6F5-15779-02-00
Cover (m)
19
6H4-15714-00-00
Drum, Sheave (m)
20
90510-08002-00
Spring, Spiral (m)
21
6H4-15717-01-00
Shaft, Starter (m)
22
90201-06020-00
Washer, Plate (m)
23
97080-06020-00
Bolt(7u8) (m) (5 Per Pack)
24
95380-06600-00
Nut (m) (5 Per Pack)
25
676-15741-03-00
Pawl, Drive (m)
26
93430-06M02-00
Circlip, E-type (m) (5 Per Pack)
27
6H4-15705-00-00
Spring, Pawl Drive (m)
28
97080-06035-00
Bolt (m)
29
92990-06600-00
Washer (m) (5 Per Pack)
30
99530-10014-00
Pin, Dowel (m)
31
63D-15771-00-1S
Stay 1 (m)
32
97013-08025-00
Bolt (682) (m)
33
92990-08600-00
Washer (m) (5 Per Pack)
34
97013-06020-00
Bolt (661) (m)
35
92990-06600-00
Washer (m) (5 Per Pack)
36
6H4-15772-02-00
Stay 2 (m)
37
97013-06025-00
Bolt (661) (m)
38
92990-06600-00
Washer (m) (5 Per Pack)
39
6H4-15723-01-94
Pulley, Starter (m)
40
6J8-81365-A0-00
Gasket, Hole Cover (m)
41
97013-08020-00
Bolt (661) (m)
42
92990-08600-00
Washer (m) (5 Per Pack)
43
90387-06M66-00
Collar (m)
44
63D-15746-00-00
Arm (m)
45
97095-06040-00
Bolt (682) (m) (5 Per Pack)
46
92990-06600-00
Washer (m) (5 Per Pack)
47
63D-15770-00-00
Cable Cmpl, Str Stp (m)
48
656-15748-00-00
Plunger, Str Stop (m)
49
90501-10227-00
Spring, Compression (m)
