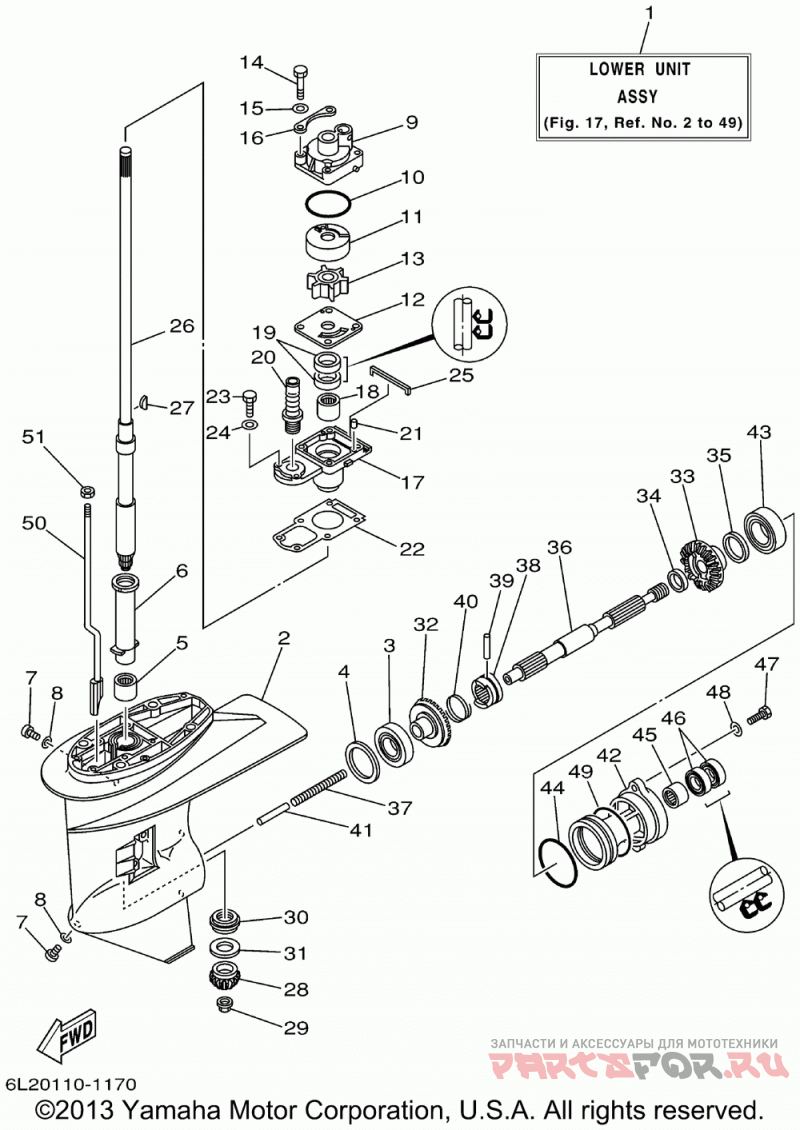

Корпус редуктора 1

Yamaha 25MSHY/25MLHY

Yamaha
#oem кодцена
1
6L2-45300-04-4D
Lower Unit Assy Ur S(mh)
1
6L2-45300-14-4D
Lower Unit Assy Ur L(mh)
2
6L2-45311-02-4D
Casing, Lower (mh)
3
93332-00005-00
Bearing, Taprd #32 (mh)
4
6L2-45567-40-00
Shim (t:1.4mm) (t:1.4mm) Ur(mh)
4
6L2-45567-00-00
Shim (t:1.0mm) (t:1.0mm) Ur(mh)
4
6L2-45567-00-11
Shim (t:1.1mm) Ur(mh)
4
6L2-45567-00-13
Shim (t:1.3mm) Ur(mh)
4
6L2-45567-20-00
Shim (t:1.2mm) (t:1.2mm) Ur(mh)
5
93315-220V9-00
Bearing, Cylidricl (mh)
6
6L2-45536-00-00
Sleeve, Drive Shft (mh)
7
90340-08002-00
Plug, Straight Screw (mh)
8
90430-08020-00
Gasket (mh) (10 Per Pack)
9
6L2-44311-01-00
Housing, Water Pump (mh)
10
93210-45161-00
O-ring (mh)
11
6L2-44322-00-00
Insert Cartridge (mh)
12
6L2-44323-00-00
Outer Plate, Cart. (mh)
13
6L2-44352-00-00
Impeller (mh)
14
97095-06040-00
Bolt (682) (mh) (5 Per Pack)
15
92990-06600-00
Washer (mh) (5 Per Pack)
16
6L2-44328-00-00
Plate (mh)
17
6L2-45331-00-CA
Housing, Bearing (mh)
18
93315-22004-00
Bearing, Cyl.#15 (mh)
19
93101-20048-00
Oil Seal, S-type (mh)
20
6L2-44147-00-00
Boot, Shift Rod (mh)
21
93604-10M03-00
Pin, Dowel (mh) (5 Per Pack)
22
6L2-45315-A0-00
Packing, Lower Case (mh)
23
97080-06020-00
Bolt(7u8) (mh) (5 Per Pack)
24
92990-06600-00
Washer (mh) (5 Per Pack)
25
6L2-45375-00-00
Seal, Rubber (mh)
26
6L2-45510-00-00
Drive Shaft Assy Ur S(mh)
26
6L2-45510-10-00
Drive Shaft Assy Ur L(mh)
27
90280-03024-00
Key, Woodruff (mh)
28
6L2-45551-01-00
Pinion (13t) (mh)
29
90179-10M14-00
Nut, Spec'l Shape (mh)
30
93341-320U0-00
Bearing, Flat #41 (mh)
31
6L2-45587-00-00
Shim (t:1.5mm) (t:1.5mm) Ur(mh)
31
6L2-45587-10-00
Shim (t:1.6mm) (t:1.6mm) Ur(mh)
32
6L2-45560-10-00
Gear (mh)
33
6L2-45571-00-00
Gear 2 (27t) (mh)
34
90201-20417-00
Washer, Plate (mh)
35
6L2-45577-30-00
Shim (t:1.3mm) (t:1.3mm) Ur(mh)
35
6L2-45577-10-00
Shim (t:1.1mm) (t:1.1mm) Ur(mh)
35
6L2-45577-20-00
Shim (t:1.2mm) (t:1.2mm) Ur(mh)
35
6L2-45577-00-00
Shim (t:1.0mm) (t:1.0mm) Ur(mh)
36
6L2-45611-00-00
Shaft, Propeller (mh)
37
90501-10065-00
Spring, Compression (mh)
38
6L2-45631-00-00
Clutch, Dog (mh)
39
90250-05010-00
Pin, Straight (mh) (5 Per Pack)
40
648-45633-00-00
Ring, Cross Pin (mh)
41
648-45635-00-00
Plunger, Shift (mh)
42
6L2-45361-03-4D
Cap, Lower Casing (mh)
43
93306-00612-00
Bearing (mh)
44
93210-60MA3-00
O-ring (mh)
45
93315-22004-00
Bearing, Cyl.#15 (mh)
46
93101-20M07-00
Oil Seal, S-type (mh)
47
97080-06020-00
Bolt(7u8) (mh) (5 Per Pack)
48
92990-06600-00
Washer (mh) (5 Per Pack)
49
93210-60M99-00
O-ring (mh)
50
6L2-44150-00-00
Shift Cam Assy Ur S(mh)
50
6L2-44150-10-00
Shift Cam Assy Ur L(mh)
51
95380-06600-00
Nut (mh) (5 Per Pack)
