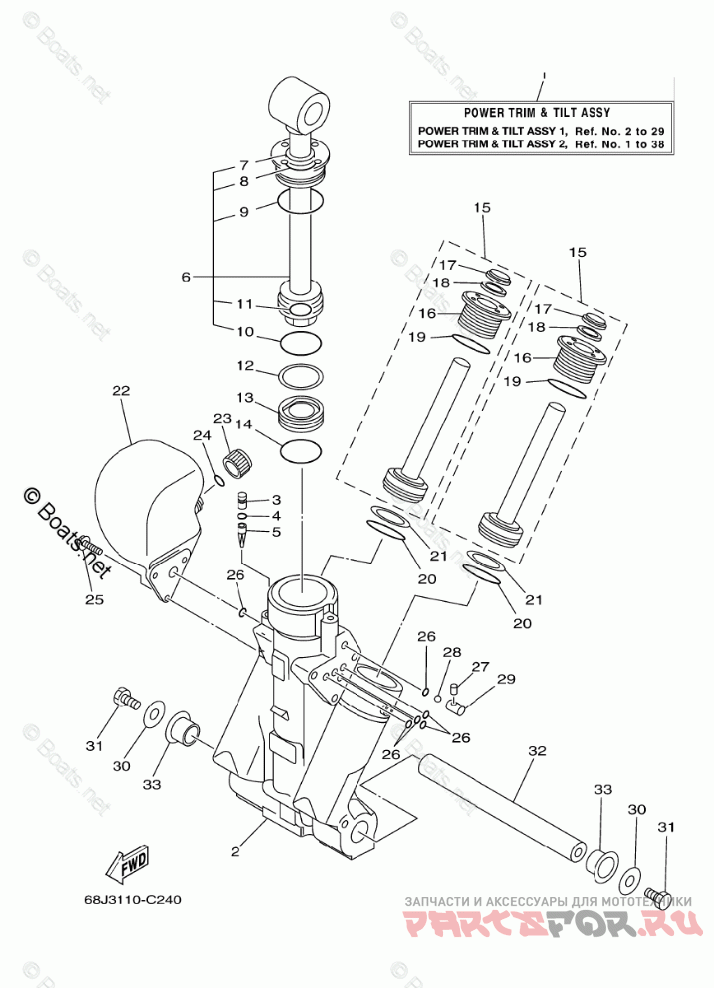

Power Trim Tilt Assy 1

Yamaha LZ150TXR

Yamaha
#oem кодцена
1
63P-43800-00-4D
POWER TRIM & TILT ASSY
2
64E-43825-01-00
HOUSING, TRIM & TILT
3
64E-4388J-00-00
PLUG 2
4
93210-10M74-00
O-RING
5
64E-43817-00-00
FILTER 2
6
63P-43810-00-00
TILT PISTON SUB ASSY
7
64E-43898-00-00
SEAL, DUST 2
8
64E-43867-00-00
O-RING
9
64E-43866-00-00
O-RING
10
6E5-43862-00-00
O-RING
11
64E-43883-00-00
O-RING
12
6E5-43872-00-00
RING, BACK UP
13
6E5-43814-02-00
PISTON, FREE
14
6E5-43862-00-00
O-RING
15
64E-43820-00-00
PISTON SUB ASSEMBLY
16
64E-43821-00-00
SCREW, TRIM CYLINDER END
17
64E-43822-00-00
SEAL, TRIM DUST
18
64E-4384J-00-00
SEAL, TRIM DOWN
19
6G5-43864-00-00
O-RING
20
6E5-43864-00-00
O-RING
21
6E5-43874-01-00
RING, BACK UP
22
64E-43828-00-00
BODY, RESERVOIR
23
64E-43829-00-00
PLUG, RESERVOIR
24
64E-43897-00-00
O-RING
25
64E-4388E-00-00
BOLT ,SCREW (L:14MM)
26
64E-43869-00-00
O-RING
27
64E-4381G-00-00
PIN
28
6E5-43858-00-00
BALL
29
64E-4382G-00-00
VALVE, SEAT
30
90201-08M14-00
WASHER, PLATE
31
97080-08016-00
BOLT
32
64E-43818-01-00
PIN, LOWER SHOCK MOUNT
33
90386-22M98-00
BUSH
