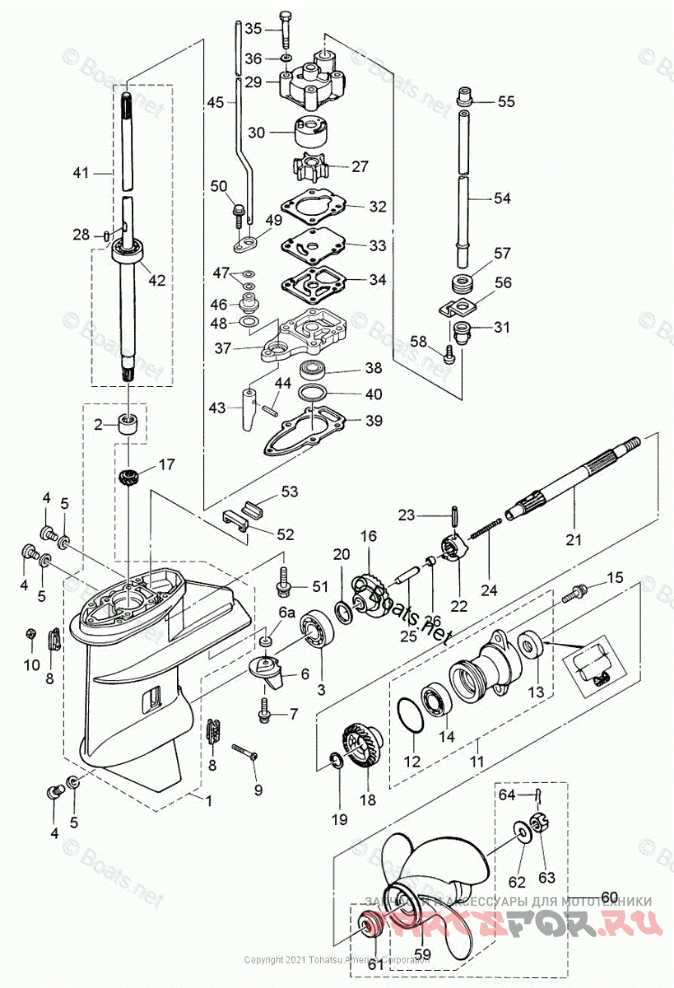

GEAR CASE

Tohatsu MFS8B

Tohatsu
#oem кодцена
10-4
332600052M
Деталь OIL PLUG (8 X 1.25)
10-55
3V1652060M
Деталь SEAL UPPER, WATER PIPE
10-43
369660110M
Деталь CLUTCH CAM
10-49
369660330M
Деталь STOPPER
10-8
3AA602060M
Деталь WATER STRAINER
10-40
3B2640230M
Деталь GAP LINER KIT *{/*USE 1- 3B2640810M AND 3-3B2640820M TO MAKE KIT*/}*
10-22
3B2642150M
Деталь CLUTCH
10-26
3B2642220M
Деталь SPRING HOLDER
10-52
3V1600410M
Деталь WATER SEAL RUBBER
10-53
3V1600420M
Деталь WATER SEAL PLATE
10-6
3V1602170M
Деталь TRIM TAB
10-24
3V1642210M
Деталь SPRING, CLUTCH
10-54
3V1651000M
Деталь WATER PIPE "S"
10-54
3V1651100M
Деталь WATER PIPE "L"
10-56
3V1652030M
Деталь LOCK PLATE
10-57
3V1652040M
Деталь RUBBER MOUNT
10-45
3V1660120M
Деталь CAM ROD S
10-62
369641240M
Деталь WASHER, PROP NUT
10-16
3B2640101M
Деталь BEVEL GEAR A (FORWARD)
10-40
3B2640820M
Деталь SHIM *{/*USE 3B2640810M AND 3B2640820M TO MAKE 3B2640230M KIT*/}*
10-2
3WB602110M
Деталь NEEDLE BEARING
10-41
3V1643062M
Деталь DRIVE SHAFT "S"
10-61
3UB642310M
Деталь THRUST HOLDER (F8-9.8B)
10-18
3B2640301M
Деталь BEVEL GEAR C (REVERSE)
10-17
3B2640201M
Деталь BEVEL GEAR B (PINION)
10-46
3UA660310M
Деталь CAM ROD BUSHING
10-45
3V1660130M
Деталь CAM ROD L
10-5
332600061M
Деталь GASKET (10 MULTIPLE)
10-1
3AAQ600001
Деталь GEAR CASE ASSY (AMB)
10-42
960106301M
Деталь BEARING
10-3
960106204M
Деталь BEARING
10-64
9515030318M
Деталь SPLIT PIN (10 MULTIPLE)
10-58
9215030510M
Деталь SCREW (10 MULTIPLE)
10-25
369642230M
Деталь PUSH ROD
10-63
369641210M
Деталь PROP NUT
10-48
332660320M
Деталь O-RING
10-32
3B2650182M
Деталь GASKET
10-59
3B2B645131
Деталь PROP 8 & 9.8 HP (8.5 DIA X 6.5 PITCH)-NLA *{/*NO LONGER AVAILABLE-USE 3B2B645140*/}*
10-34
3B2650292M
Деталь GASKET
10-33
3B2650250M
Деталь GUIDE PLATE
10-28
3B2650220M
Деталь KEY
10-27
3B2650211M
Деталь IMPELLER (8/9.8)
10-39
3B2650201M
Деталь GASKET, WATER PUMP CASE LOWER
10-29
3B2650160M
Деталь PUMP CASE UPPER
10-59
3B2B645151
Деталь PROP 8 & 9.8 HP (8.5 DIA. X 8.0 PITCH)
10-30
3B2650110M
Деталь LINER PUMP CASE
10-47
369660211M
Деталь O-RING A
10-20
369640120M
Деталь SHIM KIT
10-13
369601110M
Деталь OIL SEAL, PROPELLER SHAFT
10-12
345650150M
Деталь O-RING
10-6A
338602182M
Деталь ANODE
10-59
3B2B645140
Деталь PROP 8 & 9.8 HP (8.5 DIA X 7 PITCH), BLACK
10-59
3B2B645191
Деталь PROP 8 & 9.8 HP (8.5 DIA X 9.5 PITCH)-NO LONGER AVAILABLE *{/*NO LONGER AVAILABLE*/}*
10-19
369640320M
Деталь WASHER,BEVEL GEAR C
10-44
9514070310M
Деталь SPRING PIN (10 MULTIPLE)
10-31
331650140M
Деталь GROMMET, WATER PIPE 8/9.8
10-23
301642170M
Деталь PIN CLUTCH
10-14
960106004M
Деталь BEARING
10-36
9401E30600M
Деталь WASHER (10 MULTIPLE)
10-35
9161E30650M
Деталь BOLT
10-38
309601110M
Деталь OIL SEAL
10-10
9304030400M
Деталь NYLON NUT (10 MULTIPLE)
10-11
3B2Q601001
Деталь PROP SHAFT HOUSING ASSY.
10-9
9215030430M
Деталь SCREW (10 MULTIPLE)
10-50
9101E35625M
Деталь BOLT & WASHER (10 MULTIPLE)
10-7
9101E35620M
Деталь BOLT & WASHER (10 MULTIPLE)
10-15
9101E35620M
Деталь BOLT & WASHER (10 MULTIPLE)
10-51
3V2600010M
Деталь BOLT, 6-35 PRECOATED
10-21
3V1642111M
Деталь PROPELLER SHAFT (12 SPLINE)
10-60
3UB873260M
Деталь PROP HDWR KIT , F8B2/9.8B
