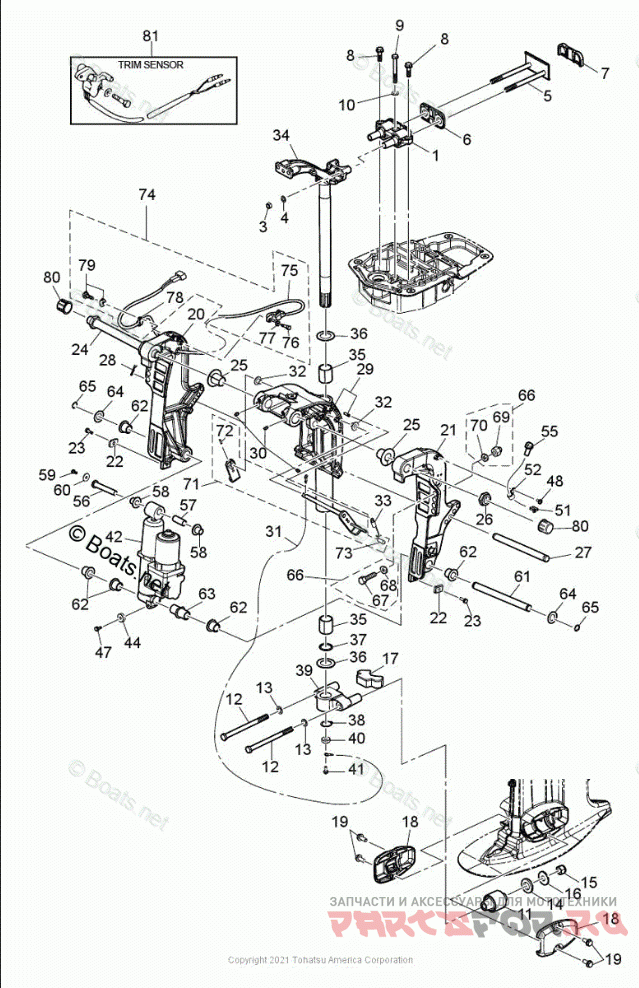

BRACKET для лодочных моторов Tohatsu MFS60A (2021)

BRACKET

Tohatsu MFS60A

oem код

название

цена

13-44

338602182M

ANODE

13-65

9451031800M

C-RING

13-6

3KY613330M

DAMPER (UPPER) FRONT SIDE

13-12

3KY613210M

BOLT 12-177.5 P1.25

13-11

3KY613020M

RUBBER MOUNT (LOWER)

13-3

3B7611140M

NUT

13-28

9516031000M

R-PIN D=10MM

13-38

9451272800M

C-RING

13-13

9402E31200M

WASHER (10 MULTIPLE)

13-7

3KY613390M

DAMPER (UPPER) REAR SIDE

13-79

9215035612M

SCREW (10 MULTIPLE)

13-48

9215035612M

SCREW (10 MULTIPLE)

13-81

3Z4725740M

TRIM SENSOR (2-WIRE) *{/*F25/30B, D40/50B w/2 wire meter*/}*

13-75

3Z4725740M

TRIM SENSOR (2-WIRE) *{/*F25/30B, D40/50B w/2 wire meter*/}*

13-27

3R0771180M

THRUST ROD

13-64

3R0771120M

WASHER

13-17

3KY613360M

DAMPER (LOWER)

13-9

3KY613430M

BOLT 8-70

13-15

3R0613240M

NYLON NUT

13-66

3AD721201M

RIGGING BOLT SET

13-42

3Z5771503M

POWER TRIM & TILT ASSY, D40/50 (AMB)

13-29

3KYQ772081

SWIVEL BRACKET ASSY (L/UL)

13-21

3KYQ772121

CLAMP BRACKET (PTT-L) PORT

13-39

3KYQ614111

MOUNT BRACKET

13-74

3KY725750M

Trim Sensor Kit (Required for MFS25-30)

13-1

3KY613011M

RUBBER MOUNT (UPPER)

13-70

9401E31200M

WASHER (10 MULTIPLE)

13-58

3KY770750M

BUSHING 18-24-22

13-34

3KZQ620101

STEERING SHAFT ASSY (S)

13-20

3KYQ772111

CLAMP BRACKET (PTT-R) STARBOARD

13-10

9402E30800M

WASHER (10 MULTIPLE)

13-34

3KYQ620101

STEERING SHAFT ASSY (L/UL)

13-25

3KY772130M

BUSHING

13-63

3KY771030M

BUSHING 18-24-60

13-62

3KY770760M

BUSHING 18-24-22

13-57

3R0770750M

BUSHING, 13-16-40

13-69

3R0613240M

NYLON NUT

13-40

338602182M

ANODE

13-76

9101030620M

BOLT (10 MULTIPLE)

13-30

344671771M

GREASE NIPPLE

13-78

336069730M

CLAMP

13-4

9402E31000M

WASHER (10 MULTIPLE)

13-23

9101E35620M

BOLT & WASHER (10 MULTIPLE)

13-47

9101E35616M

BOLT & WASHER (10 MULTIPLE)

13-41

9101E35616M

BOLT & WASHER (10 MULTIPLE)

13-59

9101030612M

BOLT (10 MULTIPLE)

13-80

346621270M

BRACKET CAP

13-33

3R0624730M

SPRING, TILT STOPPER

13-22

3H6602180M

ANODE, ZINC (SQUARE) *{/* For 5B models prior to sn 16748, use 369602181M (round anode) */}*

13-77

3C8663080M

WASHER (10 MULTIPLE)

13-32

353632070M

COLLAR

13-26

346621241M

BRACKET NUT

13-60

345051221M

WASHER, RACHET

13-52

345069150M

CORD CLAMP A

13-73

369624331M

GRIP

13-61

3KY771010M

CYLINDER PIN (LOWER)

13-37

353624150M

O-RING

13-71

3GF624661M

TILT STOPPER (PTT TYPE)

13-67

3C7621332M

BOLT, STERN BRACKET

13-14

3C7613380M

DAMPER RUBBER, 21-36-5

13-24

3AD621910M

SWIVEL BRACKET BOLT (PTT)

13-36

353624231M

THRUST PLATE

13-35

353624170M

BUSHING

13-16

353613340M

WASHER, 13-34-3

13-56

3KY770710M

CYLINDER PIN (UPPER)

13-68

353613340M

WASHER, 13-34-3

13-19

9101035820M

BOLT

13-31

3C8623961M

GROUND WIRE

13-72

9514033516M

SPRING PIN (10 MULTIPLE)

13-8

9101035830M

BOLT

13-51

3Z0843980M

BAND LEAD WIRE 203-LOCAL PURCHASE

13-55

3Y1761450M

TERMINAL CAP

13-5

3KY613260M

LOCK PLATE WITH BOLTS
