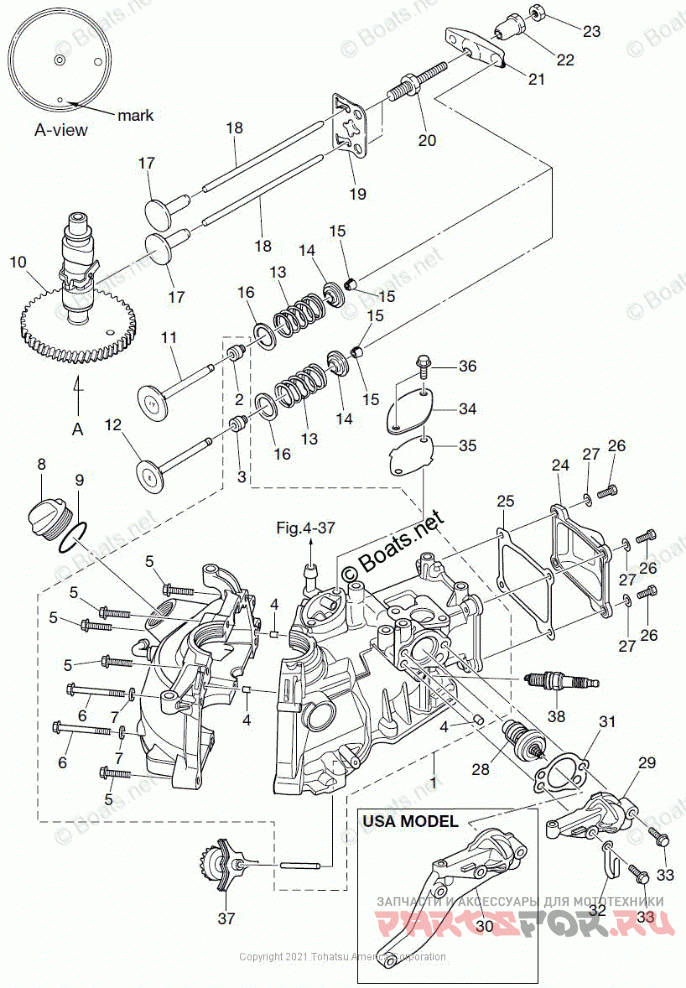

CYLINDER & CRANK CASE для лодочных моторов Tohatsu MFS2.5C (2021)

CYLINDER & CRANK CASE

Tohatsu MFS2.5C

oem код

название

цена

1-25

3AB010241M

CYLINDER HEAD COVER GASKET

1-23

3H6079370M

ADJUST NUT (4.0mm THICK)

1-37

3AB076400M

SLINGER

1-13

3AE072030M

VALVE SPRING

1-28

3H6010300M

THERMOSTAT

1-18

3H6072320M

PUSH ROD

1-20

3H6072340M

BOLT, PIVOT

1-22

3H6072360M

PIVOT, ROCKER ARM

1-15

3KY079230M

COTTER

1-34

3AB074310M

BREATHER CHAMBER COVER

1-9

3R0074220M

O-RING

1-2

3R3072040M

SEAL, INT VALVE STEM

1-3

3R3072060M

SEAL, EXH VALVE STEM

1-6

9161F90675M

BOLT

1-7

9401E30600M

WASHER (10 MULTIPLE)

1-14

3GT079210M

RETAINER *{/* WHEN REPLACING 3AE079210M USE USE 3GT079210M AND 3KY079230M*/}*

1-16

3GR079050M

SEAT, VALVE SPRING

1-35

3AB074320M

BREATHER CHAMBER COVER GASKET

1-21

3AB072350M

ROCKER ARM

1-24

3ABB010210

CYLINDER HEAD COVER

1-26

9101030616M

BOLT (10 MULTIPLE)

1-29

3ABB010310

THERMOSTAT CAP

1-27

3C8663080M

WASHER (10 MULTIPLE)

1-30

3GTB010310

THERMOSTAT CAP

1-1

3GTB011002

CYLINDER CRANKCASE-NO LONGER AVAILABLE *{/*PART IS NO LONGER AVAILABLE*/}*

1-8

3R0710151M

FILLER CAP, ENGINE OIL

1-12

3V1072020M

EXHAUST VALVE

1-33

9101035630M

BOLT (10 MULTIPLE)

1-19

3AB072330M

PUSH ROD PLATE

1-36

9101E35616M

BOLT & WASHER (10 MULTIPLE)

1-5

9101E35635M

BOLT & WASHER (10 MULTIPLE)

1-38

970101103M

SPARK PLUG, NGK DCPR6E, (10 MULTIPLE)

1-4

345011110M

DOWEL PIN 6-12

1-31

3AB010320M

THERMOSTAT CAP GASKET

1-11

3AB072010M

INTAKE VALVE

1-17

3AB072310M

LIFTER

1-32

398069721M

CLAMP
