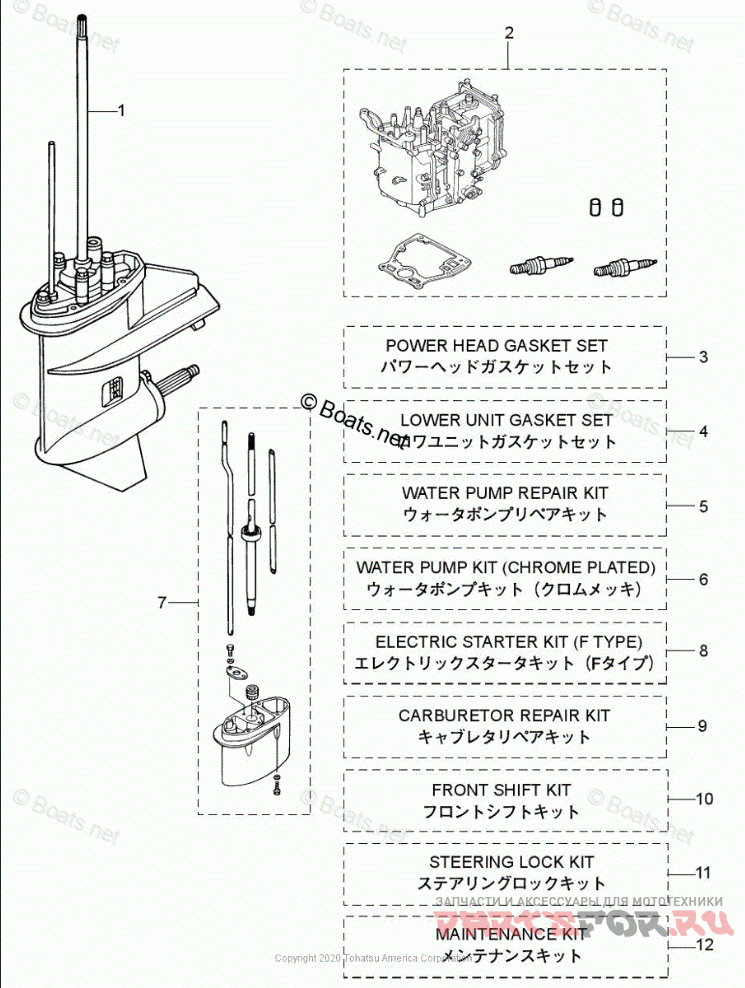

ASSEMBLY & KIT PARTS

Tohatsu MFS8B

Tohatsu
#oem кодцена
25-4
332660320M
O-RING
25-3
3V1010240M
GASKET, HEAD COVER
25-8
3Y1761450M
TERMINAL CAP
25-8
3Y0761450M
TERMINAL CAP
25-8
3V1760660M
FUSE WIRE
25-7
3V1643320M
STOPPER, BUSHING
25-12
3V1602170M
TRIM TAB
25-3
3V1076530M
GASKET, OIL PUMP
25-8
3V1069000M
ELECTRIC BRACKET
25-8
3V1062840M
STAY, TERMINAL HOLDER
25-9
3V1031930M
GASKET, DRAIN SCREW
25-9
3V1031820M
GASKET, CARBURETOR COVER
25-9
3V1031210M
GASKET, FLOAT CHAMBER
25-3
3V1023050M
GASKET, EXHAUST COVER
25-3
3V1021040M
GASKET, INTAKE MANIFOLD
25-3
3V1013030M
GASKET, ENGINE BASE
25-3
3V1010050M
GASKET, CYLINDER HEAD
25-10
3Y3661100M
SHIFT LEVER, F8/9.8A3-F25/30C (AMB)
25-3
3V1001210M
OIL SEAL
25-8
3T5069200M
MOUNT RUBBER
25-12
3R3074060M
WASHER (10 MULTIPLE)
25-3
3R3011440M
GASKET
25-12
3R3011440M
GASKET
25-10
3R0837150M
CABLE JOINT
25-8
3R0760640M
STAY, FUSE HOLDER
25-3
3H8070250M
OIL SEAL
25-10
3H6636191M
COLLAR, BRACKET
25-3
3H6074220M
O-RING
25-9
3C8031260M
FLOAT ARM PIN
25-9
3C8031250M
FLOAT
25-8
3B2761472M
STARTER CABLE
25-7
3B2600031M
BUSHING, DRIVE SHAFT HOUSING
25-10
3Y3636210M
GROMMET
25-10
3Y3661340M
ROD, SHIFT LEVER (AMB)
25-8
3AC761200M
BATTERY CABLE L=2500
25-4
3B2023122M
GASKET
25-10
3Y3675781M
SHIFT DECAL
25-11
3V1625100M
STEERING LOCK PLATE
25-11
3V1625001M
STEERING LOCK KIT (F8/9.8 EP/EPT/EFT) *{/*FITS 8/9.8A3 4-STR. REMOTE (EP / EPT) MODELS ONLY */}*
25-11
3Y3601080M
PRE-COATED BOLT 6-12
25-8
3V2763004M
ELECTRIC START KIT, 8/9.8A2,A3, B (F TYPE)
25-2
3V1B870908
SHORT BLOCK (8-9.8/4-ST)
25-3
3V1871210M
POWER HEAD GASKET SET
25-8
3V1760111M
BRACKET,STARTER MOTOR
25-8
3AA062811M
HOLDER, CABLE TERMINAL
25-4
3B2873215M
LOWER UNIT GASKET KIT 8/9.8B
25-6
3B2652390M
GUIDE PLATE, CHROME PLATED WATER PUMP
25-6
3B2652380M
LINER, CHROME PLATED WATER PUMP CASE
25-6
3B2652312M
WATER PUMP REPAIR KIT, CHROME, 8 HP
25-4
3B2610122M
GASKET, DRIVESHAFT HOUSING
25-12
369022301M
FUEL FILTER
25-10
3Y3671920M
CHOKE ROD
25-10
9516030800M
R-PIN (10 MULTIPLE)
25-11
3Z0613340M
WASHER, 8.5-34-3
25-8
9101E35610M
BOLT & WASHER (10 MULTIPLE)
25-8
9161E30832M
BOLT (10 MULTIPLE)- NO LONGER AVAILABLE *{/*PART IS NLA*/}*
25-9
9225036410M
SCREW
25-12
9514030310M
SPRING PIN (10 MULTIPLE)
25-12
9515030318M
SPLIT PIN (10 MULTIPLE)
25-8
3R0663080M
WASHER, 6-16-1.5
25-4
332600061M
GASKET (10 MULTIPLE)
25-7
3V1651200M
WATER PIPE "UL"
25-7
3V1660140M
CAM ROD UL
25-9
3V1871220M
CARBURETOR REPAIR KIT MFS8/9.8A-B
25-1
3V1Q873028
LOWER UNIT ASSY L (AMB)
25-1
3V1Q873018
LOWER UNIT ASSY S (AMB)
25-12
332600061M
GASKET (10 MULTIPLE)
25-3
3B2012150M
OIL SEAL
25-8
3AA761450M
TERMINAL CAP
25-4
345650150M
O-RING
25-12
3B2650211M
IMPELLER (8/9.8)
25-3
3V1020110M
GASKET, CARBURETOR
25-8
3H8760400M
STARTER SOLENOID
25-8
3H6760791M
COLLAR, 6.2-9-7.4
25-8
3B7063050M
MOUNT, RUBBER
25-7
3B2Q611102
EXTENSION HOUSING UL (AMB)
25-5
3B2873222M
WATER PUMP REPAIR KIT 8-9.8 HP
25-5
3B2650292M
GASKET
25-6
3B2650292M
GASKET
25-4
3B2650292M
GASKET
25-12
3B2650292M
GASKET
25-5
3B2650250M
GUIDE PLATE
25-12
3B2650250M
GUIDE PLATE
25-5
3B2650220M
KEY
25-12
3B2650220M
KEY
25-5
3B2650211M
IMPELLER (8/9.8)
25-9
3V1031471M
FLOAT VALVE
25-6
3B2650211M
IMPELLER (8/9.8)
25-5
3B2650201M
GASKET, WATER PUMP CASE LOWER
25-4
3B2650201M
GASKET, WATER PUMP CASE LOWER
25-5
3B2650182M
GASKET
25-4
3B2650182M
GASKET
25-6
3B2650182M
GASKET
25-12
3B2650182M
GASKET
25-12
3B2650110M
LINER PUMP CASE
25-5
3B2650110M
LINER PUMP CASE
25-10
3AA837190M
WASHER
25-4
369660211M
O-RING A
25-12
369602181M
ANODE, ZINC (ROUND)
25-4
369601110M
OIL SEAL, PROPELLER SHAFT
25-3
346010320M
GASKET, THERMOSTAT *{/*For 40C serial 94363 and below has different gasket. That gasket is not available. Have to replace cylinder head and thermostat cap to newer style.*/}*
25-9
3V1031160M
O-RING
25-10
3V1Q804040
FRONT SHIFT KIT, F8A,A2,A3/9.8A,A2,A3
25-8
3AA760650M
RECTIFIER
25-8
3V1761480M
SPIRAL TUBE PROTECTOR
25-8
3AA760260M
MAIN SWITCH
25-8
3AA760100M
STARTER MOTOR (S106-12B)
25-10
3AA661351M
SHAFT, SHIFT LEVER (AMB)
25-8
3AA069021M
COVER
25-8
3AA060910M
FLYWHEEL CUP
25-8
3AA060230M
ALTERNATOR
25-8
398760830M
ACTUATOR, NEUTRAL SWITCH
25-8
398760801M
NEUTRAL SWITCH ASS'Y
25-11
346621270M
BRACKET CAP
25-8
174350120M
COLLAR, 6-8-6
25-9
9225036412M
SCREW
25-5
9161E30650M
BOLT
25-7
9101E35612M
BOLT & WASHER (10 MULTIPLE)
25-8
9101E35612M
BOLT & WASHER (10 MULTIPLE)
25-3
3V1020120M
O-RING
25-7
3V2600010M
BOLT, 6-35 PRECOATED
25-9
9217030406M
SCREW (10 MULTIPLE)
25-10
3Y3Q674800
BRACKET, SHIFT LEVER (AMB)
25-8
9101030620M
BOLT (10 MULTIPLE)
25-10
9101030625M
BOLT (10 MULTIPLE)
25-8
9101035630M
BOLT (10 MULTIPLE)
25-8
9101E35616M
BOLT & WASHER (10 MULTIPLE)
25-10
9101E35625M
BOLT & WASHER (10 MULTIPLE)
25-10
9301030500M
NUT (10 MULTIPLE)
25-3
3R0074220M
O-RING
25-10
9301030600M
NUT (10 MULTIPLE)
25-5
9401030600M
WASHER (10 MULTIPLE)
25-8
9401030800M
WASHER (10 MULTIPLE)
25-12
970101103M
SPARK PLUG, NGK DCPR6E, (10 MULTIPLE)
25-4
309601110M
OIL SEAL
25-10
346671150M
WASHER
25-11
3Y4601080M
PRE-COATED BOLT 8-20
