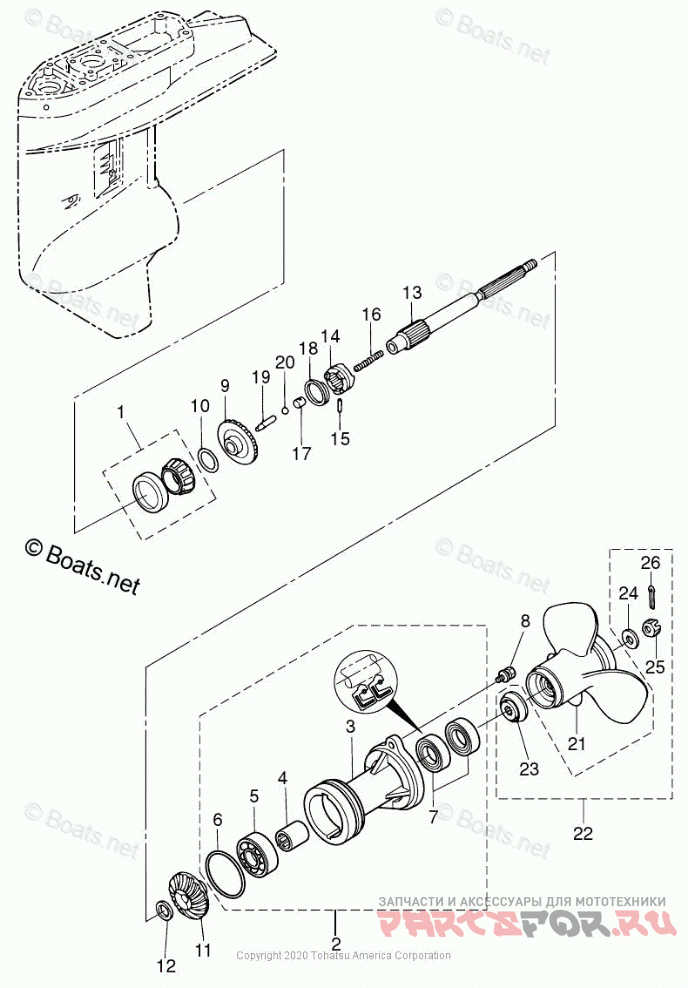

O-RING

SPRING,CLUTCH

PROP SHAFT HOUSING

PROP HDWR KIT F25/30C

THRUST HOLDER MFS25/30C

369640230M *{/*MAKES SHIM KIT 369640230M*/}*

369640230M *{/*MAKES SHIM KIT 369640230M*/}*

SST BALL

BEVEL GEAR C (REVERSE)

BEVEL GEAR A (FORWARD)

CLUTCH, F25/30B

OIL SEAL 18-28-5 *{/*REQUIRES (2) ON 25/30 HP PROP SHAFT*/}*

SNAP

CLUTCH PIN

WASHER

WASHER, PROP NUT (9.9-30)

BOLT

NEEDLE BEARING

BEARING

SPLIT PIN (10 MULTIPLE)

PROPELLER DS 11 (9.9 DIA X 11 PITCH), BLACK

PROPELLER DS 10 (9.9 DIA X 10 PITCH), BLACK

PROPELLER DS 9 (9.9 DIA X 9 PITCH) BLACK

PUSH ROD,CLUTCH-25C2/30A3/40/50D *{/*FITS 25C2, #40911~ AND 30A3, #30720~*/}*

SPRING HOLDER, CLUTCH

PROP SHAFT HOUSING ASSY

PROP 25 & 30 HP (9.9 DIA. X 14.2 PITCH)- NO LONGER AVAILABLE *{/* NO LONGER AVAILABLE*/}*

PROP SHAFT HOUSING

PROP 25&30 HP (10.2 DIA. X 8.3 PITCH)

PROPELLER SHAFT (10 SPLINE) *{/*New longer shaft will only fit 25C2-40911~ and 30A3-30720~- The front will have to be shortened to fit older cases*/}*

PROP NUT(9.9-30) (10mmx1.50 pitch)

BEARING, TAPERED ROLLER 30205

PROPELLER SHAFT HOUSING
