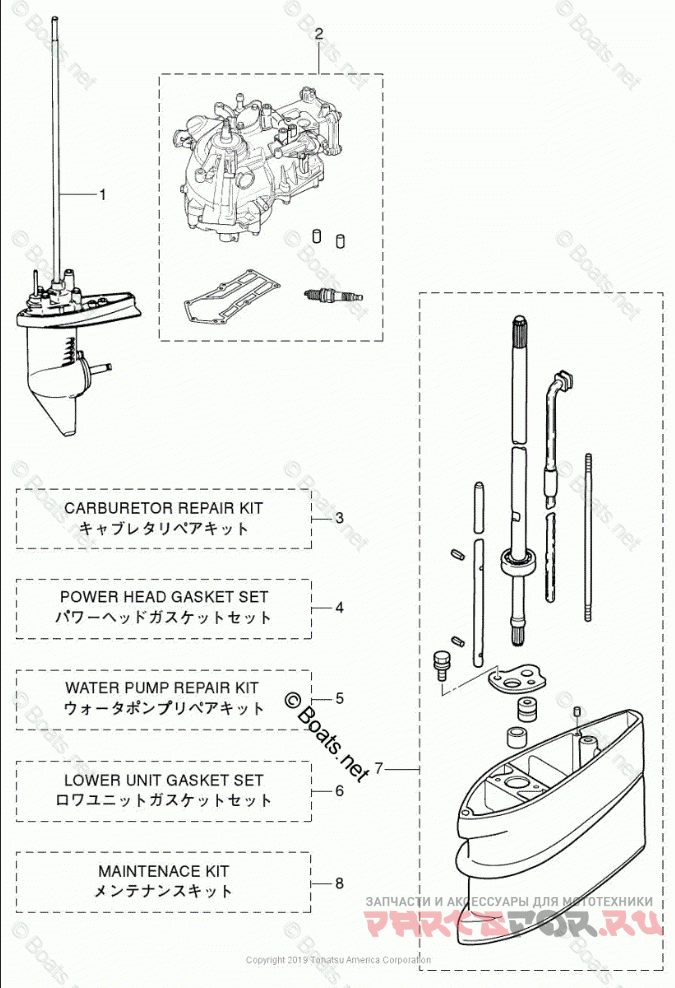

ASSEMBLY & KIT PARTS

Tohatsu MFS2.5B

Tohatsu
#oem кодцена
17-8
309641261M
Деталь SHEAR PIN-PACKAGE OF 5-(5/32" X 1" : 4mm X 24mm)
17-6
3F0650290M
Деталь GASKET, GUIDE PLATE
17-3
3GT871221M
Деталь CARBURETOR REPAIR KIT F2/2.5/3/5B *{/*for square bowl carb*/}*
17-3
3GT032310M
Деталь FLOAT, F3.5B/2.5B/2B
17-6
3F0873210M
Деталь LOWER UNIT GASKET SET
17-7
3F0660130M
Деталь CAM ROD L
17-8
3F0650290M
Деталь GASKET, GUIDE PLATE
17-5
3F0650290M
Деталь GASKET, GUIDE PLATE
17-6
3F0650200M
Деталь GASKET, WATER PUMP-3.5B
17-3
3H6032220M
Деталь O-RING, FLOAT CHAMBER
17-8
3F0650180M
Деталь GASKET, WATER PUMP-3.5B
17-5
3F0650180M
Деталь GASKET, WATER PUMP-3.5B
17-6
3F0650180M
Деталь GASKET, WATER PUMP-3.5B
17-8
3F0650110M
Деталь LINER,WP-3.5B
17-5
3F0650110M
Деталь LINER,WP-3.5B
17-7
3F0643020M
Деталь DRIVE SHAFT ASS'Y L
17-7
3GU600010M
Деталь BOLT, 6-30 PRECOATED
17-3
3H6032320M
Деталь ARM PIN, FLOAT
17-6
3F0602230M
Деталь OIL SEAL
17-3
9225036412M
Деталь SCREW
17-2
3GUB870900
Деталь ENGINE SHORT BLOCK, 2.5/3.5B
17-6
332600061M
Деталь GASKET (10 MULTIPLE)
17-8
332600061M
Деталь GASKET (10 MULTIPLE)
17-8
9515030435M
Деталь SPLIT PIN (10 MULTIPLE)
17-7
9514070308M
Деталь SPRING PIN (10 MULTIPLE)
17-7
9401E30600M
Деталь WASHER (10 MULTIPLE)
17-7
9101E35612M
Деталь BOLT & WASHER (10 MULTIPLE)
17-3
3H6032400M
Деталь FLOAT VALVE
17-4
3V1020120M
Деталь O-RING
17-4
3R0074220M
Деталь O-RING
17-8
3H6074060M
Деталь WASHER
17-3
3H6032930M
Деталь O-RING, DRAIN SCREW
17-4
3H6032930M
Деталь O-RING, DRAIN SCREW
17-3
3H6032440M
Деталь CLIP
17-7
3F0611011M
Деталь STUD BOLT
17-1
3BMQ873023
Деталь LOWER UNIT ASSY "L", F2.5A/3.5A/B
17-8
338602182M
Деталь ANODE
17-6
369660211M
Деталь O-RING A
17-7
9301030600M
Деталь NUT (10 MULTIPLE)
17-4
3H6020110M
Деталь GASKET, CARBURETOR
17-3
3H6020110M
Деталь GASKET, CARBURETOR
17-7
3ABQ611000
Деталь EXTENSION HOUSING "L", F2.5AB/3.5AB
17-4
3AB871210M
Деталь POWER HEAD GASKET SET
17-4
3AB010241M
Деталь CYLINDER HEAD COVER GASKET
17-8
369650220M
Деталь KEY
17-7
172360080M
Деталь GROMMET
17-6
369650220M
Деталь KEY
17-5
369650220M
Деталь KEY
17-8
369650211M
Деталь IMPELLER NS3.5B/NS5B/4-6HP 4STR
17-6
369650211M
Деталь IMPELLER NS3.5B/NS5B/4-6HP 4STR
17-5
369650211M
Деталь IMPELLER NS3.5B/NS5B/4-6HP 4STR
17-6
345650150M
Деталь O-RING
17-8
970101103M
Деталь SPARK PLUG, NGK DCPR6E, (10 MULTIPLE)
17-6
301660230M
Деталь O-RING
17-1
3BMQ873013
Деталь LOWER UNIT ASSY "S", F2.5A/3.5A/B
17-7
3AB600030M
Деталь DRIVE SHAFT BUSHING
17-5
3AB873220M
Деталь WATER PUMP REPAIR KIT
17-7
3AB651920M
Деталь WATER PIPE "L", F2.5A/3.5A
17-5
3AB650250M
Деталь WATER PUMP GUIDE PLATE
17-8
3AB650250M
Деталь WATER PUMP GUIDE PLATE
17-7
3AB643320M
Деталь DRIVE SHAFT BUSHING STOPPER
17-4
3AB610120M
Деталь DRIVE SHAFT HOUSING GASKET
17-4
3AB074320M
Деталь BREATHER CHAMBER COVER GASKET
17-6
309601110M
Деталь OIL SEAL
17-4
3AB074020M
Деталь OIL PAN GASKET
17-4
3AB021040M
Деталь INTAKE MANIFOLD GASKET
17-4
3AB012150M
Деталь OIL SEAL
17-7
3AB011110M
Деталь DOWEL PIN, 6-12
17-4
3AB010320M
Деталь THERMOSTAT CAP GASKET
17-4
3AB001210M
Деталь OIL SEAL
17-7
3ABQ873123
Деталь EXTENSION HOUSING KIT "L"
