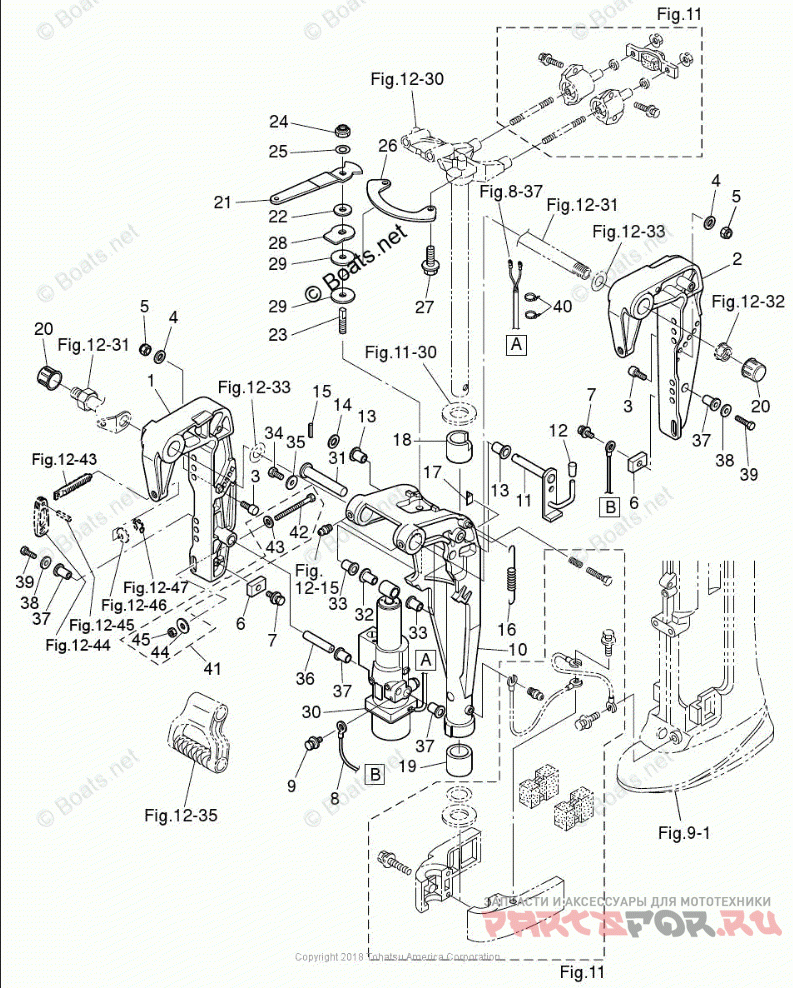

BRACKET (EFT & EPT MODEL) для лодочных моторов Tohatsu MFS9.8B (2018)

BRACKET (EFT & EPT MODEL)

Tohatsu MFS9.8B

oem код

название

цена

13-38

307621161

WASHER

13-34

9101030612

BOLT (10 MULTIPLE)

13-37

3Z0770760

BUSHING, 13-16-31

13-32

3Z0770760

BUSHING, 13-16-31

13-36

3Z0771011

CYLINDER PIN (LOWER)

13-3

3Z0771150

TRIM LOCK PIN

13-40

3Z0843980

BAND LEAD WIRE 203-LOCAL PURCHASE

13-30

3Z0Q771511

POWER TRIM & TILT ASSY. (F8A3/9.8A3)

13-1

3Z0Q772112

CLAMP BRACKET, (PTT-RIGHT) STARBOARD

13-2

3Z0Q772120

CLAMP BRACKET, (PTT-LEFT) PORT

13-39

9101030820

BOLT

13-11

3Z0624761

TILT STOPPER

13-9

9101E35612

BOLT & WASHER (10 MULTIPLE)

13-27

9101E35616

BOLT & WASHER (10 MULTIPLE)

13-7

9101E35616

BOLT & WASHER (10 MULTIPLE)

13-42

9161E30885

BOLT

13-24

9304030800

NYLON NUT (10 MULTIPLE)

13-45

9304030800

NYLON NUT (10 MULTIPLE)

13-43

9401030800

WASHER (10 MULTIPLE)

13-25

9401030800

WASHER (10 MULTIPLE)

13-14

9401E31000

WASHER (10 MULTIPLE)

13-17

3Z0630350

FRICTION PIECE

13-18

3Z0624170

BUSHING, 24-30-30

13-35

345051221

WASHER, RACHET

13-31

3KY770710

CYLINDER PIN (UPPER)

13-20

346621270

BRACKET CAP

13-19

350624170

BUSHING

13-13

353632070

COLLAR

13-12

369624331

GRIP

13-8

398623961

GROUND WIRE

13-21

3AA624410

HANDLE, CO-PILOT

13-26

3AA624470

PLATE

13-6

3H6602180

ANODE, ZINC (SQUARE) *{/* For 5B models prior to sn 16748, use 369602181M (round anode) */}*

13-4

3P0662330

WASHER (10 MULTIPLE)

13-44

3Z0613340

WASHER, 8.5-34-3

13-16

3R0624730

SPRING, TILT STOPPER

13-33

3R0770760

BUSHING, 13-17-19.5

13-22

3R3624430

WASHER

13-23

3R3624450

BOLT, CO-PILOT

13-28

3R3624481

WASHER, CO-PILOT

13-29

3R3624490

DISK, CO-PILOT

13-10

3V1Q772080

SWIVEL BRACKET (PTT)

13-41

3V2721200

RIGGING BOLT SET EFT/EPT

13-5

3V5624420

NYLON NUT, CO-PILOT (8MM)

13-15

9514033516

SPRING PIN (10 MULTIPLE)
