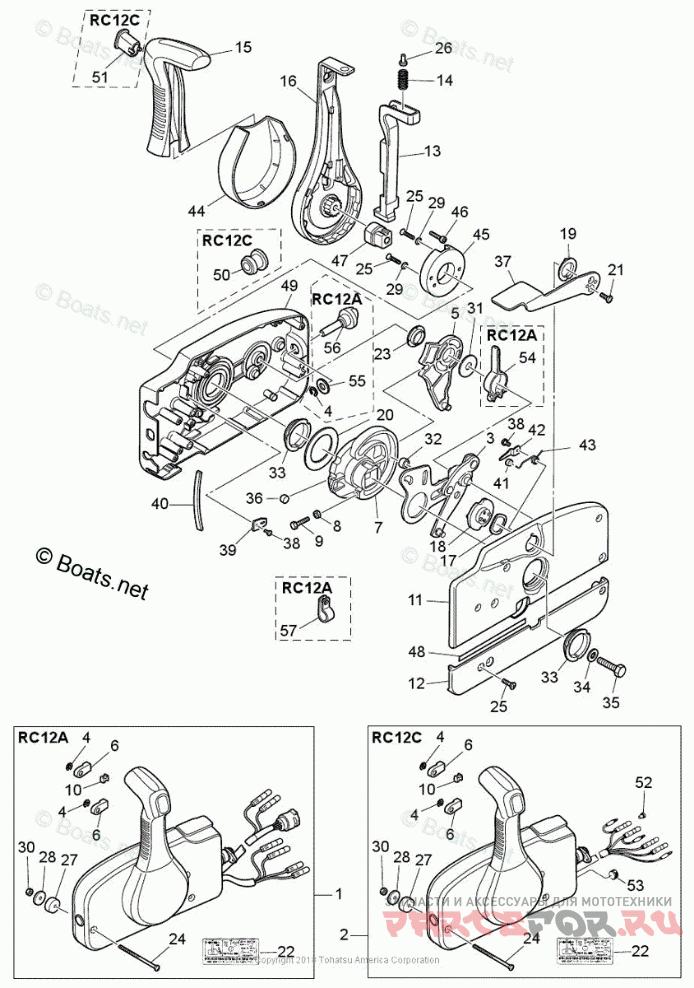

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MFS8B

Tohatsu
#oem кодцена
21-28
353843710
WASHER
21-41
3A3844240
ROLLER, FREE ACCELERATOR
21-2
3U2B843300
R C BOX (RC12A) MFS8-30C, M40D2-90A W/PTT/ELECTRIC START(2018)
21-4
9453030600
E-RING (10 MULTIPLE)
21-34
9401030800
WASHER (10 MULTIPLE)
21-30
9301030600
NUT (10 MULTIPLE)
21-8
9301030500
NUT (10 MULTIPLE)
21-21
9216030512
SCREW (10 MULTIPLE)
21-38
9215030406
SCREW (10 MULTIPLE)
21-9
9101030525
BOLT (10 MULTIPLE)
21-52
3T5760370
PLUG ,CABLE TERMINAL
21-19
3A3844350
BUSHING
21-23
3A3844320
BUSHING B
21-54
3A3844280
ARM
21-42
3A3844260
RETAINER
21-43
3A3844250
SPRING, FREE ACCELERATOR
21-39
3A3844230
RETAINER
21-36
353843880
ROLLER, THROTTLE DRUM
21-17
3A3843680
WAVE WASHER
21-55
353843940
WASHER
21-53
361844150
GROMMET B
21-6
3A3833142
TERMINAL EYE
21-40
3A3843070
SPRING
21-7
3A3843642
DRIVE GEAR
21-3
3A3843651
THROTTLE ARM
21-27
3A3843740
SPACER
21-20
3A3844220
THRUST PLATE
21-10
3A3843760
GROMMET
21-5
3A3843810
SHIFT GEAR ASSY
21-31
3A3843830
WASHER
21-18
3A3843910
DRUM, FREE ACCELERATOR
21-14
3A3844030
SPRING
21-32
3A3844210
ROLLER
21-1
3U2B843500
RC BOX, RC12C (MFS8/9.8),W/ ELECTRIC START W/O PTT (2018)
