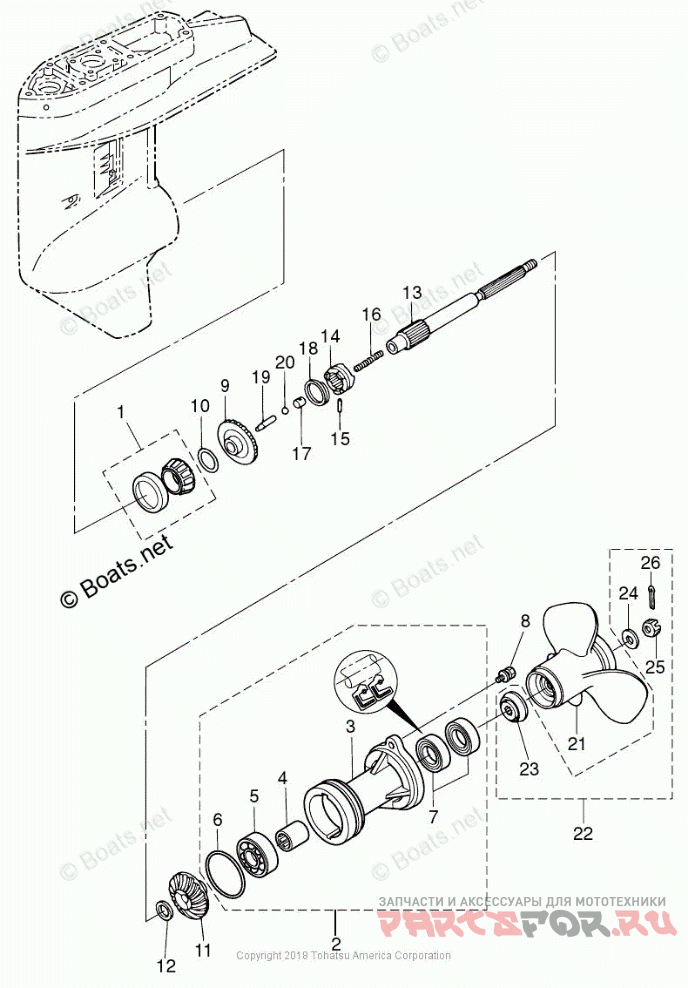

O-RING

PROP SHAFT HOUSING ASSY

BEARING

SPLIT PIN (10 MULTIPLE)

BOLT

BEVEL GEAR C (REVERSE)

BEVEL GEAR A (FORWARD)

PUSH ROD,CLUTCH-25C2/30A3/40/50D *{/*FITS 25C2, #40911~ AND 30A3, #30720~*/}*

CLUTCH, F25/30B

OIL SEAL 18-28-5 *{/*REQUIRES (2) ON 25/30 HP PROP SHAFT*/}*

SHIM KIT

SPRING HOLDER, CLUTCH

PROP 25 & 30 HP (9.9 DIA. X 14.2 PITCH)

SPRING,CLUTCH

PROP SHAFT HOUSING

PROP 25&30 HP (10.2 DIA. X 8.3 PITCH)

SNAP

CLUTCH PIN

PROPELLER SHAFT (10 SPLINE) *{/*New longer shaft will only fit 25C2-40911~ and 30A3-30720~- The front will have to be shortened to fit older cases*/}*

WASHER, PROP NUT (9.9-30)

PROP NUT(9.9-30)

WASHER

BEARING, TAPERED ROLLER 30205

NEEDLE BEARING

SST BALL
