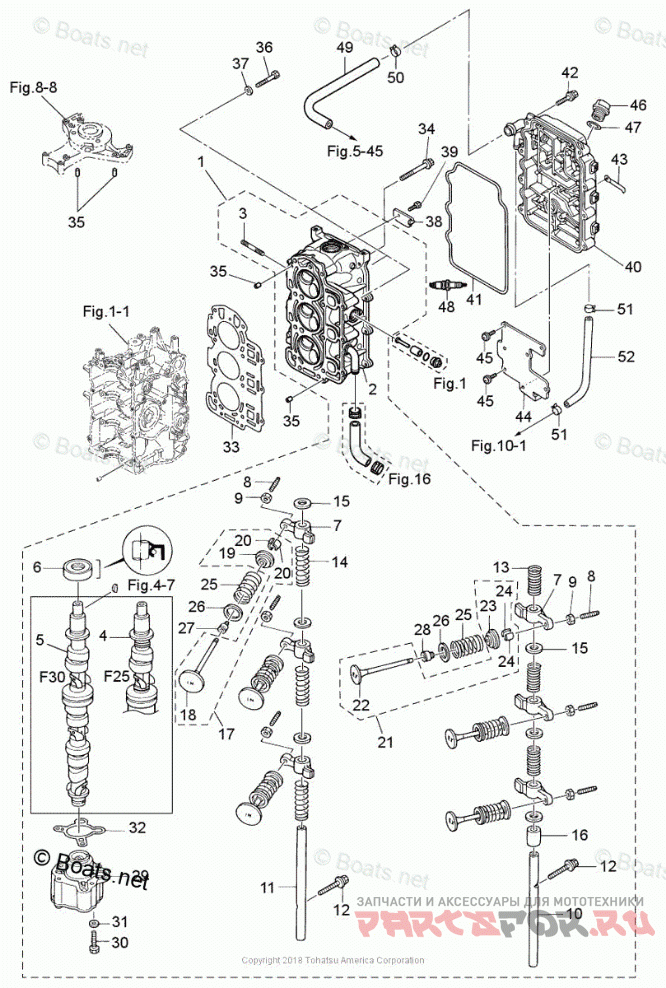

CYLINDER HEAD & OIL PUMP для лодочных моторов Tohatsu MFS30C (2018)

CYLINDER HEAD & OIL PUMP

Tohatsu MFS30C

oem код

название

цена

3-35

345011110

DOWEL PIN 6-12

3-43

3T4069721

CLAMP

3-8

3R0072380

SCREW

3-47

3R0074220

O-RING

3-44

3R0074310

PLATE, BREATHER

3-32

3R0076390

O-RING, OIL PUMP OUTER

3-51

3R0077371

CLIP @15.5

3-50

3R0077371

CLIP @15.5

3-46

3R0710151

FILLER CAP, ENGINE OIL

3-27

3R3072040

SEAL, INT VALVE STEM

3-28

3R3072060

SEAL, EXH VALVE STEM

3-15

3R3072270

WASHER

3-30

9101140645

BOLT (10 MULTIPLE)

3-41

3R0010240

GASKET, HEAD COVER

3-39

9101210612

BOLT (10 MULTIPLE)

3-12

9101210635

BOLT (10 MULTIPLE)

3-42

9101E30630

BOLT (10 MULTIPLE)

3-3

9153F40635

STUD

3-36

9161140653

BOLT (10 MULTIPLE)

3-45

9215210508

SCREW

3-31

9401E30600

WASHER (10 MULTIPLE)

3-37

9401E30600

WASHER (10 MULTIPLE)

3-48

970101103

SPARK PLUG, NGK DCPR6E, (SOLD INDIVIDUALLY)

3-52

98AM1201000

RUBBER PIPE

3-38

3R0010940

PLATE, CYLINDER HEAD

3-16

3H8072390

COLLAR, 13.1-15.9-22.5

3-5

3AC070101

CAMSHAFT

3-18

3AE079010

INTAKE VALVE

3-49

3AC074350

BREATHER HOSE

3-40

3ACB010200

CYLINDER HEAD COVER F25/30B

3-33

3AD010051

CYLINDER HEAD GASKET (SEE NOTE) *{/*REQUIRES THREEBOND 1207B SEALANT TO INSTALL PART #999981207B*/}*

3-4

3AD070101

CAMSHAFT

3-25

3AE072030

VALVE SPRING

3-10

3AE072200

SHAFT, ROCKER ARM (EXHAUST)

3-11

3AE072260

SHAFT, ROCKER ARM (INTAKE)

3-29

3AE076000

OIL PUMP

3-17

3AE078950

INTAKE VALVE

3-21

3AE078960

EXHAUST VALVE

3-22

3AE079020

EXHAUST VALVE

3-9

3H8072370

NUT

3-19

3AE079210

RETAINER

3-23

3AE079210

RETAINER

3-20

3AE079230

COTTER

3-24

3AE079230

COTTER

3-7

3AE079351

ROCKER ARM

3-26

3H6072050

SEAT, VALVE SPRING

3-34

3H8010130

BOLT, CYLINDER HEAD

3-6

3H8070250

OIL SEAL

3-13

3H8072250

SPRING

3-14

3H8072290

SPRING

3-1

3NVB010001

CYLINDER HEAD COMPLETE, F30C
