OIL PAN для лодочных моторов Tohatsu MFS2.5B (2018)

Москва и регионы России

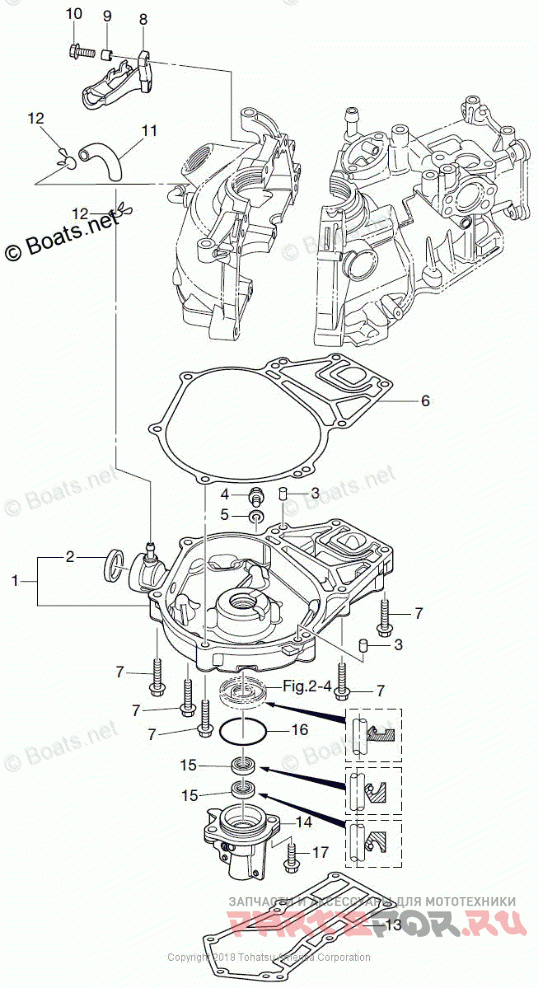

OIL PAN

Tohatsu MFS2.5B

OIL PAN

#

oem код

название

цена

3-12

CLIP, FUEL PIPE

CLIP, FUEL PIPE

3-5

WASHER

WASHER

3-7

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

3-10

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

3-17

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

3-16

O-RING

O-RING

3-9

COLLAR, 6.2-9-7.4

COLLAR, 6.2-9-7.4

3-4

BOLT, DRAIN

BOLT, DRAIN

3-8

BRACKET

BRACKET

3-3

DOWEL PIN 6-12

DOWEL PIN 6-12

3-1

OIL PAN ASSY, F2.5AB/3.5AB

OIL PAN ASSY, F2.5AB/3.5AB

3-13

DRIVE SHAFT HOUSING GASKET

DRIVE SHAFT HOUSING GASKET

3-2

OIL LEVEL GAUGE

OIL LEVEL GAUGE

3-6

OIL PAN GASKET

OIL PAN GASKET

3-15

OIL SEAL

OIL SEAL

3-14

CRANK CASE HEAD

CRANK CASE HEAD

3-11

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)

FUEL PIPE 5MM (3/16") (1 EA.=1 METER)
